TORANEKO.Mk3 panel
About the TORANEKO.Mk3 panel PCB
TORANEKO.Mk3 panel is an open source PCB design by Tokoro0917, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 56.3 mm, with 18 components from 3 distinct parts.
Other key parts include the AS5047P-ATSM and Encord. By type, the board carries 12 ICs and 6 capacitors.
From the project

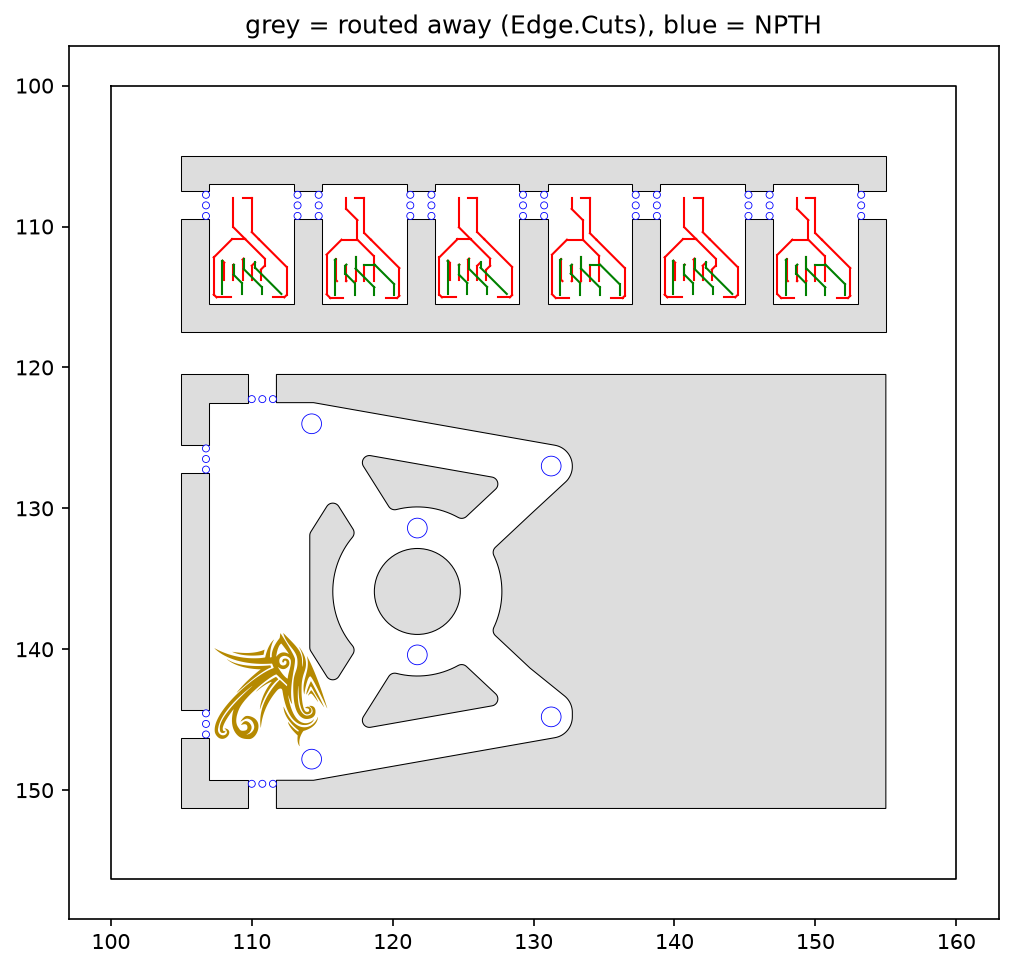

エンコーダ基板（6 × 8.5 × 0.6mm）6 枚（IC5 側 ×3、IC7 側 ×3）と、上部固定基板（25.75 × 26.8 × 0.6mm、銅箔なし）1 枚を並べた発注用パネル。メイン基板とは別の注文で出す。
エンコーダ基板（6 × 8.5 × 0.6mm）6 枚（IC5 側 ×3、IC7 側 ×3）と、上部固定基板（25.75 × 26.8 × 0.6mm、銅箔なし）1 枚を並べた発注用パネル。メイン基板とは別の注文で出す。
- ミシン目の穴から銅箔までは 0.8mm 以上 - パネル内の各コピーは別のネット名（2, 3 付き）にしてあるので、DRC で「未接続」は出ない
- DXF（y 上向き）を KiCad（y 下向き）に変換しているので、パネル上では DXF を上下反転した向きになる。銅箔のない板なので、裏返せば同じ形 - ロゴは 8mm と小さいため、線の 1 割ほどがシルクの最小線幅（0.15mm）より細い。細い先端や線の間の隙間は、印刷でつぶれたり欠けたりすることがある - 左辺のタブの跡（ミシン目のバリ）が組み付けに当たる場合は、やすりで落とす
Main components on the TORANEKO.Mk3 panel
TORANEKO.Mk3 panel bill of materials (BOM)
18 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | AS5047P-ATSM | SOP65P640X120-14N | IC5, IC5_2, IC5_3, IC7, IC7_2, IC7_3 |
| 6 | Encord | TN_ENC_Edge | U3, U3_2, U3_3, U5, U5_2, U5_3 |
| 6 | 0.1u | C_0402_1005Metric | C26, C26_2, C26_3, C27, C27_2, C27_3 |
TORANEKO.Mk3 panel design files
The KiCad project lives in the Tokoro0917/ToraNeko.Mk3 repository on GitHub; these links point at the commit this page was built from.
TORANEKO.Mk3 panel: common questions
How big is the TORANEKO.Mk3 panel PCB?
The TORANEKO.Mk3 panel measures 60 × 56.3 mm, has 2 copper layers and is 0.6 mm thick.
How many components are on the TORANEKO.Mk3 panel?
18 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TORANEKO.Mk3 panel design files?
From the Tokoro0917/ToraNeko.Mk3 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the TORANEKO.Mk3 panel design in my own project?
Yes, under the terms of its MIT license, which Tokoro0917 chose for the repository.
