140bpf PCB layout, top view — open source board by tomswartz07

About the 140bpf PCB

140bpf is an open source PCB design by tomswartz07, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 41.9 × 12.7 mm, with 3 components from 3 distinct parts.

Other key parts include the RBP-140+. By type, the board carries 2 connectors and 1 IC.

It belongs with the rf & radio designs in this gallery.

From the project

KiCAD Project for a 140MHz Band Pass Filter

This repository contains the files associated with the creation of a Band-Pass Filter ideal for NOAA APT Satellite and UHF Amateur Radio reception.

The board performs extremely closely to the manufacturer's specifications.

The 140-BPF+ datasheet can be reviewed above, but the analysis has been independently validated with the following results:

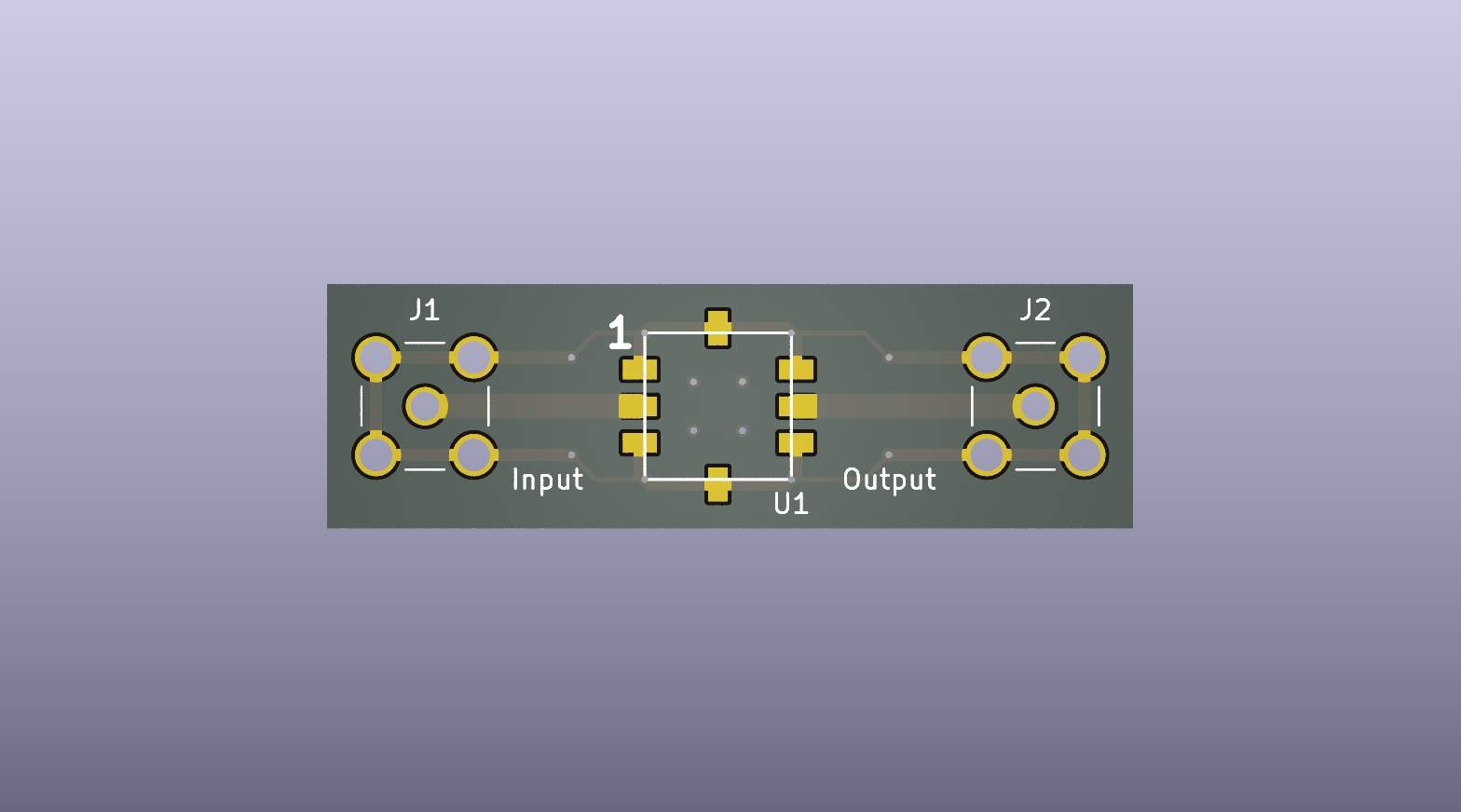

140bpf, from the project README
From the project README

Main components on the 140bpf

RBP-140+

140bpf bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
RBP-140+
U1
1
Input
J1
1
Output
J2

140bpf design files

The KiCad project lives in the tomswartz07/140bpf-kicad repository on GitHub; these links point at the commit this page was built from.

140bpf: common questions

How big is the 140bpf PCB?

The 140bpf measures 41.9 × 12.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 140bpf?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the 140bpf design files?

From the tomswartz07/140bpf-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 140bpf design in my own project?

Yes, under the terms of its GPL-3.0 license, which tomswartz07 chose for the repository.
