FLT/ART/CU-1 ROM reader

trwgQ26xxx·FLT_module_reader·PCB/ROM_reader.kicad_pcb

FLT/ART/CU-1 ROM reader PCB layout, top view — open source AVR/Arduino board by trwgQ26xxx

About the FLT/ART/CU-1 ROM reader PCB

FLT/ART/CU-1 ROM reader is an open source AVR/Arduino PCB design by trwgQ26xxx, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 94 × 57.5 mm, with 44 components from 21 distinct parts.

Its main chip is the ATmega128A-A, from the AVR/Arduino family. Other key parts include the CH340G. By type, the board carries 16 capacitors, 14 resistors, 4 connectors, 4 diodes, 2 ICs and 2 crystals.

From the project

Fiat Lancia Tester modules reader for ROMs preservation

Dedicated module reader for FLT\ART\CU-1 ROMs archiving.

Contact : trwgQ {leechers not welcome} 26 {remove spaces} xxx {remove spaces} {at} proton {dot} me

I do not consent to the use of all or part of the project for commercial purposes!

Nie wyrażam zgody na wykorzystanie całości bądź części projektu w celach zarobkowych!

Shield: [![CC BY-NC-SA 4.0][cc-by-nc-sa-shield]][cc-by-nc-sa]

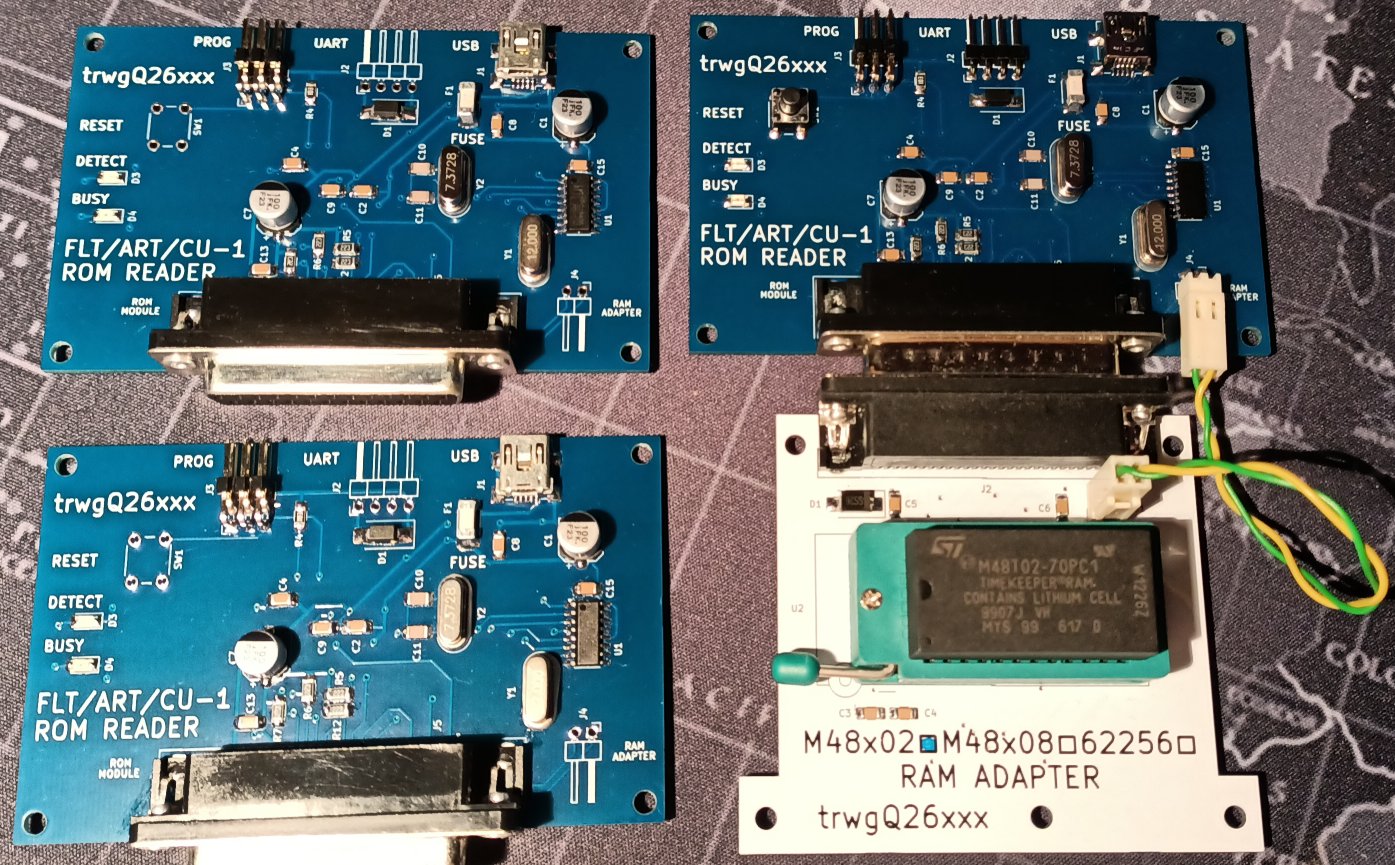

FLT/ART/CU-1 ROM reader, from the project README — From the project README

Main components on the FLT/ART/CU-1 ROM reader

ATmega128A-A CH340G

FLT/ART/CU-1 ROM reader bill of materials (BOM)

44 components, 21 distinct parts.

Qty	Part	Footprint	Refs
1	ATmega128A-A	TQFP-64_14x14mm_P0.8mm	U1
1	CH340G	SOIC-16_3.9x9.9mm_P1.27mm	U2
1	7.3728MHz	Crystal_HC49-4H_Vertical	Y1
1	12MHz	Crystal_HC49-4H_Vertical	Y2
1	RAM ADAPTER EXT	PinHeader_1x02_P2.54mm_Horizontal	J2
1	ISP	PinHeader_2x03_P2.54mm_Horizontal	J3
1	TTL_UART	PinHeader_1x04_P2.54mm_Horizontal	J4
1	USB C SOCKET	USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal	J5
1	0.5A	Fuse_2512_6332Metric_Pad1.52x3.35mm_HandSolder	F1
1	RST	SW_PUSH_6mm	SW1
1	4148	D_SMA_Handsoldering	D1
1	Schottky	D_SMB_Handsoldering	D2
1	DETECT	LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D3
1	BUSY	LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D4
2	100u	CP_Elec_6.3x7.7	C1, C4
10	100n	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C2, C3, C5, C8, C9, C10, C11, C12 +2
4	22p	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C6, C7, C14, C15
2	10k	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R1, R10
8	22k	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R2, R3, R4, R5, R6, R7, R8, R9
2	2k2	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R11, R12

Show 1 more

Qty	Part	Footprint	Refs
2	5k1	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R13, R14

FLT/ART/CU-1 ROM reader design files

The KiCad project lives in the trwgQ26xxx/FLT_module_reader repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/ROM_reader.kicad_pcb
SchematicPCB/ROM_reader.kicad_sch

FLT/ART/CU-1 ROM reader: common questions

What microcontroller does the FLT/ART/CU-1 ROM reader use?

The FLT/ART/CU-1 ROM reader is built around the ATmega128A-A, from the AVR/Arduino family.

How big is the FLT/ART/CU-1 ROM reader PCB?

The FLT/ART/CU-1 ROM reader measures 94 × 57.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FLT/ART/CU-1 ROM reader?

44 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the FLT/ART/CU-1 ROM reader design files?

From the trwgQ26xxx/FLT_module_reader repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FLT/ART/CU-1 ROM reader design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the FLT/ART/CU-1 ROM reader without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
