IEC-62056-21-Optical-Probe
About the IEC-62056-21-Optical-Probe PCB
IEC-62056-21-Optical-Probe is an open source PCB design by twam, published on GitHub. It is a 2-layer board measuring 26.8 × 26.8 mm, with 28 components from 20 distinct parts.
Other key parts include the CP2102N-AXX-XQFN20 and 74LVC2G17. By type, the board carries 10 resistors, 7 capacitors, 3 transistors, 3 jumpers, 2 ICs and 2 diodes.
From the project
Optical-Probe for reading out power meters supporting IEC 62056-21 via USB
Optical probe for reading out power meters supporting the IEC 62056-21 standard via USB.
Infrared part is based on https://wiki.volkszaehler.org/hardware/controllers/ir-schreib-lesekopf-ttl-ausgang.

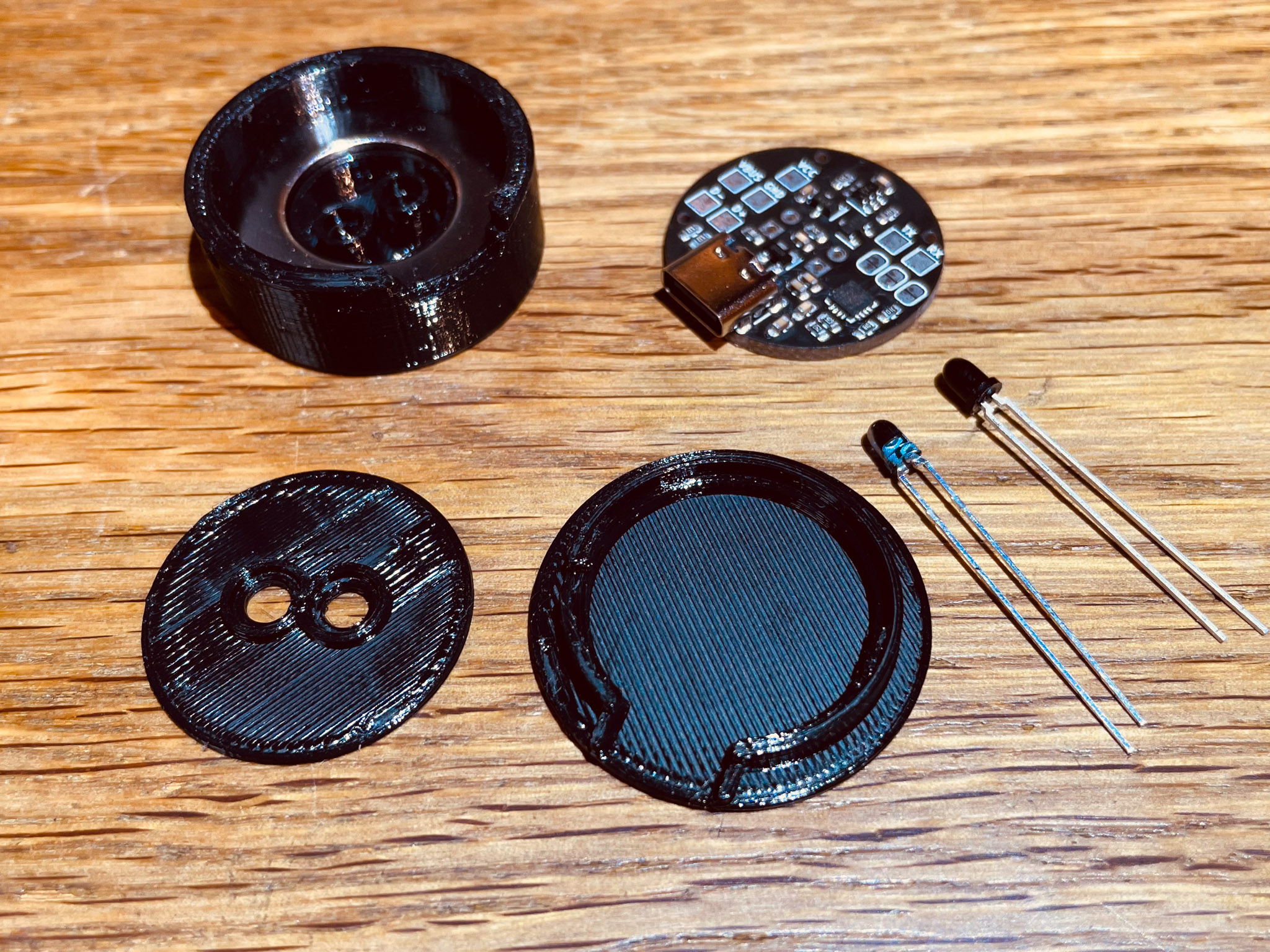

For the case a ring magnet with Ø 26,75/16 mm and 5 mm height is required, e.g. this one.
PCBs can be ordered fully-assembled (besides the IR-LED and Photodiode) from JLCPCB. Required files are IEC-62056-21-Optical-Probecpljlc.csv, IEC-62056-21-Optical-Probebomjlc.csv and IEC-62056-21-Optical-Probe.zip.
Main components on the IEC-62056-21-Optical-Probe
IEC-62056-21-Optical-Probe bill of materials (BOM)
28 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CP2102N-AXX-XQFN20 CP2102N-Axx-xQFN20 | SiliconLabs_QFN-20-1EP_3x3mm_P0.5mm_EP1.8x1.8mm | U2 |
| 1 | 74LVC2G17 | SC-74-6_1.5x2.9mm_P0.95mm | U3 |
| 1 | S8550 | SOT-23 | Q2 |
| 1 | SFH309FA-4 | LED_D3.0mm_Clear | Q3 |
| 1 | S8050 | SOT-23 | Q4 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_XKB_U262-16XN-4BVC11 | J1 |
| 1 | RX | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP1 |
| 1 | TX | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP2 |
| 1 | PWR | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP3 |
| 1 | SP0503BAHT | SOT-143 | D1 |
| 1 | SFH487-2 | LED_D3.0mm_IRBlack | D5 |
| 5 | 100N/50V 100n/50V | C_0603_1608Metric | C1, C2, C3, C5, C6 |
| 2 | 4U7/16V 4u7/16V | C_0603_1608Metric | C4, C7 |
| 2 | 5K1 5k1 | R_0603_1608Metric | R1, R2 |
| 1 | 24K 24k | R_0603_1608Metric | R4 |
| 1 | 47K 47k | R_0603_1608Metric | R5 |
| 1 | 1k | R_0603_1608Metric | R7 |
| 1 | 10K 10k | R_0603_1608Metric | R12 |
| 1 | 180R | R_0603_1608Metric | R13 |
| 3 | 13K 13k | R_0603_1608Metric | R14, R15, R16 |
IEC-62056-21-Optical-Probe design files
The KiCad project lives in the twam/IEC-62056-21-Optical-Probe repository on GitHub; these links point at the commit this page was built from.
IEC-62056-21-Optical-Probe: common questions
How big is the IEC-62056-21-Optical-Probe PCB?
The IEC-62056-21-Optical-Probe measures 26.8 × 26.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the IEC-62056-21-Optical-Probe?
28 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the IEC-62056-21-Optical-Probe design files?
From the twam/IEC-62056-21-Optical-Probe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the IEC-62056-21-Optical-Probe design in my own project?
The repository has no license, so all rights stay with twam. Use it as a reference, and ask the author before reusing the design.
