About the STM32F103RCT6-Dev-Board

STM32F103RCT6-Dev-Board is an open source STM32 PCB design by TylerJulian, published on GitHub. It is a 2-layer board measuring 44.5 × 63.5 mm, with 40 components from 28 distinct parts.

Its main chip is the STM32F103RCT6, from the STM32 family. Other key parts include the SN65HVD230QDR and REG1117-3.3. By type, the board carries 13 capacitors, 10 resistors, 9 connectors, 3 ICs, 2 crystals and 2 LEDs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A stm32f103RCT6 Breakout board for Sooner Competitive Robotics and Personal use.

A stm32f103RCT6 Breakout board for Sooner Competitive Robotics and Personal use.

Contains PORTs for CAN-Bus protocol and a 6 pin molex power and signal connection.

- Kicad and Altium- Schematic designed in Kicad then imported to Altium

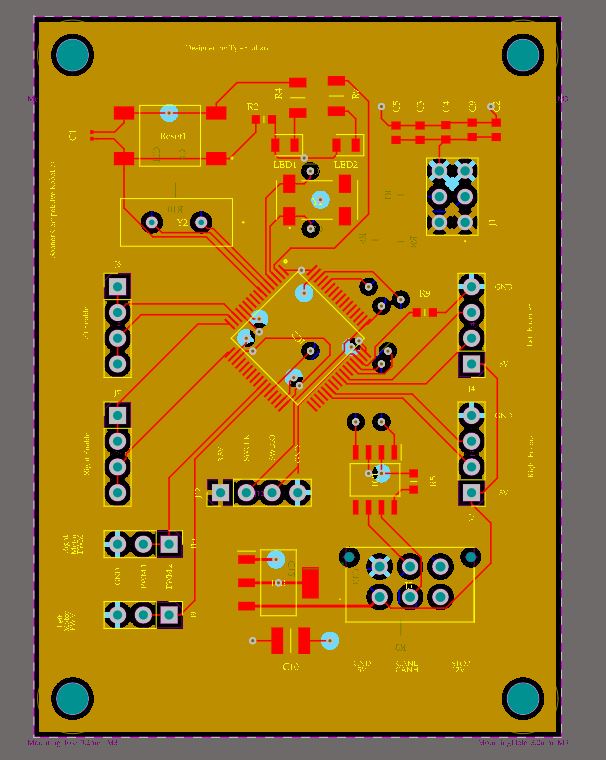

STM32F103RCT6-Dev-Board, from the project README
From the project README

Main components on the STM32F103RCT6-Dev-Board

SN65HVD230QDRSTM32F103RCT6REG1117-3.3

STM32F103RCT6-Dev-Board bill of materials (BOM)

40 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SN65HVD230QDR
IC1
1
STM32F103RCT6
IC2
1
REG1117-3.3
IC3
1
ABS25-32.768KHZ-6-1-T
32.768KHZ
Y1
1
LFXTAL057135BULK
8Mhz
Y2
1
TSW-103-07-T-D
Boot Pins
J1
1
Righ Encoder
J3
1
Left Encoder
J4
1
43045-0612
CAN Molex
J5
1
Left Enable
J6
1
Right Enable
J7
1
Right Motor PWM
J9
1
Left Motor PWM
J10
1
SWD
J12
1
LL3301NF065QG
Reset
Reset1
1
720-LHR974-LP-1
Power Indicator LED
LED1
1
LG_R971-KN-1
LED2
1
GRM033R61A105ME15J
1uF
C1
6
GCJ188L8EL104KA07D
100nf
C2, C3, C4, C5, C9, C13
2
GRM0335C1E8R0CA01D
8PF
C6, C7
Show 8 more
QtyPartRefs
2
GRM0335C1H200JA01D
20pf
C8, C11
1
GRM32ER60G337ME05K
330uF
C10
1
GRM31CR61A107ME05L
100uF
C12
2
CRCW0603100KFKEAC
100k
R1, R6
4
CRCW060310K0FKEAC
10k
R2, R5, R8, R9
1
CRCW1206120RFKEAC
120
R3
2
CRCW1206510RFKEAC
510
R4, R7
1
CRCW12061M00FKEAC
1M
R10

STM32F103RCT6-Dev-Board design files

The KiCad project lives in the TylerJulian/STM32F103RCT6-Dev-Board repository on GitHub; these links point at the commit this page was built from.

STM32F103RCT6-Dev-Board: common questions

What microcontroller does the STM32F103RCT6-Dev-Board use?

The STM32F103RCT6-Dev-Board is built around the STM32F103RCT6, from the STM32 family.

How big is the STM32F103RCT6-Dev-Board?

The STM32F103RCT6-Dev-Board measures 44.5 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32F103RCT6-Dev-Board?

40 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32F103RCT6-Dev-Board design files?

From the TylerJulian/STM32F103RCT6-Dev-Board repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the STM32F103RCT6-Dev-Board design in my own project?

The repository has no license, so all rights stay with TylerJulian. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM32F103RCT6-Dev-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
