L6235
About the L6235 PCB
L6235 is an open source PCB design by UnexpectedLobster, published on GitHub under the MIT license. It is a 2-layer board measuring 69.9 × 66 mm, with 28 components from 22 distinct parts.
Other key parts include the L6235N. By type, the board carries 13 resistors, 2 diodes, 2 capacitors, 1 IC and 1 connector.
It belongs with the robotics & motion designs in this gallery.
From the project

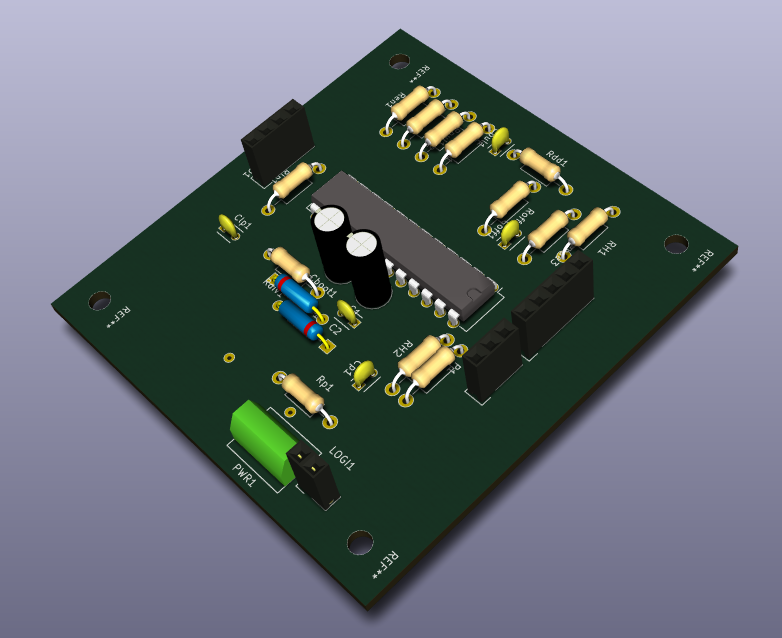

Brushless motor driver using ST L6235 made with KiCAD.
Implements the "typical application" (datasheet) as a single sided PCB.
- Require a 5V logic supply voltage (LOGI1), as well as a power one (PWR1) - 69.8*66mm. 4 M3 mounting holes - Variable reference voltage as described in the (application note) through VREF pin (CMD1)
Main components on the L6235
L6235 bill of materials (BOM)
28 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L6235N | DIP-24_W7.62mm | U1 |
| 1 | CONN_01X03 | Socket_Strip_Straight_1x03 | P1 |
| 1 | CONN_01X04 | Socket_Strip_Straight_1x04 | CMD1 |
| 1 | 220n | C_Radial_D5_L11_P2 | Cboot1 |
| 1 | 100n | C_Disc_D3_P2.5 | Clp1 |
| 1 | 1n | C_Disc_D3_P2.5 | Coff1 |
| 2 | 10n | C_Disc_D3_P2.5 | Cp1, Cpul1 |
| 1 | CONN_01X05 | Socket_Strip_Straight_1x05 | H1 |
| 1 | CONN_01X02 | Socket_Strip_Straight_1x02 | LOGI1 |
| 1 | CONN_01X02 | bornier2 | PWR1 |
| 2 | 1N4148 | Diode_DO-35_SOD27_Horizontal_RM10 | D1, D2 |
| 1 | 10µ | C_Radial_D5_L11_P2 | C1 |
| 1 | 100n | C_Disc_D3_P2.5 | C2 |
| 3 | 10K | Resistor_Horizontal_RM10mm | RH1, RH2, RH3 |
| 1 | 1k | Resistor_Horizontal_RM10mm | Rdd1 |
| 1 | 15k | Resistor_Horizontal_RM10mm | Rdiv1 |
| 1 | 100k | Resistor_Horizontal_RM10mm | Ren1 |
| 1 | 56k | Resistor_Horizontal_RM10mm | Rlp1 |
| 1 | 33k | Resistor_Horizontal_RM10mm | Roff1 |
| 1 | 100 | Resistor_Horizontal_RM10mm | Rp1 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 47k | Resistor_Horizontal_RM10mm | Rpul1 |
| 3 | 1 | Resistor_Horizontal_RM10mm | Rsense1, Rsense2, Rsense3 |
L6235 design files
The KiCad project lives in the UnexpectedLobster/L6235-PCB repository on GitHub; these links point at the commit this page was built from.
- LayoutL6235.kicad_pcb
L6235: common questions
How big is the L6235 PCB?
The L6235 measures 69.9 × 66 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the L6235?
28 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the L6235 design files?
From the UnexpectedLobster/L6235-PCB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the L6235 design in my own project?
Yes, under the terms of its MIT license, which UnexpectedLobster chose for the repository.
