TXB0108

upsidedownlabs·TXB0108·TXB0108DQSR-breakout/TXB0108DQSR-breakout.kicad_pcb

TXB0108 PCB layout, top view — open source board by upsidedownlabs
Simulate this board

About the TXB0108 PCB

TXB0108 is an open source PCB design by upsidedownlabs, published on GitHub under the MIT license. It is a 2-layer board measuring 13.7 × 26.4 mm, with 6 components from 4 distinct parts.

Other key parts include the TXB0108DQSR. By type, the board carries 2 connectors, 2 capacitors, 1 IC and 1 resistor.

It belongs with the dev boards & breakouts and test & measurement designs in this gallery.

From the project

Upside Down Lab's TXB0108 8-Bit Bidirectional Voltage-Level Translator with Auto-Direction Sensing and ±15-kV ESD Protection.

TXB0108 is 8-Bit Bidirectional Voltage-Level Translator with Auto-Direction Sensing and ±15-kV ESD Protection.

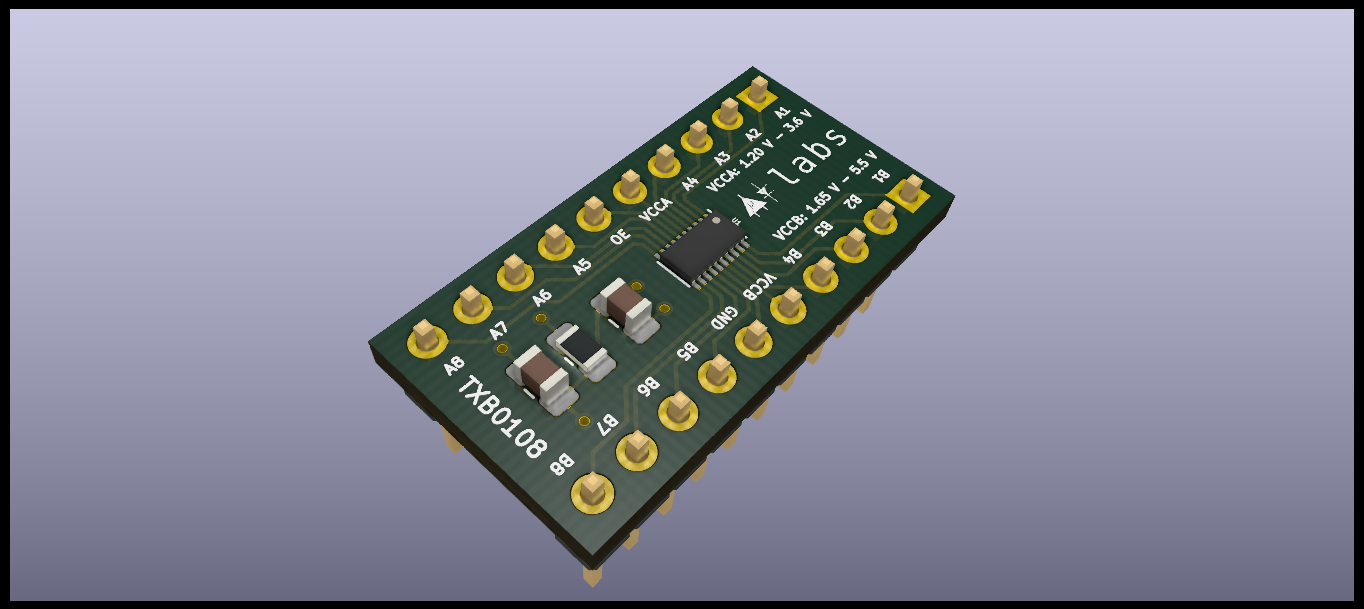

TXB0108, from the project README
From the project README

Main components on the TXB0108

TXB0108DQSR

TXB0108 bill of materials (BOM)

6 components, 4 distinct parts.

QtyPartRefs
1
TXB0108DQSR
U1
2
Conn_01x10_Male
J1, J2
2
100nf
C1, C2
1
10k
R1

TXB0108 design files

The KiCad project lives in the upsidedownlabs/TXB0108 repository on GitHub; these links point at the commit this page was built from.

TXB0108: common questions

How big is the TXB0108 PCB?

The TXB0108 measures 13.7 × 26.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TXB0108?

6 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the TXB0108 design files?

From the upsidedownlabs/TXB0108 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TXB0108 design in my own project?

Yes, under the terms of its MIT license, which upsidedownlabs chose for the repository.
