NanoSwinSidC PCB layout, top view — open source AVR/Arduino board by UzixLS
Simulate this board

About the NanoSwinSidC PCB

NanoSwinSidC is an open source AVR/Arduino PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 35.8 × 17.5 mm, with 15 components from 13 distinct parts.

Its main chip is the ATmega88PA-AU, from the AVR/Arduino family. By type, the board carries 6 resistors, 3 capacitors, 2 connectors, 1 IC, 1 crystal and 1 jumper.

From the project

SID emulator on ATmega

This is custom PCB variant of SwinSID Nano project.

See https://www.c64-wiki.com/wiki/SwinSID and http://www.tolaemon.com/nss/

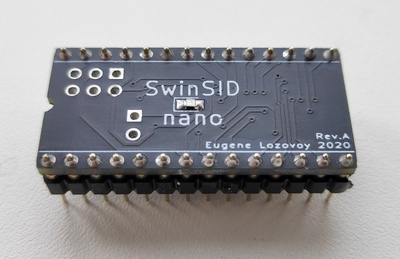

NanoSwinSidC, from the project README
From the project README

Main components on the NanoSwinSidC

ATmega88PA-AU

NanoSwinSidC bill of materials (BOM)

15 components, 13 distinct parts.

QtyPartRefs
1
ATmega88PA-AU
U1
1
32 MHz
X1
1
Conn_02x03_Odd_Even
J1
1
Conn_02x14_Counter_Clockwise
J2
1
Jumper
JP1
1
LED
D1
1
470p
C1
1
100n
C2
1
10n
C3
1
4.7k
R1
3
1k
R2, R5, R6
1
2.2k
R3
1
240k
R4

NanoSwinSidC design files

The KiCad project lives in the UzixLS/nanoSwinSidC repository on GitHub; these links point at the commit this page was built from.

NanoSwinSidC: common questions

What microcontroller does the NanoSwinSidC use?

The NanoSwinSidC is built around the ATmega88PA-AU, from the AVR/Arduino family.

How big is the NanoSwinSidC PCB?

The NanoSwinSidC measures 35.8 × 17.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NanoSwinSidC?

15 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the NanoSwinSidC design files?

From the UzixLS/nanoSwinSidC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the NanoSwinSidC design in my own project?

Yes, under the terms of its MIT license, which UzixLS chose for the repository.

Can I test firmware for the NanoSwinSidC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
