Esp ir receiver
About the Esp ir receiver PCB
Esp ir receiver is an open source PCB design by valletw, published on GitHub under the MIT license. It is a 4-layer board measuring 33.1 × 21.5 mm, with 46 components from 23 distinct parts.
Other key parts include the C44620, C15999, C6186 and C4944062. By type, the board carries 19 capacitors, 12 resistors, 6 diodes, 4 ICs, 2 inductors and 1 crystal.
It belongs with the iot & wireless designs in this gallery.
From the project

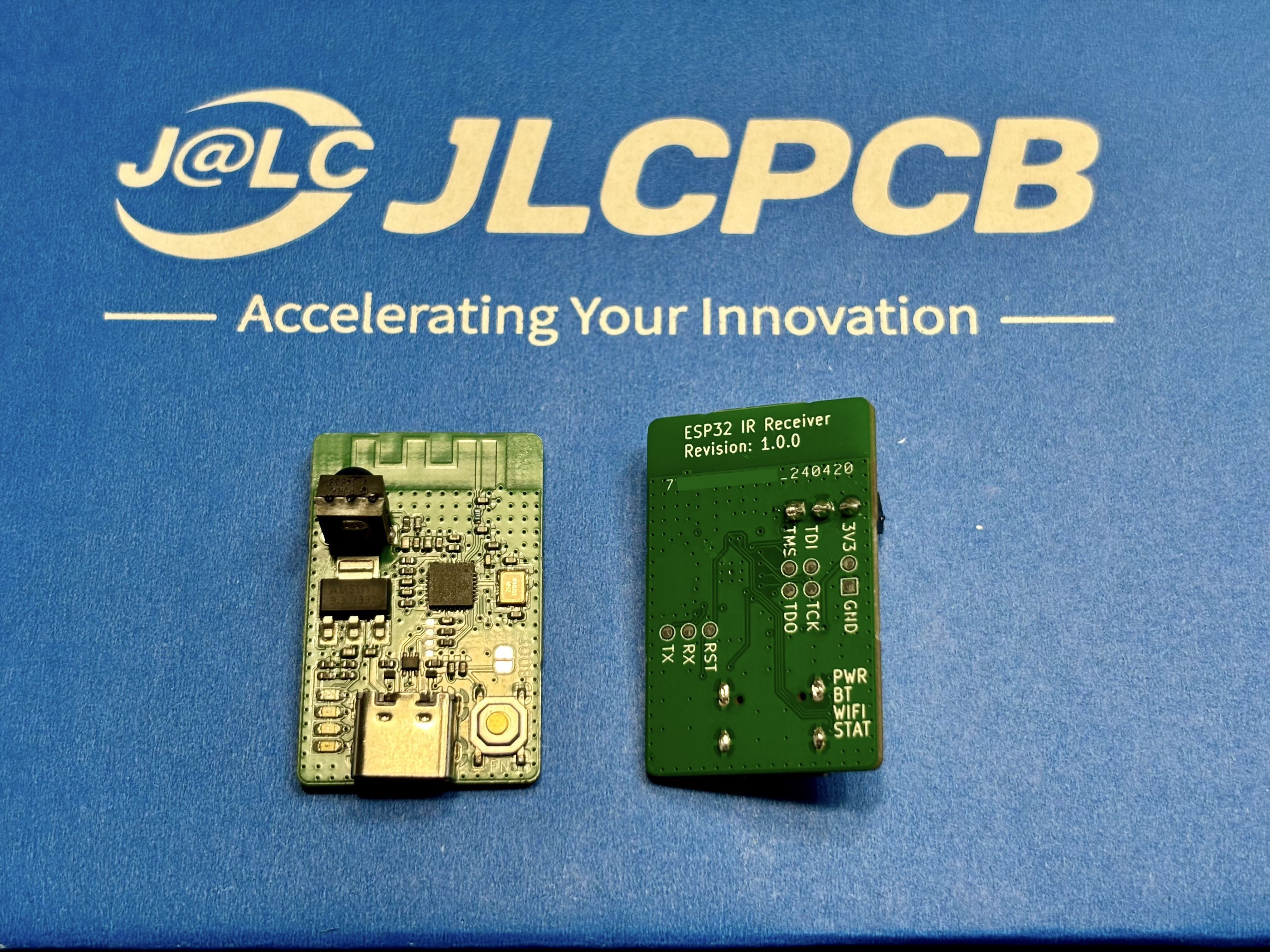

ESP32 Infra-Red Receiver
This project is made to receive IR transmitter information (TV remote) and control something over WiFi. This project will be used for UPnP remote controller project.
- PWR: 3.3V state - BT: Bluetooth / BLE pairing status - WIFI: WiFi connection status - STAT: Software protocol status
- BOOT: Control processor download mode on boot - EN: Control processor reset
Main components on the Esp ir receiver
Esp ir receiver bill of materials (BOM)
46 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C44620 TSOP348xx Vishay Intertech | Vishay_MOLD-3Pin | U101 |
| 1 | C15999 USBLC6-2P6 STMicroelectronics | SOT-666 | U103 |
| 1 | C6186 AMS1117-3.3 Advanced Monolithic Systems | SOT-223 | U104 |
| 1 | C4944062 ESP8685 Espressif | QFN-28-1EP_4x4mm_P0.4mm_EP2.6x2.6mm | U105 |
| 1 | C2875582 40MHz KYX | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y101 |
| 1 | C2988369 GT-USB-7010ASV G-Switch | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J101 |
| 1 | C318884 TS-1187A-B-A-B XKB Connectivity | SW_Push_1P1T_XKB_TS-1187A | SW101 |
| 1 | C2286 Red Hubei KENTO Elec | LED_0603_1608Metric | D101 |
| 3 | C72043 Green Everlight Elec | LED_0603_1608Metric | D102, D103, D104 |
| 2 | C436349 TPD1E05U06 Texas Instruments | Texas_DPY0002A_0.6x1mm_P0.65mm | D105, D106 |
| 1 | C18216 2n Murata Electronics | L_0402_1005Metric | L101 |
| 1 | C237342 2.5n Murata Electronics | L_0402_1005Metric | L102 |
| 3 | C15525 10u Samsung Electro-Mechanics | C_0402_1005Metric | C101, C103, C117 |
| 8 | C1525 100n Samsung Electro-Mechanics | C_0402_1005Metric | C102, C104, C105, C108, C109, C116, C118, C119 |
| 1 | C15195 10n Samsung Electro-Mechanics | C_0402_1005Metric | C106 |
| 3 | C52923 1u Samsung Electro-Mechanics | C_0402_1005Metric | C107, C110, C111 |
| 2 | C1547 12p FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C112, C113 |
| 2 | C1553 1.8p FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C114, C115 |
| 2 | C25087 200 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R101, R105 |
| 3 | C25092 22 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R102, R103, R104 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | C25744 10k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R106, R107, R108 |
| 2 | C25905 5.1k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R109, R110 |
| 2 | C17168 0 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R111, R112 |
Esp ir receiver design files
The KiCad project lives in the valletw/esp-ir-receiver repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/esp-ir-receiver.kicad_pcb
- Schematickicad/esp-ir-receiver.kicad_sch
- BOMbom.csv
Esp ir receiver: common questions
How big is the Esp ir receiver PCB?
The Esp ir receiver measures 33.1 × 21.5 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Esp ir receiver?
46 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Esp ir receiver design files?
From the valletw/esp-ir-receiver repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Esp ir receiver design in my own project?
Yes, under the terms of its MIT license, which valletw chose for the repository.
