STM32 RF Demo
About the STM32 RF Demo PCB
STM32 RF Demo is an open source STM32 PCB design by Venky474, published on GitHub under the MIT license. It is a 4-layer board measuring 58 × 31 mm, with 40 components from 22 distinct parts.
Its main chip is the STM32WB55CEU6, from the STM32 family. Other key parts include the MIC5365-3.3YD5 and USBLC6-2SC6. By type, the board carries 19 capacitors, 7 resistors, 3 ICs, 3 connectors, 3 inductors and 2 crystals.
From the project
Custom STM32 RF board designed in KiCad.
This is a custom STM32 RF PCB designed using KiCad.

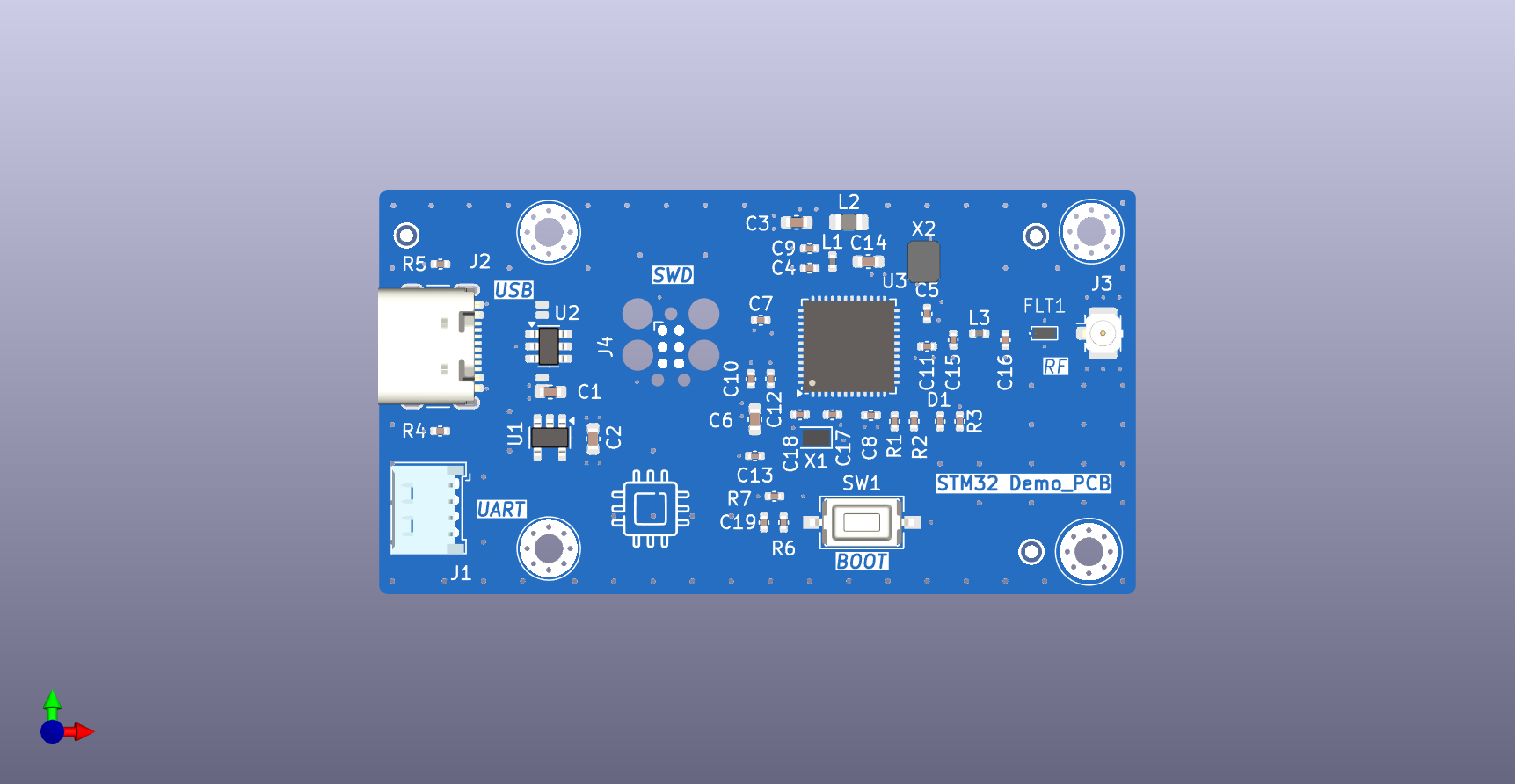

Preview of the STM32_RF PCB layout (generated using KiCad 3D viewer).
Main components on the STM32 RF Demo
STM32 RF Demo bill of materials (BOM)
40 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MIC5365-3.3YD5 | SOT-23-5 | U1 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | STM32WB55CEU6 | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U3 |
| 1 | 32KHZ768 32KHz768 NHK | Crystal_SMD_2012-2Pin_2.0x1.2mm | X1 |
| 1 | 32MHZ 32MHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | X2 |
| 1 | CONN_01X04 Conn_01x04 | Molex_PicoBlade_53048-0410_1x04_P1.25mm_Horizontal | J1 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2 |
| 1 | Conn_Coaxial | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J3 |
| 1 | SW_Push | SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS | SW1 |
| 1 | DLF162500LT-5028A1 | Untitled | FLT1 |
| 1 | LED | C_0402_1005Metric | D1 |
| 1 | 10NH 10nH | L_0402_1005Metric | L1 |
| 1 | 10UH 10uH | L_0805_2012Metric | L2 |
| 1 | 2.7NH 2.7nH | L_0402_1005Metric | L3 |
| 5 | 4.7UF 4.7uF | C_0603_1608Metric | C1, C2, C3, C6, C14 |
| 10 | 100NF 100nF | C_0402_1005Metric | C4, C5, C7, C8, C9, C10, C11, C12 +2 |
| 1 | 0.8PF 0.8pF | C_0402_1005Metric | C15 |
| 1 | 0.3PF 0.3pF | C_0402_1005Metric | C16 |
| 2 | 10P 10p | C_0402_1005Metric | C17, C18 |
| 3 | 100R | C_0402_1005Metric | R1, R2, R6 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 220R | C_0402_1005Metric | R3 |
| 3 | 5K1 | C_0402_1005Metric | R4, R5, R7 |
STM32 RF Demo design files
The KiCad project lives in the Venky474/STM32_RF_Demo_PCB repository on GitHub; these links point at the commit this page was built from.
- LayoutSTM32_RF.kicad_pcb
- SchematicSTM32_RF.kicad_sch
- BOM${STM32WB_Demo}.csv
STM32 RF Demo: common questions
What microcontroller does the STM32 RF Demo use?
The STM32 RF Demo is built around the STM32WB55CEU6, from the STM32 family.
How big is the STM32 RF Demo PCB?
The STM32 RF Demo measures 58 × 31 mm, has 4 copper layers and is 1.62 mm thick.
How many components are on the STM32 RF Demo?
40 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the STM32 RF Demo design files?
From the Venky474/STM32_RF_Demo_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the STM32 RF Demo design in my own project?
Yes, under the terms of its MIT license, which Venky474 chose for the repository.
Can I test firmware for the STM32 RF Demo without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
