About the FMC MIPI PCB
FMC MIPI is an open source PCB design by VideoGPU, published on GitHub. It is a 6-layer board measuring 69.3 × 111.8 mm, with 143 components from 29 distinct parts.
Other key parts include the SN74AVC4T245PWR, AT24MAC402-MAHM-T, TCA9406DCUR, SN74AVC1T45DCKT and LP5907MFX-1.8/NOPB. By type, the board carries 75 resistors, 41 capacitors, 15 ICs, 4 diodes, 3 connectors and 3 jumpers.

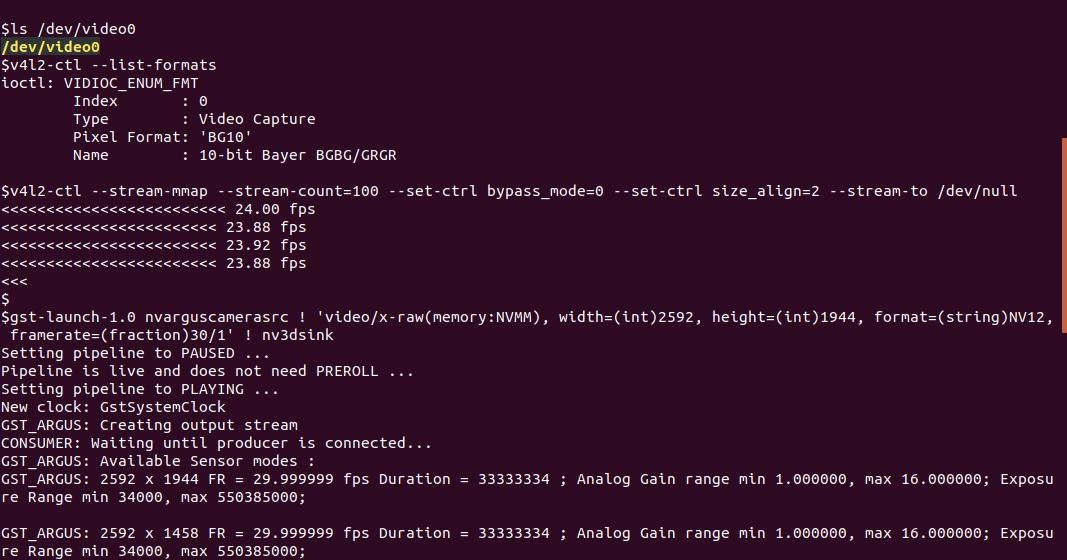

From the project
FMC card to allow interfacing Xilinx FPGA boards with Jetson TX2 or TX1 via CSI-2 camera interface
HS and LP lanes come as a separate lines from FPGA.Switching between HS and LP modes is done using a high-speed switch TS3DDR3812.

Main components on the FMC MIPI
FMC MIPI bill of materials (BOM)
143 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74AVC4T245PWR | SOP65P640X120-16N | IC1 |
| 1 | AT24MAC402-MAHM-T | SON50P300X200X60-9N | IC2 |
| 3 | TCA9406DCUR | SOP50P310X90-8N | IC3, IC4, IC5 |
| 2 | SN74AVC1T45DCKT | SOT65P210X110-6N | IC6, IC7 |
| 1 | LP5907MFX-1.8/NOPB LP5907MFX-1.8 | SOT-23-5 | U1 |
| 1 | SN74AVC2T45DCUR | SN74AVC2T45DCUR | U2 |
| 2 | SN74AVCH16T245GR | SOP50P810X120-48N | U3, U8 |
| 1 | TLV75525PDBV | SOT-23-5 | U4 |
| 2 | TS3DDR3812_RUA_42 | TS3DDR3812RUAR | U5, U6 |
| 1 | LP5907MFX-1.2 | SOT-23-5 | U7 |
| 1 | ASP-134488-01 | ASP-134488-01_VER2 | J1 |
| 1 | QTH-060-01-L-D-A | QTH-060-01-X-D-A-QTH-060-01-X-D-A | J2 |
| 1 | CONN_01X08_FEMALE Conn_01x08_Female | PinHeader_2x04_P2.54mm_Vertical | J3 |
| 1 | 22-28-4033 Jumper_3_Bridged12 | Pin_Header_Straight_1x03_Pitch2.54mm | JP1 |
| 2 | 22-28-5023 Jumper | Pin_Header_Straight_1x02_Pitch2.54mm | JP2, JP3 |
| 2 | 5011 GND | TestPoint_Keystone_5010-5014_Multipurpose | TP1, TP2 |
| 4 | UCLAMP0501H.TCT | SODFL1608X70N | D1, D2, D3, D4 |
| 1 | CL05B104KO5NNNC 0.1uF | C_0402 | C1 |
| 30 | TMK105BJ104KV-F 0.1uF | C_0402 | C2, C3, C5, C6, C9, C10, C11, C12 +22 |
| 2 | CL21A475KAQNNNE 4.7uF | C_0805 | C4, C29 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CL21B105KBFNNNE 1uF | C_0805 | C7 |
| 5 | UMK212B7105KG-T 1uF | C_0805 | C8, C25, C26, C27, C28 |
| 2 | C2012X7R1H475K125AC 4.7uF | C_0805 | C30, C31 |
| 25 | 0805W8F0000T5E 0 | R_0805 | R1, R6, R7, R8, R12, R13, R14, R15 +17 |
| 10 | CR0805-JW-472ELF 4.7k | R_0805 | R2, R3, R4, R5, R9, R10, R11, R30 +2 |
| 4 | 2.2K 2.2k | R_0805 | R29, R31, R32, R34 |
| 12 | RC0603FR-07220RL 220 | R_0603 | R39, R40, R45, R46, R51, R52, R57, R58 +4 |
| 12 | RC0603FR-0747RL 47 | R_0603 | R41, R42, R47, R48, R53, R54, R59, R60 +4 |
| 12 | CR0603-F/-9R10ELF 9.1 | R_0603 | R43, R44, R49, R50, R55, R56, R61, R62 +4 |
FMC MIPI design files
The KiCad project lives in the VideoGPU/FMC_MIPI repository on GitHub; these links point at the commit this page was built from.
FMC MIPI: common questions
How big is the FMC MIPI PCB?
The FMC MIPI measures 69.3 × 111.8 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the FMC MIPI?
143 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the FMC MIPI design files?
From the VideoGPU/FMC_MIPI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the FMC MIPI design in my own project?
The repository has no license, so all rights stay with VideoGPU. Use it as a reference, and ask the author before reusing the design.
