2027-SAE-Electric-VCU PCB layout, top view — open source STM32 board by VikingMotorsports

About the 2027-SAE-Electric-VCU PCB

2027-SAE-Electric-VCU is an open source STM32 PCB design by VikingMotorsports, published on GitHub. It is a 2-layer board measuring 85.2 × 107.8 mm, with 63 components from 42 distinct parts.

Its main chip is the STM32C092RCT6, from the STM32 family. Other key parts include the LMR33640DDDAR and MCP2562FDT-H/SN. By type, the board carries 19 capacitors, 17 connectors, 11 resistors, 4 ICs, 4 diodes and 2 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

temp VMS VCU repo

A custom STM32C092RCT6 development and vehicle-control PCB designed specifically for the Viking Motorsports Formula SAE Electric vehicle control system.

The board is designed to fit inside a Cinch enclosure and provide a flexible interface between the STM32 microcontroller and the vehicle's external wiring harness. Rather than creating a dedicated PCB for every vehicle-control function, this board provides a common hardware platform that can be configured for different VCU applications.

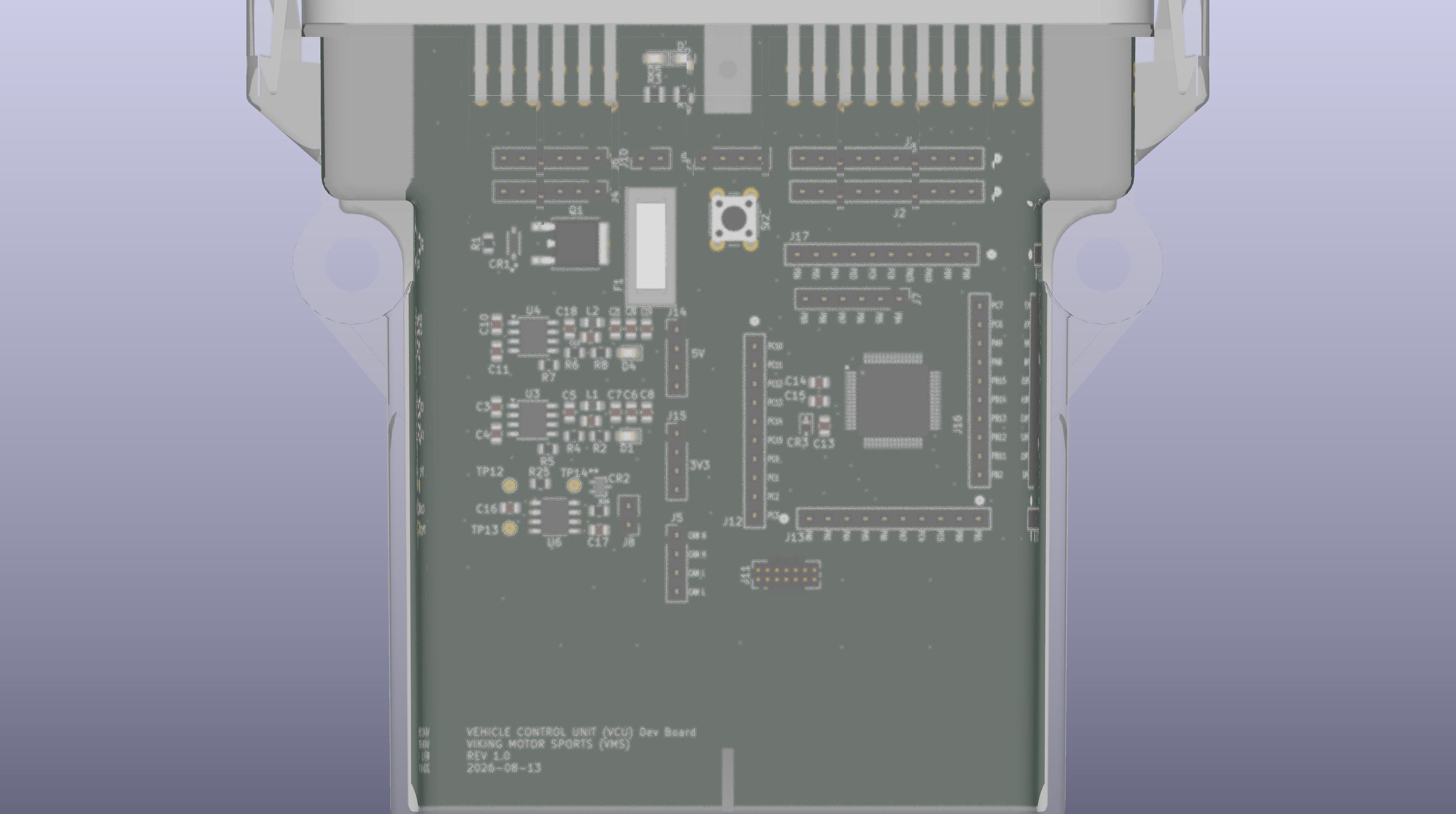

2027-SAE-Electric-VCU, from the project README
From the project README

Main components on the 2027-SAE-Electric-VCU

STM32C092RCT6LMR33640DDDARMCP2562FDT-H/SN

2027-SAE-Electric-VCU bill of materials (BOM)

63 components, 42 distinct parts.

QtyPartRefs
1
STM32C092RCT6
STMicroelectronics
IC1
2
LMR33640DDDAR
LMR33640DDDA
Texas Instruments
U3, U4
1
MCP2562FDT-H/SN
MCP2562FDT-H_SN
Microchip Technology
U6
1
PJD9P06A-AU_L2_000A1
Panjit International Inc.
Q1
1
5810132011
Cinch Connectivity Solutions
J1
1
PPPC101LFBN-RC
CN1
Sullins Connector Solutions
J2
1
PPPC101LFBN-RC
CN2
Sullins Connector Solutions
J3
1
PPPC061LFBN-RC
CN3
Sullins Connector Solutions
J4
1
PPPC041LFBN-RC
MCU6
Sullins Connector Solutions
J5
1
PPPC061LFBN-RC
CN4
Sullins Connector Solutions
J6
1
PPPC061LFBN-RC
MCU5
Sullins Connector Solutions
J7
1
TS-102-T-A
Termination Resistor Jumper
Samtec Inc.
J8
1
PPPC041LFBN-RC
GND
Sullins Connector Solutions
J9
1
PPPC021LFBN-RC
12V
Sullins Connector Solutions
J10
1
FTSH-107-01-S-D-K
Conn_ST_STDC14
Samtec Inc.
J11
1
PPPC101LFBN-RC
MCU1
Sullins Connector Solutions
J12
1
PPPC101LFBN-RC
MCU2
Sullins Connector Solutions
J13
1
PPPC041LFBN-RC
5V
Sullins Connector Solutions
J14
1
PPPC041LFBN-RC
3V3
Sullins Connector Solutions
J15
1
PPPC101LFBN-RC
MCU3
Sullins Connector Solutions
J16
Show 22 more
QtyPartRefs
1
PPPC101LFBN-RC
MCU4
Sullins Connector Solutions
J17
1
SZMMSZ5245BT1G
onsemi
CR1
1
ESDCAN03-2BWY
STMicroelectronics
CR2
1
ESDA051-1JY
STMicroelectronics
CR3
1
3568
Keystone Electronics
F1
1
B3F-1000
SW_Push
Omron Electronics Inc-EMC Div
SW2
2
SMLMN2ECTT86C
GRN
Rohm Semiconductor
D1, D4
1
SMLMN2BCTT86C
Blue
Rohm Semiconductor
D2
1
SML-H12D8TT86C
Amber
Rohm Semiconductor
D5
2
AKPB002012103R3MA2
3.3u
Pulse Electronics
L1, L2
2
GRT21BR61H475KE13L
10u
Murata Electronics
C3, C10
2
CL21B224KBFVPNE
220n
Samsung Electro-Mechanics
C4, C11
2
GCJ21BR72A104KA01L
0.1u
Murata Electronics
C5, C18
6
GRT21BR61C226ME13K
22u
Murata Electronics
C6, C7, C8, C19, C20, C21
3
CGA4J3X7S2A105K125AB
1u
TDK
C9, C12, C14
4
GCJ21BR72A104KA01L
100n
Murata Electronics
C13, C15, C16, C17
3
SG73S2ATTD1003F
100k
KOA Speer Electronics, Inc.
R1, R4, R6
4
SG73S2ATTD1001F
1k
KOA Speer Electronics, Inc.
R2, R3, R8, R9
1
RK73H2ATTD4322F
43.2k
KOA Speer Electronics, Inc.
R5
1
RK73H2ATTD2492F
24.9k
KOA Speer Electronics, Inc.
R7
1
SG73S2ATTD103J
10k
KOA Speer Electronics, Inc.
R25
1
SG73S2ATTD1200F
120
KOA Speer Electronics, Inc.
R26

2027-SAE-Electric-VCU design files

The KiCad project lives in the VikingMotorsports/2027-SAE-Electric-VCU repository on GitHub; these links point at the commit this page was built from.

2027-SAE-Electric-VCU: common questions

What microcontroller does the 2027-SAE-Electric-VCU use?

The 2027-SAE-Electric-VCU is built around the STM32C092RCT6, from the STM32 family.

How big is the 2027-SAE-Electric-VCU PCB?

The 2027-SAE-Electric-VCU measures 85.2 × 107.8 mm, has 2 copper layers and is 1.646 mm thick.

How many components are on the 2027-SAE-Electric-VCU?

63 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the 2027-SAE-Electric-VCU design files?

From the VikingMotorsports/2027-SAE-Electric-VCU repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 2027-SAE-Electric-VCU design in my own project?

The repository has no license, so all rights stay with VikingMotorsports. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 2027-SAE-Electric-VCU without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
