About the BeagleBoneLoRaAdapter PCB
BeagleBoneLoRaAdapter is an open source PCB design by VioletEternity, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 33.1 × 61.2 mm, with 13 components from 6 distinct parts.
Other key parts include the SX127X_TRANSCEIVER. By type, the board carries 8 capacitors, 3 connectors and 2 ICs.
It belongs with the rf & radio and dev boards & breakouts designs in this gallery.
From the project

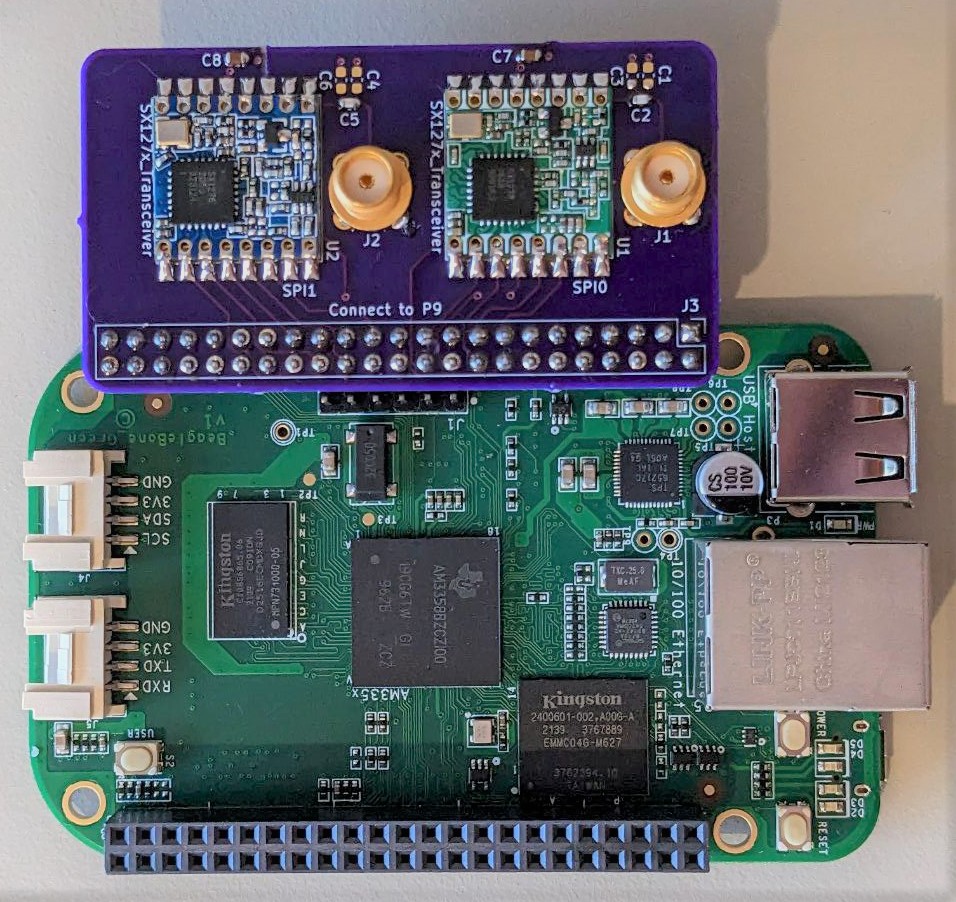

Dual LoRa module adapter for BeagleBone
This PCBA connects widely available LoRa modules based on Semtech [SX127x][] RFIC, such as [this module][module] ([archive][module-archive]) sold on Aliexpress for less than $3, to the Texas Instruments [BeagleBone][] family of single board computers.
[module]: https://www.aliexpress.com/item/32814250318.html [module-archive]: https://archive.today/oJ4Fh [sx127x]: https://www.semtech.com/products/wireless-rf/lora-connect [beaglebone]: https://beaglebone.org

Main components on the BeagleBoneLoRaAdapter
BeagleBoneLoRaAdapter bill of materials (BOM)
13 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SX127X_TRANSCEIVER SX127x_Transceiver | LoRaModule-16_16.0x16.0mm_Layout2x8_P2.0mm | U1, U2 |
| 2 | 142-0701-201 Conn_Coaxial Cinch | SMA_Cinch_142-0701_Vertical | J1, J2 |
| 1 | TSW-125-07-G-D Conn_02x23_Odd_Even Samtec | PinHeader_2x23_P2.54mm_Vertical | J3 |
| 4 | DNP | C_0603_1608Metric | C1, C3, C4, C6 |
| 2 | C0603C221J5GACTU 220p KEMET | C_0603_1608Metric | C2, C5 |
| 2 | GRM188R61C106MA73D 10u Murata | C_0603_1608Metric | C7, C8 |
BeagleBoneLoRaAdapter design files
The KiCad project lives in the VioletEternity/BeagleBoneLoRaAdapter repository on GitHub; these links point at the commit this page was built from.
BeagleBoneLoRaAdapter: common questions
How big is the BeagleBoneLoRaAdapter PCB?
The BeagleBoneLoRaAdapter measures 33.1 × 61.2 mm, has 4 copper layers and is 1.567 mm thick.
How many components are on the BeagleBoneLoRaAdapter?
13 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BeagleBoneLoRaAdapter design files?
From the VioletEternity/BeagleBoneLoRaAdapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BeagleBoneLoRaAdapter design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which VioletEternity chose for the repository.
