PCB Design DD
Vishwakarma10036·PCB_Design_DD
About the PCB Design DD
PCB Design DD is an open source AVR/Arduino PCB design by Vishwakarma10036, published on GitHub. It is a 2-layer board measuring 60 × 60 mm, with 9 components from 9 distinct parts.
Its main chip is the ATtiny85V-10P, from the AVR/Arduino family. By type, the board carries 4 resistors, 1 IC, 1 battery holder, 1 microphone, 1 switch and 1 diode.
From the project

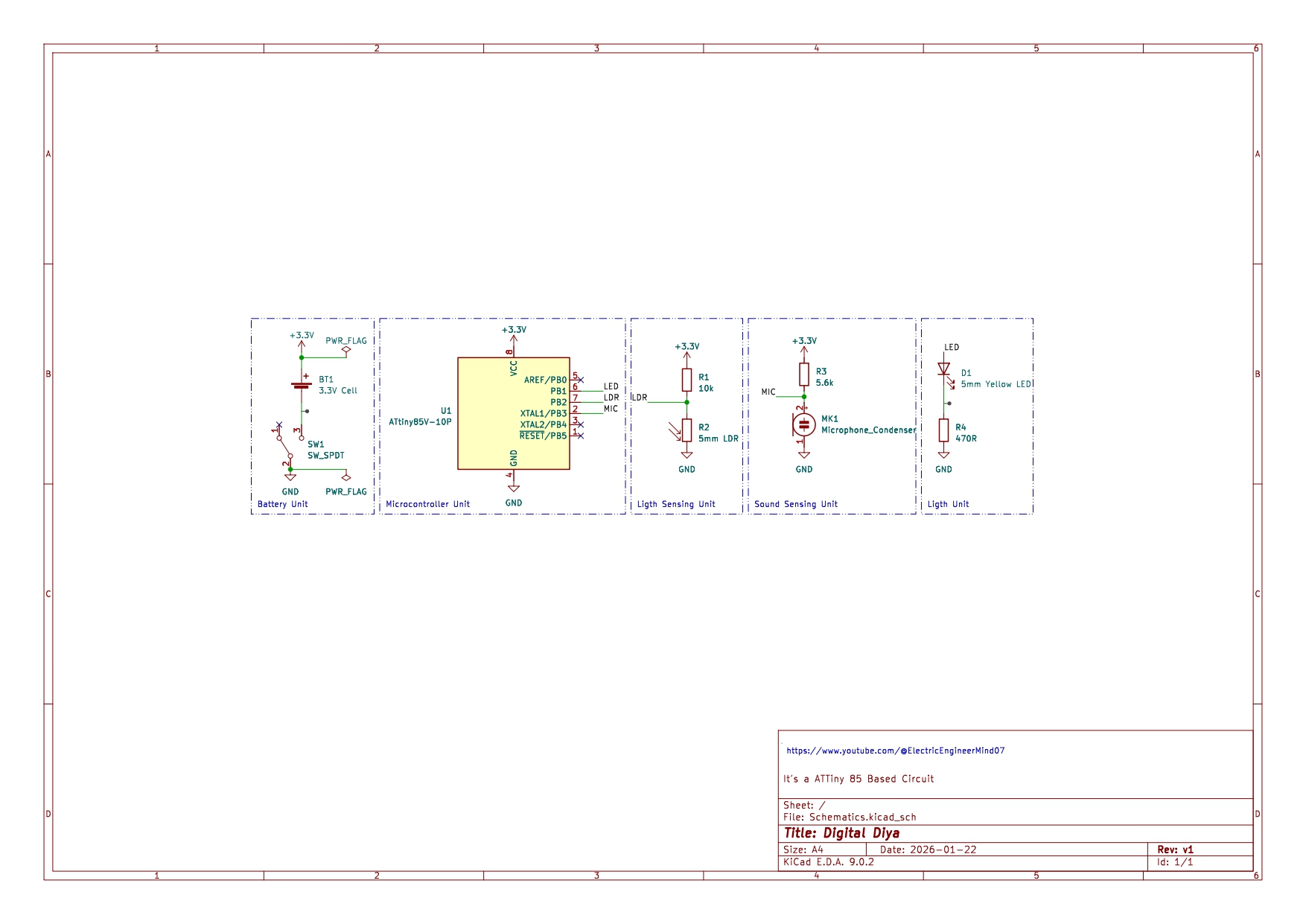

This repository contains the complete design workflow of a Digital Diya PCB developed using KiCad. It includes circuit schematics, PCB layout, Gerber files for fabrication, 3D board models, and final hardware outputs.
Digital Diya (Sound + Light Activated LED) using ATtiny85 – PCB Designed in KiCad 9.0
This project is a Digital Diya PCB designed in KiCad 9.0, which works like a smart diya/light.
It uses: - LDR07 to detect light/dark conditions - Condenser Microphone to detect sound (clap/blow) - ATtiny85-10P as the controller - LED as the diya light output - Battery cell (3.3V) for portable power - SPDT switch for ON/OFF control

Main components on the PCB Design DD
PCB Design DD bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATtiny85V-10P | DIP-8_W7.62mm | U1 |
| 1 | 3.3V Cell | BatteryHolder_ComfortableElectronic_CH273-2450_1x2450 | BT1 |
| 1 | Microphone_Condenser | PinHeader_1x02_P2.54mm_Vertical | MK1 |
| 1 | SW_SPDT | SW_CuK_OS102011MA1QN1_SPDT_Angled | SW1 |
| 1 | 5mm Yellow LED | LED_D5.0mm | D1 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P15.24mm_Horizontal | R1 |
| 1 | 5mm LDR | R_LDR_5.1x4.3mm_P3.4mm_Vertical | R2 |
| 1 | 5.6k | R_Axial_DIN0207_L6.3mm_D2.5mm_P15.24mm_Horizontal | R3 |
| 1 | 470R | R_Axial_DIN0207_L6.3mm_D2.5mm_P15.24mm_Horizontal | R4 |
PCB Design DD design files
The KiCad project lives in the Vishwakarma10036/PCB_Design_DD repository on GitHub; these links point at the commit this page was built from.
- LayoutSchematics.kicad_pcb
- SchematicSchematics.kicad_sch
PCB Design DD: common questions
What microcontroller does the PCB Design DD use?
The PCB Design DD is built around the ATtiny85V-10P, from the AVR/Arduino family.
How big is the PCB Design DD?
The PCB Design DD measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB Design DD?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCB Design DD design files?
From the Vishwakarma10036/PCB_Design_DD repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PCB Design DD design in my own project?
The repository has no license, so all rights stay with Vishwakarma10036. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the PCB Design DD without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
