Esp32-thermostat

waerhert·esp32-thermostat·hardware/thermo_v2_266.kicad_pcb

Esp32-thermostat PCB layout, top view — open source board by waerhert

About the Esp32-thermostat PCB

Esp32-thermostat is an open source PCB design by waerhert, published on GitHub under the MIT license. It is a 2-layer board measuring 124 × 53 mm, with 13 components from 6 distinct parts.

Other key parts include the DRV8837. By type, the board carries 8 resistors, 2 diodes, 2 capacitors and 1 IC.

It belongs with the iot & wireless, displays & leds and sensors designs in this gallery.

From the project

A smart thermostat built on the ESP32 platform featuring environmental sensing, e-paper/LVGL display, deep sleep power management, and multiple connectivity options (WiFi, Bluetooth, Blynk IoT).

A smart thermostat built on the ESP32 platform featuring environmental sensing, e-paper/LVGL display, deep sleep power management, and multiple connectivity options (WiFi, Bluetooth, Blynk IoT).

Designed to fit inside an existing thermostat housing, this project includes both the firmware and KiCad hardware design files.

- Environmental sensing via Bosch BME680 (temperature, humidity, pressure, air quality) - Display options: E-paper (GxEPD2) or LVGL-based display - Deep sleep with RTC memory persistence for battery efficiency - Task scheduler that survives deep sleep cycles - Multiple…

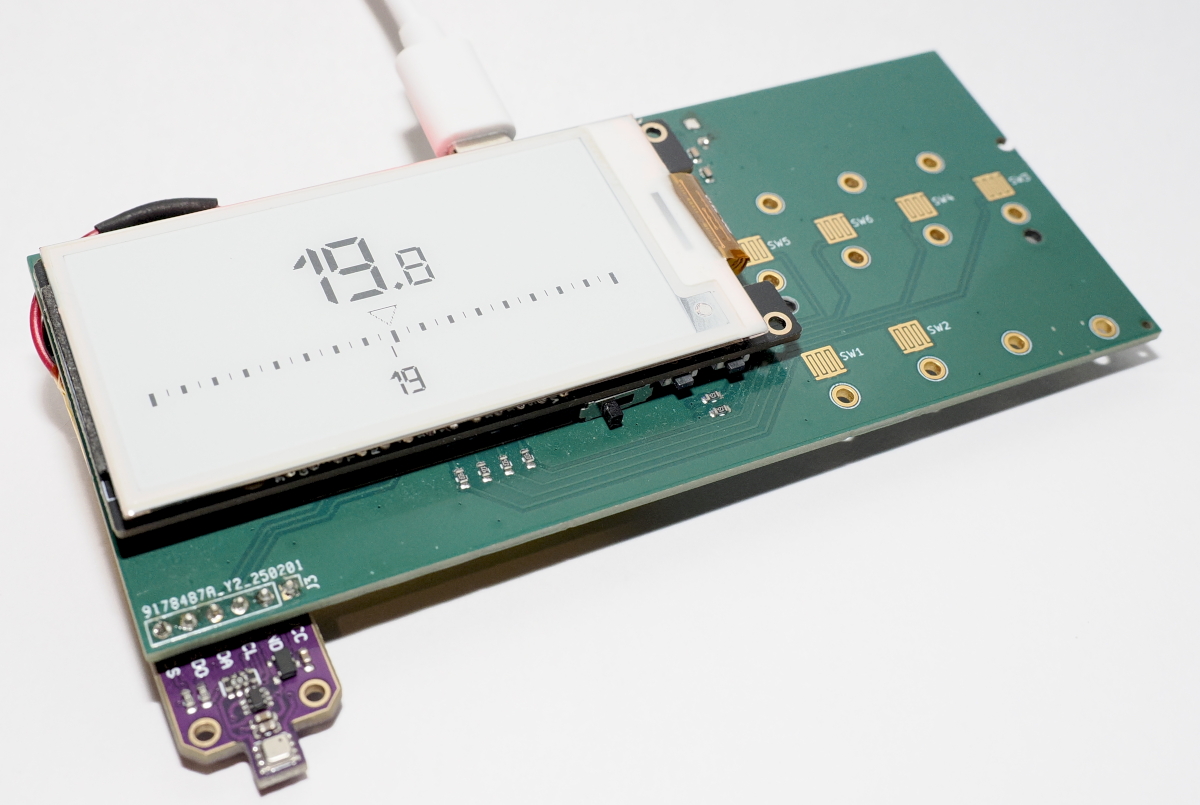

Esp32-thermostat, from the project README — From the project README

Main components on the Esp32-thermostat

Esp32-thermostat bill of materials (BOM)

13 components, 6 distinct parts.

Qty	Part	Footprint	Refs
1	DRV8837	WSON-8-1EP_2x2mm_P0.5mm_EP0.9x1.6mm	U1
2	LED	LED_0603_1608Metric	D1, D2
2	100nF	C_0603_1608Metric	C3, C5
6	4k7	R_0603_1608Metric	R1, R2, R3, R4, R5, R6
1	150R	R_0603_1608Metric	R7
1	330k	R_0603_1608Metric	R8

Esp32-thermostat design files

The KiCad project lives in the waerhert/esp32-thermostat repository on GitHub; these links point at the commit this page was built from.

Layouthardware/thermo_v2_266.kicad_pcb
Schematichardware/thermo_v2_266.kicad_sch

Esp32-thermostat: common questions

How big is the Esp32-thermostat PCB?

The Esp32-thermostat measures 124 × 53 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-thermostat?

13 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-thermostat design files?

From the waerhert/esp32-thermostat repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-thermostat design in my own project?

Yes, under the terms of its MIT license, which waerhert chose for the repository.
