About the ADE9000 Breakout

ADE9000 Breakout is an open source PCB design by whatnick, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 65 × 55 mm, with 68 components from 17 distinct parts.

Other key parts include the ADE9000ACPZ. By type, the board carries 32 resistors, 25 capacitors, 4 connectors, 1 IC, 1 crystal and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

ADE9000 Energy Monitor Breakout from Analog Devices

Breadboard-compatible breakout for the Analog Devices ADE9000 — a high-performance, multiphase energy and power quality monitoring IC.

The board follows the test circuit from Figure 55 of the ADE9000 datasheet (Rev. B, p. 28): all onboard passives (decoupling, RC anti-aliasing filters, crystal load caps, reset RC) are populated, power plus the analog channels are broken out to 0.1" headers, and the remaining digital signals are exposed on test pads to keep the board compact.

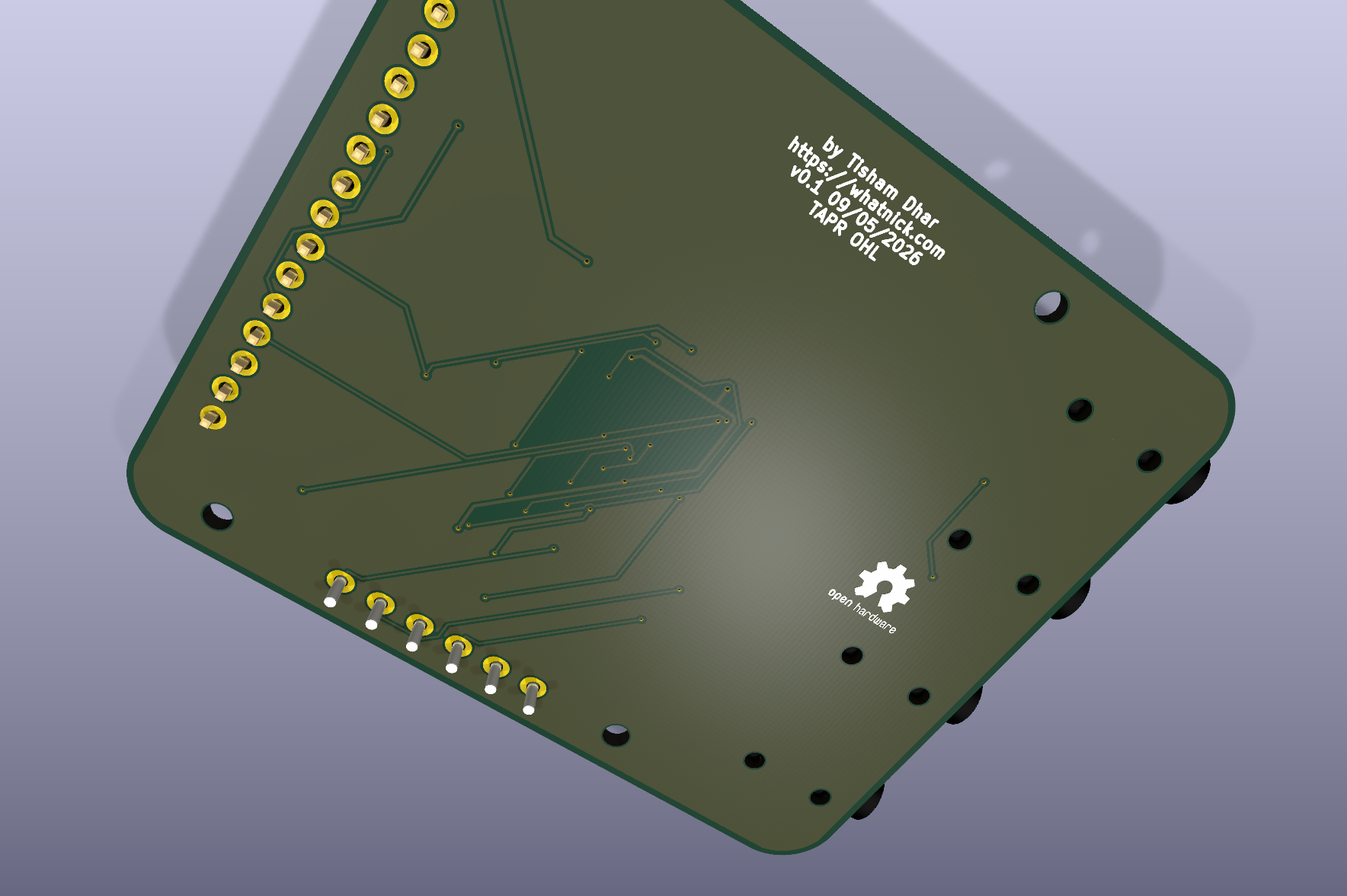

ADE9000 Breakout, from the project README — From the project README

Main components on the ADE9000 Breakout

ADE9000 Breakout bill of materials (BOM)

68 components, 17 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ADE9000ACPZ ADE9000 Analog Devices	QFN-40-1EP_6x6mm_P0.5mm_EP4.6x4.6mm	U1
1	ECS-245.7-12-33Q-JES-TR 24.576MHz ECS Inc.	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	PREC016SAAN-RC DIGITAL Sullins Connector Solutions	1x16_Locking	J1
3	1984617 Voltage Phoenix Contact	TerminalBlock_4Ucon_1x02_P3.50mm_Horizontal_ADE9000	J2, J3, J4
4	SJ-3523-SMT-TR CT stereo Same Sky	Jack_3.5mm_CUI_SJ-3523-SMT_Horizontal	CTA1, CTB1, CTC1, CTN1
1	LTST-C191KGKT GREEN_LED Lite-On	LED_0603_1608Metric	D1
1	CL21A106KPFNNNE 10uF Samsung Electro-Mechanics	C_0805_2012Metric	C1
4	CC0603KPX7R0BB104 100nF YAGEO	C_0603_1608Metric	C2, C4, C6, C8
3	CL21A475KPFNNNE 4.7uF Samsung Electro-Mechanics	C_0805_2012Metric	C3, C5, C7
2	GRM1885C1H160JA01D 16pF Murata	C_0603_1608Metric	C9, C10
1	GRM188R61A105KA61D 1uF Murata	C_0603_1608Metric	C11
14	GRM188R71H223KA01D 22nF Murata	C_0603_1608Metric	C12, C13, C14, C15, C16, C17, C18, C19 +6
1	RC0603FR-0710KL 10k YAGEO	R_0603_1608Metric	R1
15	RC0603FR-071KL 1k YAGEO	R_0603_1608Metric	R2, R3, R4, R5, R6, R7, R8, R9 +7
4	RC0603FR-072R4L 2.4R YAGEO	R_0603_1608Metric	R17, R18, R19, R20
6	RC0603FR-07100KL 100k YAGEO	R_0603_1608Metric	R21, R22, R23, R24, R25, R26
6	RC0603FR-072K49L 2.49k YAGEO	R_0603_1608Metric	R27, R28, R29, R30, R31, R32

ADE9000 Breakout design files

The KiCad project lives in the whatnick/ADE9000_Breakout repository on GitHub; these links point at the commit this page was built from.

ADE9000 Breakout: common questions

How big is the ADE9000 Breakout?

The ADE9000 Breakout measures 65 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ADE9000 Breakout?

68 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ADE9000 Breakout design files?

From the whatnick/ADE9000_Breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ADE9000 Breakout design in my own project?

Yes, under the terms of its TAPR-OHL-1.0 license, which whatnick chose for the repository.
