ATF15xx-EVB
About the ATF15xx-EVB PCB
ATF15xx-EVB is an open source PCB design by whitequark, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 25.4 × 50.8 mm, with 14 components from 6 distinct parts.
Other key parts include the ATF1502AS-7AX44. By type, the board carries 4 capacitors, 3 connectors, 3 diodes, 3 resistors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

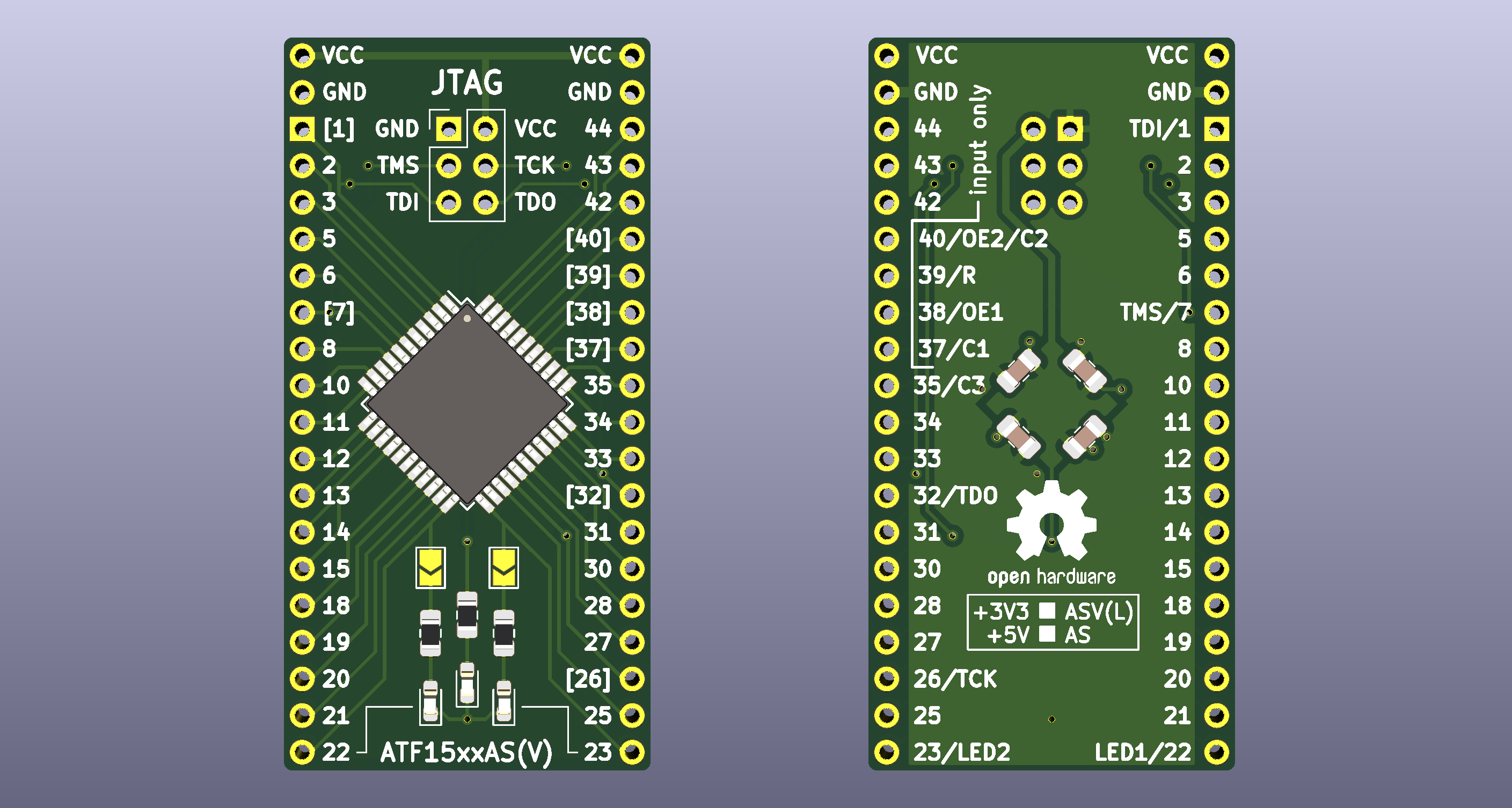

Cheap & simple evaluation boards for Microchip ATF15xx CPLDs
ATF1502-EVB is a simple and low-cost evaluation board for the Microchip ATF1502AS CPLD. It may also be used with ATF1504AS in the TQFP-44 package. It breaks out every I/O pin on a DIP-style package, exposes JTAG on a 6-pin connector, and optionally (with a solder jumper) allows two LEDs to be connected to pins 22 and 23 of the CPLD.
PCBWay has sponsored a prototype batch of these boards, and I'm very happy with how they turned out. (Thanks!) See this Twitter thread for details.
Main components on the ATF15xx-EVB
ATF15xx-EVB bill of materials (BOM)
14 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATF1502AS-7AX44 ATF1502AS-xAx44 Microchip | TQFP-44_10x10mm_P0.8mm | U1 |
| 1 | VERT | PinHeader_2x03_P2.54mm_Vertical | J1 |
| 2 | VERT | PinHeader_1x20_P2.54mm_Vertical_NoSilk | J2, J3 |
| 3 | 150060GS75000 GRN Wurth | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D2, D3 |
| 4 | 220N 220n ANY | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2, C3, C4 |
| 3 | 3K3 10k ANY | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R2, R3 |
ATF15xx-EVB design files
The KiCad project lives in the whitequark/ATF15xx-EVB repository on GitHub; these links point at the commit this page was built from.
ATF15xx-EVB: common questions
How big is the ATF15xx-EVB PCB?
The ATF15xx-EVB measures 25.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ATF15xx-EVB?
14 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ATF15xx-EVB design files?
From the whitequark/ATF15xx-EVB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the ATF15xx-EVB design in my own project?
Yes, under the terms of its CC0-1.0 license, which whitequark chose for the repository.
