ESP8266 Programming D1 Mini Pogo Jig

WingTangWong·ESP8266_Programming_D1_Mini_Pogo_Jig·KICAD/ESP12_Harness.kicad_pcb

ESP8266 Programming D1 Mini Pogo Jig PCB layout, top view — open source ESP8266 board by WingTangWong

About the ESP8266 Programming D1 Mini Pogo Jig PCB

ESP8266 Programming D1 Mini Pogo Jig is an open source ESP8266 PCB design by WingTangWong, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50 × 50 mm, with 2 components from 1 distinct parts.

Its main chip is the ESP12, from the ESP8266 family.

From the project

Programming jig for ESP-12 modules using Wemos D1 Mini ESP8266 Module and Pogo Pins

This board makes use of a WemosD1Mini (ESP8266 version) board as a USB->SERIAL adapter to flash ESP-12 modules via POGO pins.

Eagle Files KiCAD Files Gerber/Drill Production Files Gerber/Drill Production File ZIP

Imported Eagle CAD files into KiCAD 6.x and did some cleanup: Rerouted some paths so that they weren't right on top of each other. Fixed an import bug to make sure that the pogo traces show up. Fixed the silkscreen on some footprints so that DRC passes without warnings. * Exported Gerber and Drill files for the Version 2 design from KiCAD: Production Files / Production File ZIP

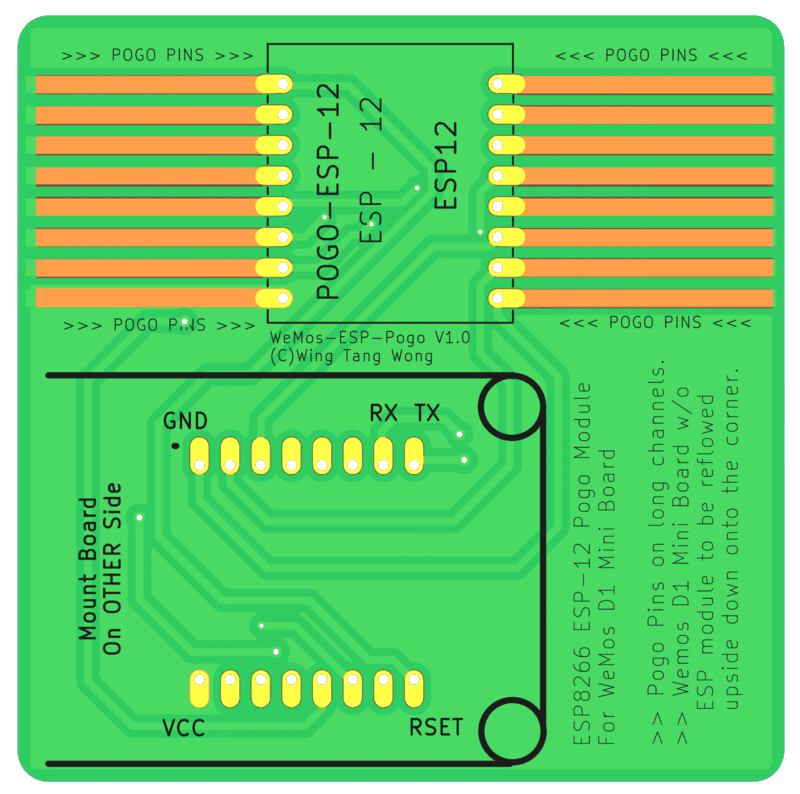

ESP8266 Programming D1 Mini Pogo Jig, from the project README
From the project README

ESP8266 Programming D1 Mini Pogo Jig bill of materials (BOM)

2 components, 1 distinct parts.

QtyPartRefs
2
ESP12
POGO-ESP-12, WEMOS-D1

ESP8266 Programming D1 Mini Pogo Jig design files

The KiCad project lives in the WingTangWong/ESP8266_Programming_D1_Mini_Pogo_Jig repository on GitHub; these links point at the commit this page was built from.

ESP8266 Programming D1 Mini Pogo Jig: common questions

What microcontroller does the ESP8266 Programming D1 Mini Pogo Jig use?

The ESP8266 Programming D1 Mini Pogo Jig is built around the ESP12, from the ESP8266 family.

How big is the ESP8266 Programming D1 Mini Pogo Jig PCB?

The ESP8266 Programming D1 Mini Pogo Jig measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP8266 Programming D1 Mini Pogo Jig?

2 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP8266 Programming D1 Mini Pogo Jig design files?

From the WingTangWong/ESP8266_Programming_D1_Mini_Pogo_Jig repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP8266 Programming D1 Mini Pogo Jig design in my own project?

Yes, under the terms of its GPL-3.0 license, which WingTangWong chose for the repository.

Can I test firmware for the ESP8266 Programming D1 Mini Pogo Jig without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
