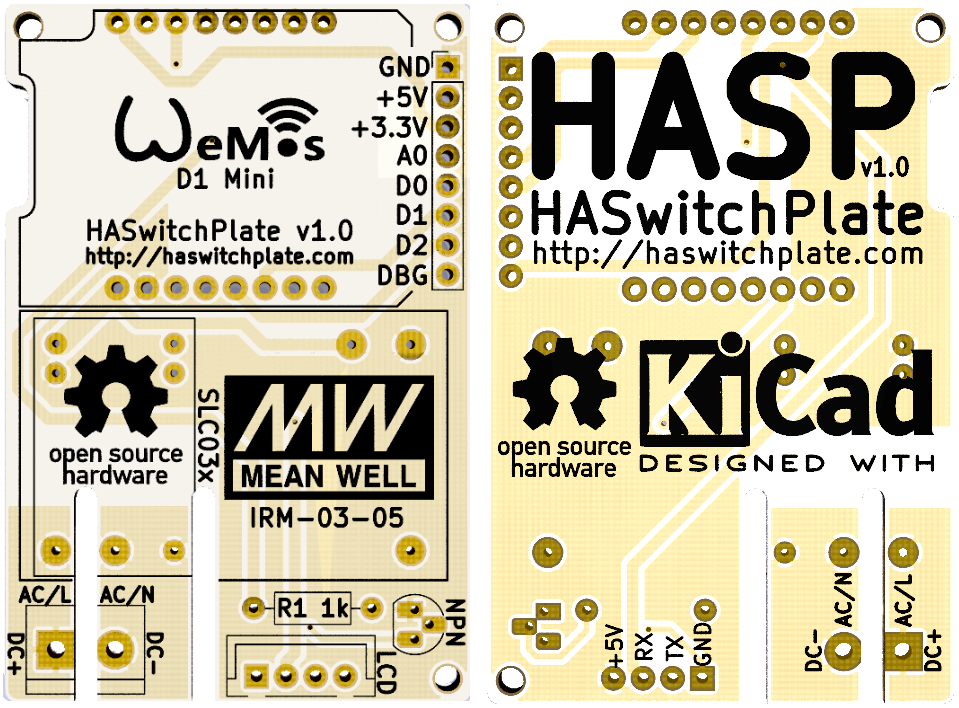

HASwitchPlate PCB layout, top view — open source ESP8266 board by aderusha

About the HASwitchPlate PCB

HASwitchPlate is an open source ESP8266 PCB design by aderusha, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 40 mm, with 8 components from 8 distinct parts.

Its main chip is the WeMos_mini, from the ESP8266 family. Other key parts include the IRM-03-5 and SLC03-series. By type, the board carries 3 ICs, 3 connectors, 1 transistor and 1 resistor.

It belongs with the iot & wireless and displays & leds designs in this gallery.

From the project

LCD touchscreen for Home Automation

This repository is an archived snapshot of the pre-1.0 HASP project.

Below you'll find saved information about previous versions of HASP.

Above you'll find KiCad schematic and PCB files along with a ZIP bundle containing complete gerber outputs ready to send to your favorite PCB shop.

I had these manufactured by AllPCB and I'm very happy with the results. The quality has been perfect and their shipping time to the US has been under a week across several orders. If you sign up through this link they credit me some cash that I can use for future projects which helps me out a bit.

HASwitchPlate, from the project README
From the project README

Main components on the HASwitchPlate

IRM-03-5WeMos_miniSLC03-series

HASwitchPlate bill of materials (BOM)

8 components, 8 distinct parts.

QtyPartRefs
1
IRM-03-5
U1
1
WeMos_mini
U2
1
SLC03-series
U3
1
S8050
Q1
1
Screw Term.
J1
1
XH2.54-4P
J2
1
Breakout
J3
1
1k
R1

HASwitchPlate design files

The KiCad project lives in the aderusha/HASwitchPlate repository on GitHub; these links point at the commit this page was built from.

HASwitchPlate: common questions

What microcontroller does the HASwitchPlate use?

The HASwitchPlate is built around the WeMos_mini, from the ESP8266 family.

How big is the HASwitchPlate PCB?

The HASwitchPlate measures 60 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HASwitchPlate?

8 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the HASwitchPlate design files?

From the aderusha/HASwitchPlate repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the HASwitchPlate design in my own project?

Yes, under the terms of its MIT license, which aderusha chose for the repository.

Can I test firmware for the HASwitchPlate without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
