A500-Tower-Power

wiretap-retro·A500-Tower-Power·A500-tower-power - rev1/A500-tower-power.kicad_pcb

A500-Tower-Power PCB layout, top view — open source board by wiretap-retro
Simulate this board

About the A500-Tower-Power PCB

A500-Tower-Power is an open source PCB design by wiretap-retro, published on GitHub. It is a 4-layer board measuring 63 × 43.2 mm, with 8 components from 6 distinct parts.

By type, the board carries 3 connectors, 1 diode and 1 resistor.

It belongs with the retro computing designs in this gallery.

From the project

A small ATX to Amiga 500 power adapter for towerized A500 builds. Includes 3 fan connectors.

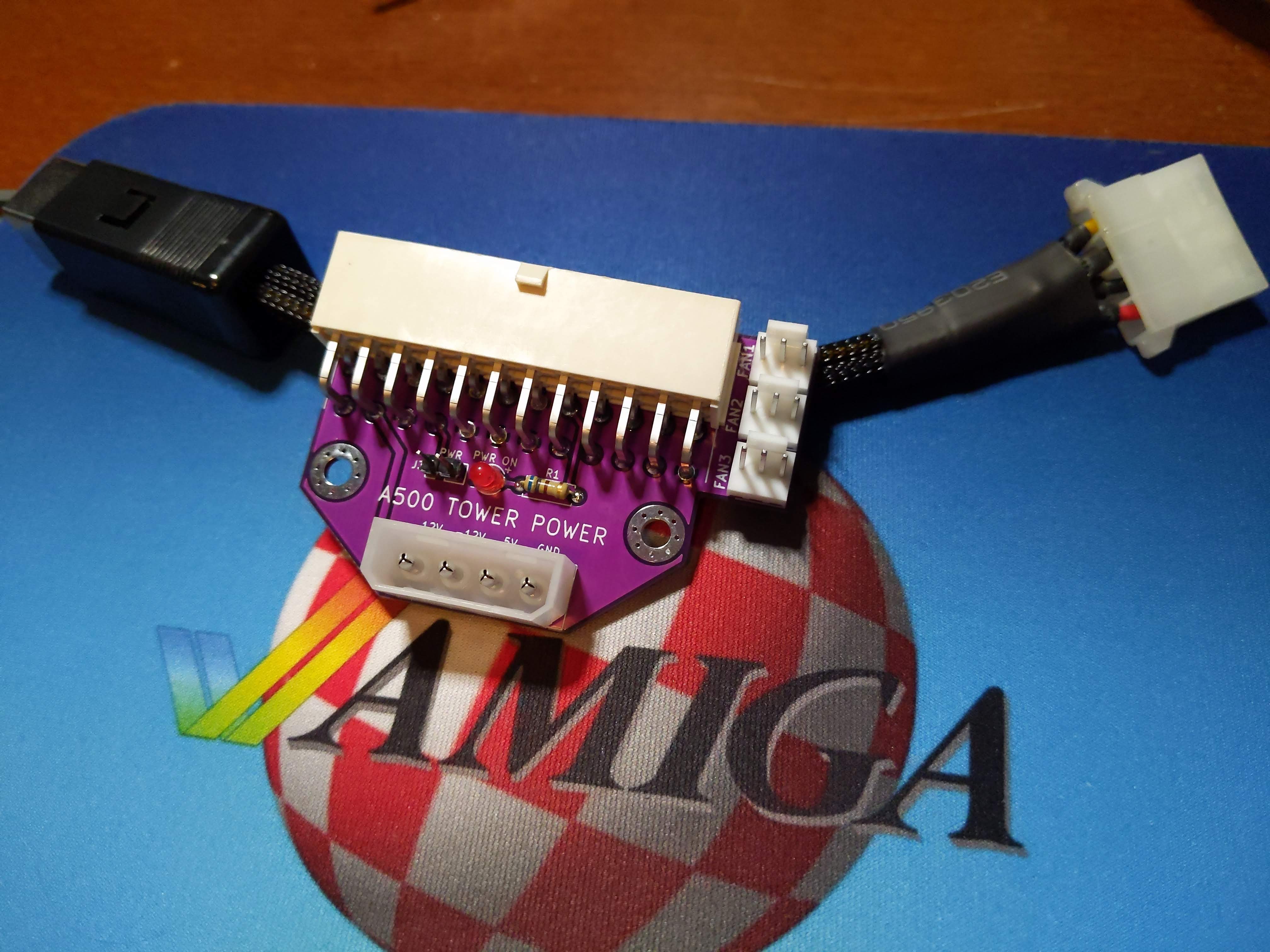

A500-Tower-Power, from the project README
From the project README

A500-Tower-Power bill of materials (BOM)

8 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
87427-2402
J1
1
15-24-4449
J2
1
CONN_01X02
Conn_01x02
J3
3
22-23-2031
FAN1, FAN2, FAN3
1
LED_3MM
LED_3mm
D1
1
1k
R1

A500-Tower-Power design files

The KiCad project lives in the wiretap-retro/A500-Tower-Power repository on GitHub; these links point at the commit this page was built from.

A500-Tower-Power: common questions

How big is the A500-Tower-Power PCB?

The A500-Tower-Power measures 63 × 43.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the A500-Tower-Power?

8 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the A500-Tower-Power design files?

From the wiretap-retro/A500-Tower-Power repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the A500-Tower-Power design in my own project?

The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
