AR0004-R1
About the AR0004-R1 PCB
AR0004-R1 is an open source PCB design by WizardTim, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 50 mm, with 44 components from 16 distinct parts.
Other key parts include the AP1117-33, L7805 and AL8843MP. By type, the board carries 22 diodes, 10 capacitors, 5 resistors, 3 ICs, 2 connectors and 1 inductor.
From the project

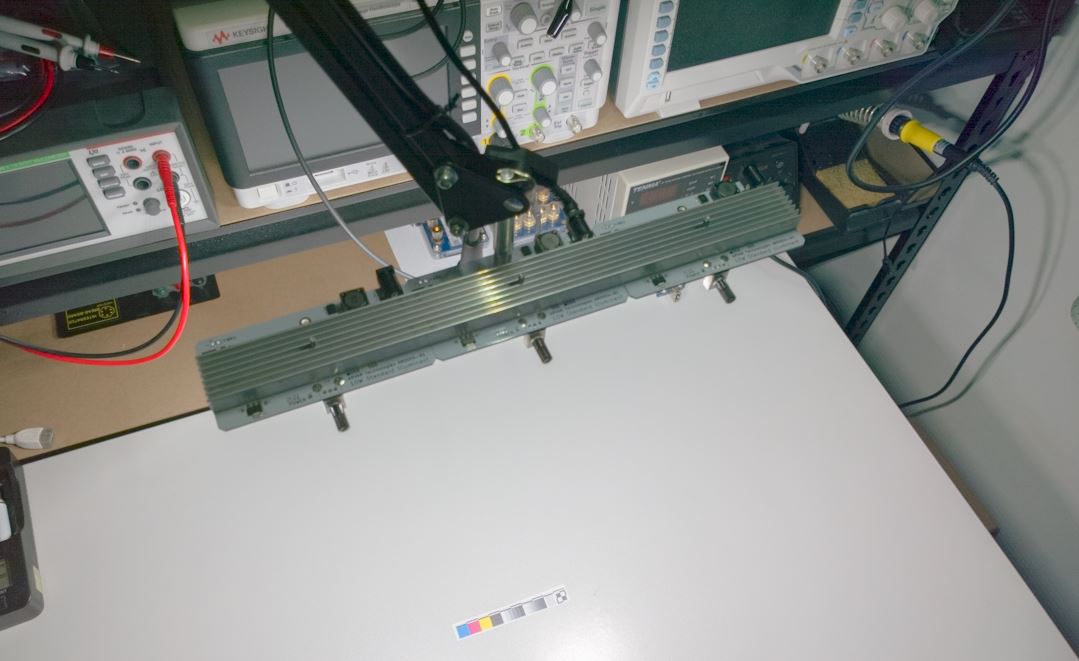

10W D50 & D65 Standard Illuminant
Main components on the AR0004-R1
AR0004-R1 bill of materials (BOM)
44 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP1117-33 | SOT-223-3_TabPin2 | U1 |
| 1 | L7805 | TO-252-2 | U2 |
| 1 | AL8843MP | HTSOP-8-1EP_3.9x4.9mm_Pitch1.27mm_ThermalVias_LargeCopper | U3 |
| 1 | 5.5mm | BARREL_JACK | J3 |
| 1 | FAN | Pin_Header_Straight_1x02_Pitch2.54mm | J6 |
| 1 | 10k | Potentiometer_Alps_RK09K_Vertical | RV1 |
| 20 | EAHC | LED_PLCC_2835 | D1, D2, D3, D4, D5, D6, D7, D8 +12 |
| 1 | Schottky | D_SMB | D11 |
| 1 | BLUE | LED_0603 | D22 |
| 1 | 33u | Choke_SMD_12x12mm_h4.5mm | L1 |
| 4 | 100n | R_0603 | C1, C2, C3, C4 |
| 4 | 10u | R_1210 | C5, C6, C7, C8 |
| 2 | 1u | R_1206 | C9, C14 |
| 1 | 2.7k | R_0603 | R1 |
| 3 | 0.1 | R_1206 | R2, R3, R4 |
| 1 | 1k | R_0603 | R5 |
AR0004-R1 design files
The KiCad project lives in the WizardTim/AR0004-R1 repository on GitHub; these links point at the commit this page was built from.
- LayoutAR0004-R1.kicad_pcb
AR0004-R1: common questions
How big is the AR0004-R1 PCB?
The AR0004-R1 measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AR0004-R1?
44 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the AR0004-R1 design files?
From the WizardTim/AR0004-R1 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the AR0004-R1 design in my own project?
Yes, under the terms of its GPL-3.0 license, which WizardTim chose for the repository.
