ESPProg to altera
wormyrocks·ESPProg-to-altera
About the ESPProg to altera PCB
ESPProg to altera is an open source PCB design by wormyrocks, published on GitHub. It is a 2-layer board measuring 27.3 × 27.3 mm, with 2 components from 2 distinct parts.
It belongs with the usb & debug tools designs in this gallery.
From the project

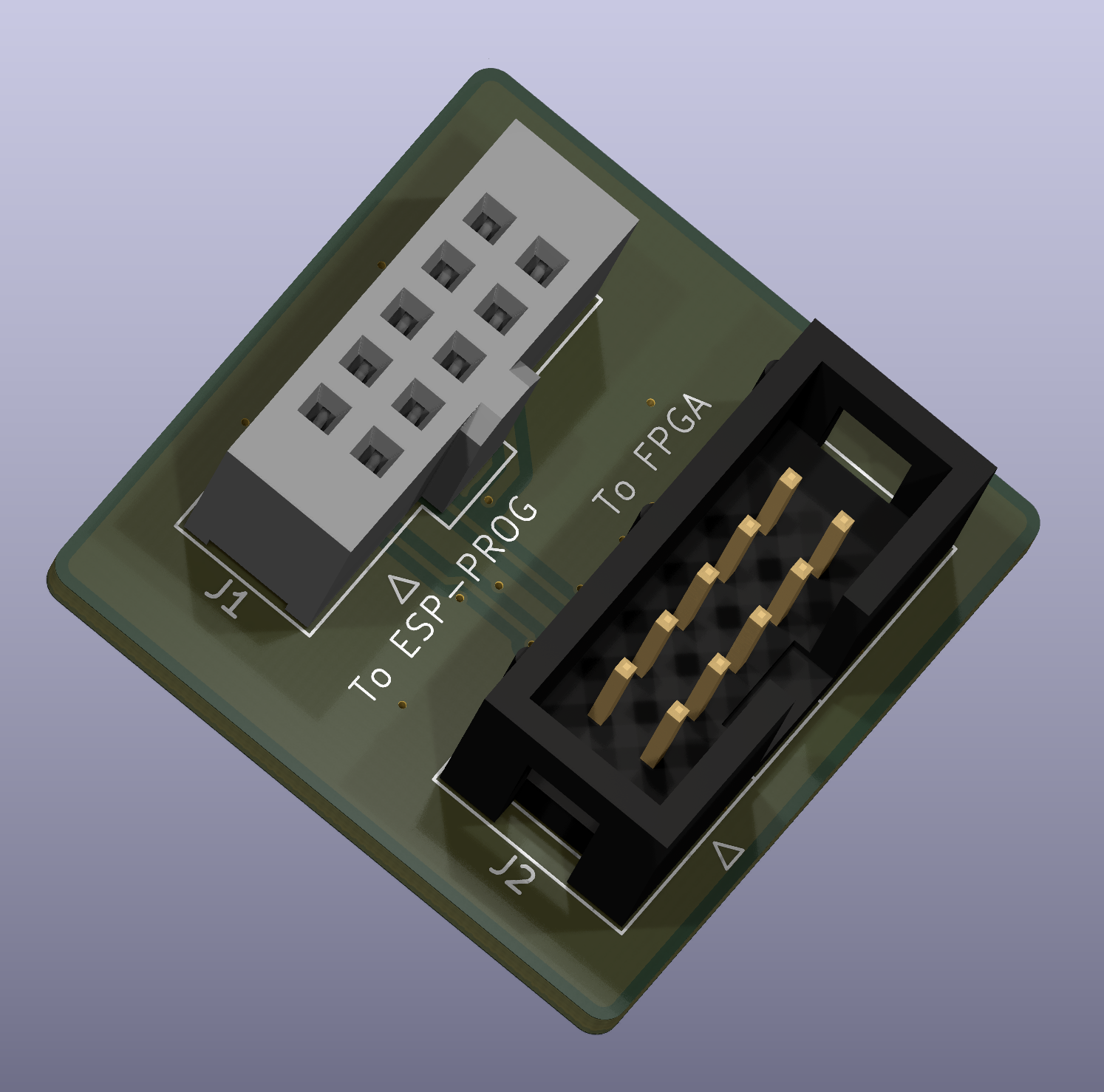

Adapter to turn an ESP-Prog into an inexpensive FPGA programmer for use with openFPGALoader.
The FT2232HL on the ESP-Prog supports JTAG/MPSSE, which means you can use it to flash an FPGA using openFPGALoader.
This board can be ordered assembled from JLCPCB using the gerbers and BOM included in the release/ directory. Or you can hand solder it, obviously.
It works. Tested with Waveshare CoreEP4CE6.
openFPGALoader -c ft2232 --fpga-part ep4ce622 -f [binary].rbf

ESPProg to altera bill of materials (BOM)
2 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SFH11-PBPC-D05-ST-BK | IDC-Header_2x05_P2.54mm_Vertical | J1 |
| 1 | X9555WV-2X05-6TV01 | IDC-Header_2x05_P2.54mm_Vertical | J2 |
ESPProg to altera design files
The KiCad project lives in the wormyrocks/ESPProg-to-altera repository on GitHub; these links point at the commit this page was built from.
ESPProg to altera: common questions
How big is the ESPProg to altera PCB?
The ESPProg to altera measures 27.3 × 27.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESPProg to altera?
2 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESPProg to altera design files?
From the wormyrocks/ESPProg-to-altera repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ESPProg to altera design in my own project?
The repository has no license, so all rights stay with wormyrocks. Use it as a reference, and ask the author before reusing the design.
