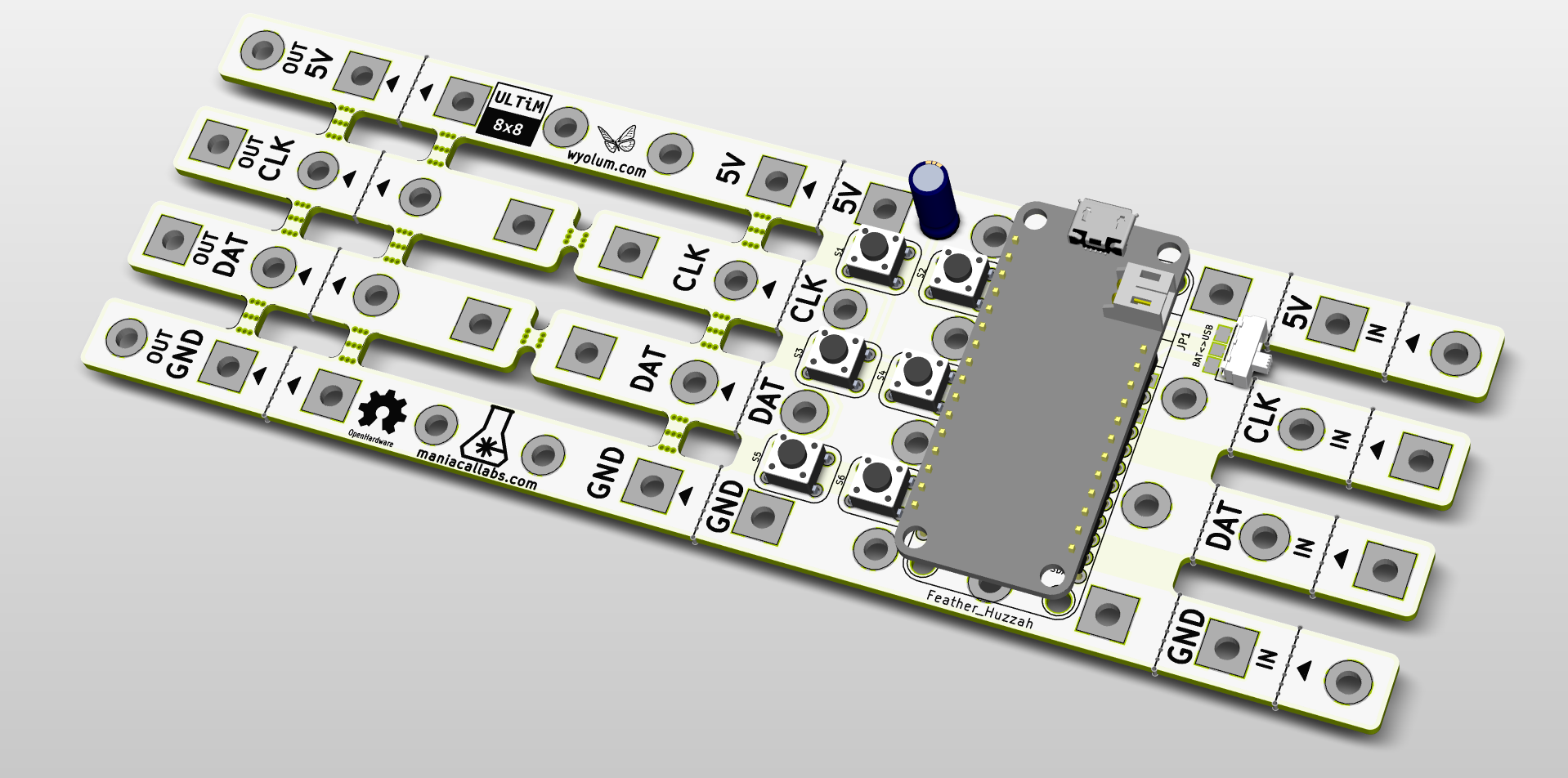

Ultim bus snapped
wyolum·ultim8x8·kicad/ultim_bus_v5/ultim_bus_snapped.kicad_pcb
About the Ultim bus snapped PCB
Ultim bus snapped is an open source PCB design by wyolum, published on GitHub. It is a 2-layer board measuring 121.9 × 55.9 mm, with 67 components from 10 distinct parts.
By type, the board carries 32 connectors, 8 modules, 6 switches, 6 resistors, 1 jumper and 1 capacitor.
It belongs with the displays & leds designs in this gallery.
From the project
Ultimate LED panel. 8x8 matrix. APA102 RGB LEDs
A PCB "bus bar" to allow three ultim8x8 modules to be connected easily. Mouse bites allow it to be snapped off easily. With some imagination, can be used to expand to larger matrices.
The first panel can be populated with a Huzzah. There are six SMD switches connected to 14, 12, 13, 15, 0, 16, 2 on the Huzzah, with pull up resistors (SMD 0805). Switch functions can be arbitrarily assigned in code.

Ultim bus snapped bill of materials (BOM)
67 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | MouseBite | mouse-bite-5.08mm-slot | M3, M4, M10, M11, M17, M18 |
| 2 | MouseBite | mouse-bite-2.54mm-slot | M6, M13 |
| 16 | CONN_1 | Screw_SqPad | P5, P8, P9, P12, P19, P20, P23, P24 +8 |
| 16 | CONN_1 | Screw | P6, P7, P10, P11, P18, P21, P22, P25 +8 |
| 1 | FEATHER_M0 Feather_Huzzah | FEATHER_Huzzah | H1 |
| 1 | PWR_SEL | switch_spdt | JP1 |
| 6 | SPST-M-2 | SW-PB | S1, S2, S3, S4, S5, S6 |
| 12 | VIA_0.8X9 via_0.8x9 | via_0.8x9 | v1, v2, v3, v4, v5, v6, v7, v8 +4 |
| 1 | 470uF 10V | cap_pol_rad3 | C1 |
| 6 | 10K 10k | r_0805 | R1, R2, R3, R4, R5, R6 |
Ultim bus snapped design files
The KiCad project lives in the wyolum/ultim8x8 repository on GitHub; these links point at the commit this page was built from.
Ultim bus snapped: common questions
How big is the Ultim bus snapped PCB?
The Ultim bus snapped measures 121.9 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ultim bus snapped?
67 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ultim bus snapped design files?
From the wyolum/ultim8x8 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Ultim bus snapped design in my own project?
The repository has no license, so all rights stay with wyolum. Use it as a reference, and ask the author before reusing the design.
