Feather v3
About the Feather v3 PCB
Feather v3 is an open source PCB design by wyolum, published on GitHub. It is a 2-layer board measuring 52.1 × 52.1 mm, with 10 components from 10 distinct parts.
By type, the board carries 8 connectors and 1 jumper.
It belongs with the displays & leds and dev boards & breakouts designs in this gallery, and the repository also holds 1 earlier revision of it.
From the project
Ultimate LED panel. 8x8 matrix. APA102 RGB LEDs

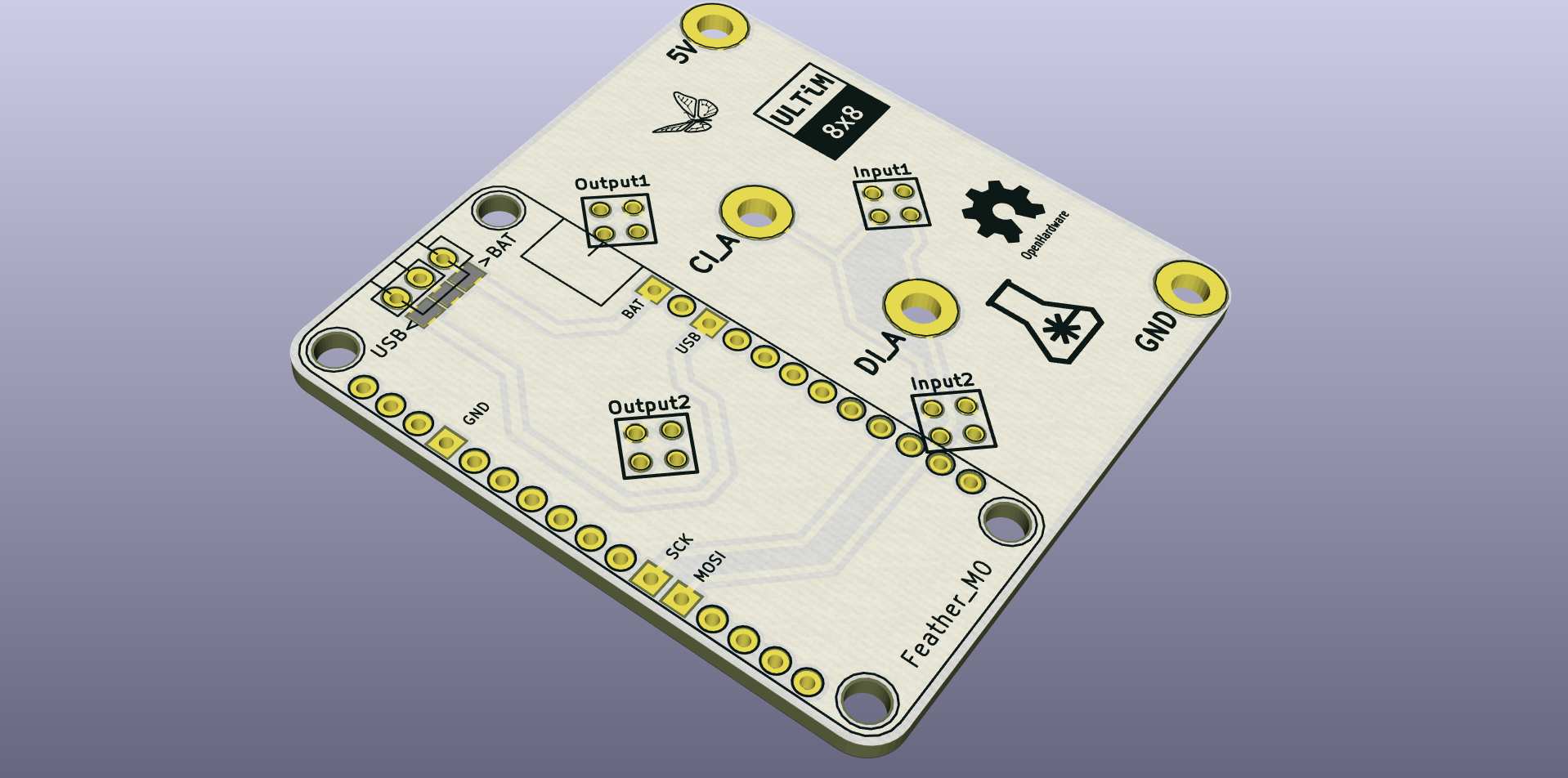

An add-on board to the Ultim8x8 LED Matrix for mounting an Adafruit Feather M0.
Use 4 pin male headers on ultim8x8 at either of two possible locations -- Input1/Output1 or Input2/Output2
Use a 2.54mm pitch slide switch/header+jumper mounted either at JP1 or JP2, to select between USB supply or BAT (external LiPo).
Instead of using a Switch, use shorting pads near the switch pads to permanently select one of the two supply options - USB or BAT.
Feather v3 bill of materials (BOM)
10 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Input1 | header_2x2pos_th_male | P1 |
| 1 | Output1 | header_2x2pos_th_male | P2 |
| 1 | 5V | Screw | P3 |
| 1 | GND | Screw | P4 |
| 1 | Input2 | header_2x2pos_th_male | P5 |
| 1 | Output2 | header_2x2pos_th_male | P6 |
| 1 | CI_A | Screw | P7 |
| 1 | DI_A | Screw | P9 |
| 1 | Feather_M0 | FEATHER_M0_2 | H1 |
| 1 | PWR_SEL | switch_spdt | JP1 |
Feather v3 design files
The KiCad project lives in the wyolum/ultim8x8 repository on GitHub; these links point at the commit this page was built from.
Feather v3: common questions
How big is the Feather v3 PCB?
The Feather v3 measures 52.1 × 52.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Feather v3?
10 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Feather v3 design files?
From the wyolum/ultim8x8 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Feather v3 design in my own project?
The repository has no license, so all rights stay with wyolum. Use it as a reference, and ask the author before reusing the design.
More boards in ultim8x8
Earlier revisions in the repo: feather_v2
