MD-Dumper old stm32F4

X-death25·MD-Dumper_old_stm32F4·Kicad/MD Dumper Classic.kicad_pcb

MD-Dumper old stm32F4 PCB layout, top view — open source STM32 board by X-death25
Simulate this board

About the MD-Dumper old stm32F4 PCB

MD-Dumper old stm32F4 is an open source STM32 PCB design by X-death25, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100.1 × 72.8 mm, with 5 components from 3 distinct parts.

Its main chip is the DIL40, from the STM32 family. Other key parts include the 74LS273. By type, the board carries 3 ICs and 1 connector.

It belongs with the retro computing designs in this gallery.

From the project

Sega Megadrive Dumper based on STM32F4 (BluePillV2)

MD Dumper is an USB Sega Megadrive cartridge Dumper : Hardware is based on STM32F4 (BluePillV2) : STM32F4x1 MiniF4 https://github.com/WeActTC/MiniSTM32F4x1 New version also add some developpement feature witch can be usefull for Megadrive developper.

You just need an USB-C to USB. Connect the dumper to the PC and wait blue led activation. Insert game cartridge. Start the software. Enjoy !

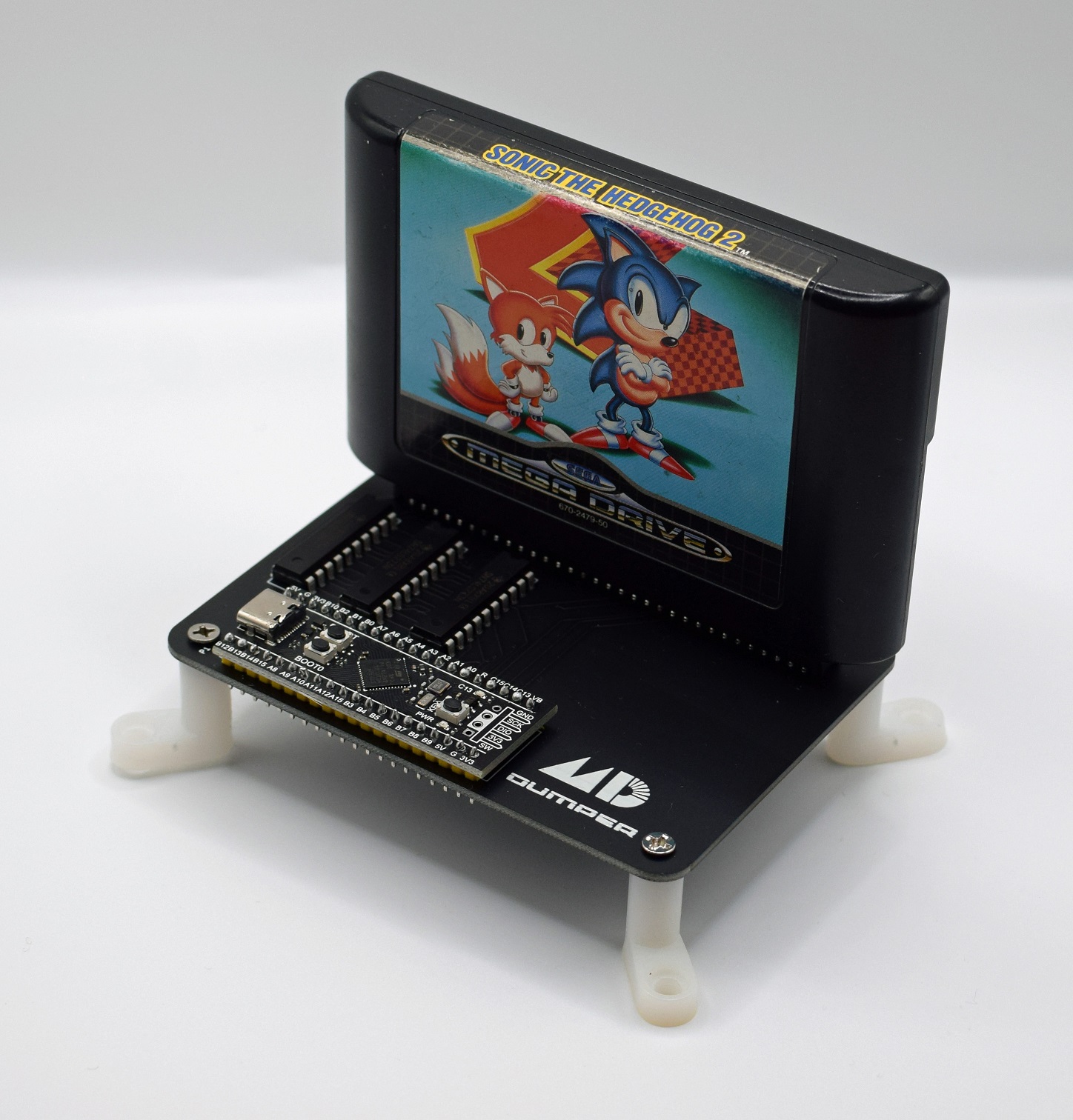

MD-Dumper old stm32F4, from the project README
From the project README

Main components on the MD-Dumper old stm32F4

74LS273

MD-Dumper old stm32F4 bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
3
74LS273
U1, U2, U3
1
DIL40
P1
1
MD_Connector_H
Classic 12/2020

MD-Dumper old stm32F4 design files

The KiCad project lives in the X-death25/MD-Dumper_old_stm32F4 repository on GitHub; these links point at the commit this page was built from.

MD-Dumper old stm32F4: common questions

What microcontroller does the MD-Dumper old stm32F4 use?

The MD-Dumper old stm32F4 is built around the DIL40, from the STM32 family.

How big is the MD-Dumper old stm32F4 PCB?

The MD-Dumper old stm32F4 measures 100.1 × 72.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MD-Dumper old stm32F4?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the MD-Dumper old stm32F4 design files?

From the X-death25/MD-Dumper_old_stm32F4 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MD-Dumper old stm32F4 design in my own project?

Yes, under the terms of its GPL-3.0 license, which X-death25 chose for the repository.

Can I test firmware for the MD-Dumper old stm32F4 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
