Vfo controller PCB layout, top view — open source STM32 board by xflyingcat

About the Vfo controller PCB

Vfo controller is an open source STM32 PCB design by xflyingcat, published on GitHub under the MIT license. It is a 2-layer board measuring 56 × 50 mm, with 53 components from 25 distinct parts.

Its main chip is the STM32F102C8T6, from the STM32 family. Other key parts include the XC6206 and MT6701. By type, the board carries 19 resistors, 17 capacitors, 6 connectors, 4 ICs, 1 crystal and 1 inductor.

It belongs with the rf & radio designs in this gallery.

From the project

External VFO controller with magnetic encoder for the Xiegu G90 HF transceiver

# CAT VFO Controller for Xiegu G90 (STM32 + MT6701)

📺 Youtube video: VFO controller in action

Выносной магнитный валкодер (пульт управления) для КВ-трансивера Xiegu G90.

Проект разработан на базе неблокирующих конечных автоматов (FSM) для воссоздания классического «аналогового» и тактильно приятного ощущения плавной настройки, которого так не хватает штатным энкодерам.

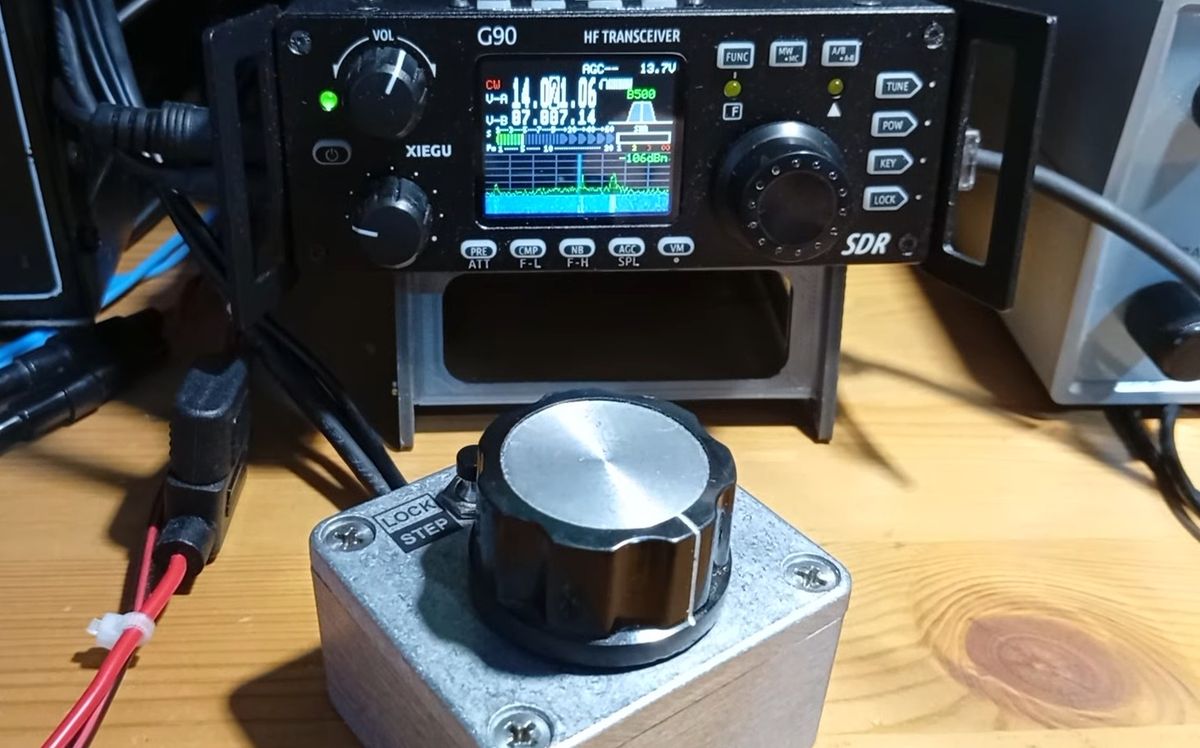

Vfo controller, from the project README
From the project README

Main components on the Vfo controller

STM32F102C8T6XC6206MT6701

Vfo controller bill of materials (BOM)

53 components, 25 distinct parts.

QtyPartRefs
1
STM32F102C8T6
STM32F103C8T6
U1
1
XC6206
78M05
U2
1
XC6206
LM1117-3.3V
U3
1
MT6701
U4
1
8 MHz
Y1
1
Power
CN1
1
PTT input
CN2
1
CAT
CN3
1
Buttons
CN4
1
LEDS
CN5
1
PLS4
J1
1
PC817XNNIP0F
PC1
1
SK14
VD1
1
FDLL4148
VD2
2
SMBJ5.0A-E3/52 UNIPOLAR
VD3, VD4
1
330uH
1K/100MHZ
FB1
11
100N
C1, C4, C5, C8, C10, C11, C12, C13 +3
3
22uF 25V
C2, C7, C16
2
22PF
C6, C9
1
22uF 10V
C14
Show 5 more
QtyPartRefs
6
100
R1, R2, R5, R6, R7, R8
1
1K
R3
6
10K
R4, R9, R10, R11, R16, R18
3
4K7
R12, R17, R19
3
330
R13, R14, R15

Vfo controller design files

The KiCad project lives in the xflyingcat/vfo_controller repository on GitHub; these links point at the commit this page was built from.

Vfo controller: common questions

What microcontroller does the Vfo controller use?

The Vfo controller is built around the STM32F102C8T6, from the STM32 family.

How big is the Vfo controller PCB?

The Vfo controller measures 56 × 50 mm, has 2 copper layers and is 1.59112 mm thick.

How many components are on the Vfo controller?

53 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Vfo controller design files?

From the xflyingcat/vfo_controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Vfo controller design in my own project?

Yes, under the terms of its MIT license, which xflyingcat chose for the repository.

Can I test firmware for the Vfo controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
