Simple sl2.1a usb hub

xunker·simple_sl2.1a_usb_hub

Simple sl2.1a usb hub PCB layout, top view — open source board by xunker

About the Simple sl2.1a usb hub PCB

Simple sl2.1a usb hub is an open source PCB design by xunker, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 25.4 × 25.4 mm, with 14 components from 5 distinct parts.

Other key parts include the SL2.1A. By type, the board carries 7 capacitors, 1 IC and 1 crystal.

It belongs with the usb & debug tools designs in this gallery.

From the project

A "SLuper SLimple" USB 2.0 Hub on a 1-square-inch board, using the SL2.1A IC

A 4-port USB 2.0 hub on a 1-inch (25.4mm) square board. Utilizes the (hand-solderable) SL2.1A USB Hub Controller with footprint for an optional crystal oscillator. Features length-matched data lines for maximum potato-performance.

Uses only surface-mount components and, except for the IC and (optional) crystal, all of them can be found in your parts bin or scavenged from other equipment.

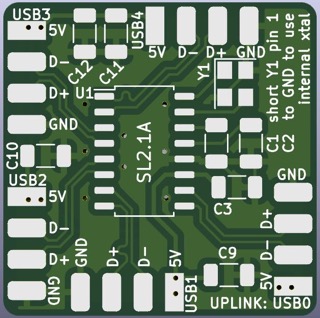

Simple sl2.1a usb hub, from the project README
From the project README

Main components on the Simple sl2.1a usb hub

SL2.1A

Simple sl2.1a usb hub bill of materials (BOM)

14 components, 5 distinct parts.

QtyPartRefs
1
SL2.1A
U1
1
Crystal_GND24
Y1
5
Conn_01x04_Male
USB0, USB1, USB2, USB3, USB4
3
10uF
C1, C2, C3
4
100uF/16V
C9, C10, C11, C12

Simple sl2.1a usb hub design files

The KiCad project lives in the xunker/simple_sl2.1a_usb_hub repository on GitHub; these links point at the commit this page was built from.

Simple sl2.1a usb hub: common questions

How big is the Simple sl2.1a usb hub PCB?

The Simple sl2.1a usb hub measures 25.4 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Simple sl2.1a usb hub?

14 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Simple sl2.1a usb hub design files?

From the xunker/simple_sl2.1a_usb_hub repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Simple sl2.1a usb hub design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
