Model m controller hbb

yatharthsood00·model-m-hbb

Model m controller hbb PCB layout, top view — open source STM32 board by yatharthsood00
Simulate this board

About the Model m controller hbb PCB

Model m controller hbb is an open source STM32 PCB design by yatharthsood00, published on GitHub under the MIT license. It is a 2-layer board measuring 145 × 50 mm, with 32 components from 23 distinct parts.

Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the XC6206P332MR-G. By type, the board carries 11 capacitors, 7 resistors, 5 connectors, 2 ICs, 2 transistors and 2 diodes.

It belongs with the keyboards designs in this gallery.

From the project

A drop-in replacement USB-C based controller for the IBM Model M. Compatible with the 101-key and SSK versions only.

This is a drop-in replacement controller for the IBM Model M with QMK and VIAL support. I designed this for myself, and my own Models M, as well as some that I have sold/gifted to friends in the custom keyboard community, which is why this is designed only for the Models M that I own (the 101 key ANSI version, and the Space Saving Keyboard).

Status (28-02-2026): PCBA produced via JLCPCB and delivered. Using without issues! TODO figuring out how to make the solenoid work.

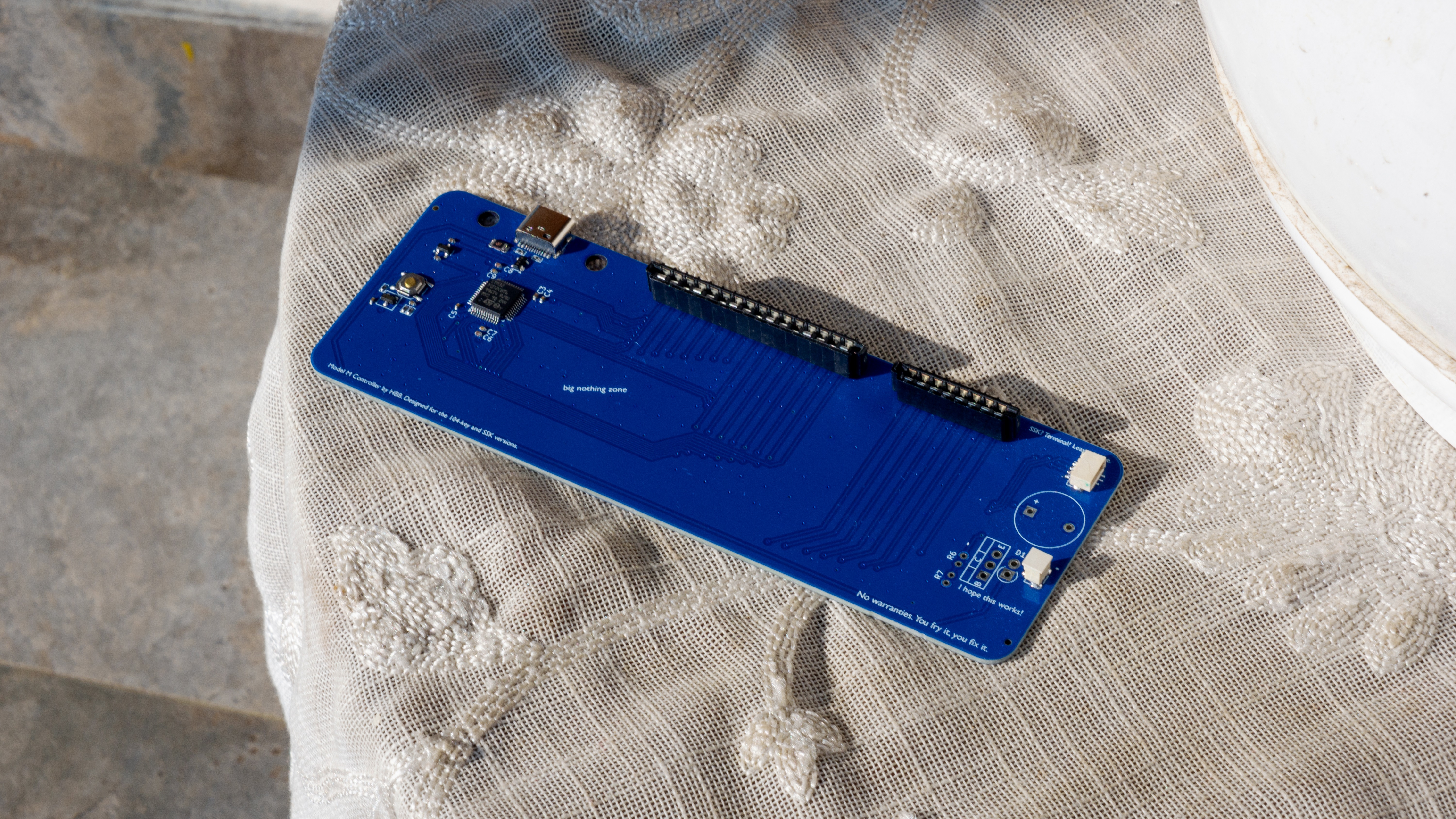

Model m controller hbb, from the project README
From the project README

Main components on the Model m controller hbb

XC6206P332MR-GSTM32F072CBT6

Model m controller hbb bill of materials (BOM)

32 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XC6206P332MR-G
XC6206P332MR
U1
1
STM32F072CBT6
U2
1
2N7002
Q1
1
~
Q2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
CONN_01X16_SOCKET
Conn_01x16_Socket
J2
1
CONN_01X08_SOCKET
Conn_01x08_Socket
J3
1
JST SH 4-pin
J4
1
JST SH 2-pin
J5
1
Buzzer
BZ1
1
ASMD1206-050
F1
1
TS-1187A-B-A-B
SW1
1
~
D1
1
PRTR5V0U2X
D2
1
CL05A105KA5NQNC
10uF
C1
3
CL05A105KA5NQNC
1uF
C2, C10, C11
3
4.7UF
4.7uf
C3, C6, C8
4
100NF
100nF
C4, C5, C7, C9
2
5.1K
R1, R2
1
10K
R3
Show 3 more
QtyPartRefs
1
100K
R4
1
33K
R5
2
~
R6, R7

Model m controller hbb design files

The KiCad project lives in the yatharthsood00/model-m-hbb repository on GitHub; these links point at the commit this page was built from.

Model m controller hbb: common questions

What microcontroller does the Model m controller hbb use?

The Model m controller hbb is built around the STM32F072CBT6, from the STM32 family.

How big is the Model m controller hbb PCB?

The Model m controller hbb measures 145 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Model m controller hbb?

32 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Model m controller hbb design files?

From the yatharthsood00/model-m-hbb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Model m controller hbb design in my own project?

Yes, under the terms of its MIT license, which yatharthsood00 chose for the repository.
