About the My hackpad PCB

My hackpad is an open source PCB design by yesbro-lab, published on GitHub. It is a 2-layer board measuring 19.5 × 57.5 mm, with 4 components from 2 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 3 switches and 1 IC.

It belongs with the displays & leds designs in this gallery.

From the project

a hackpad

This is my custom 3-key mechanical macropad layout designed for the Hack Club Blueprint grant! I will be 3D printing this enclosure and hand-wiring the switches directly to the controller inside.

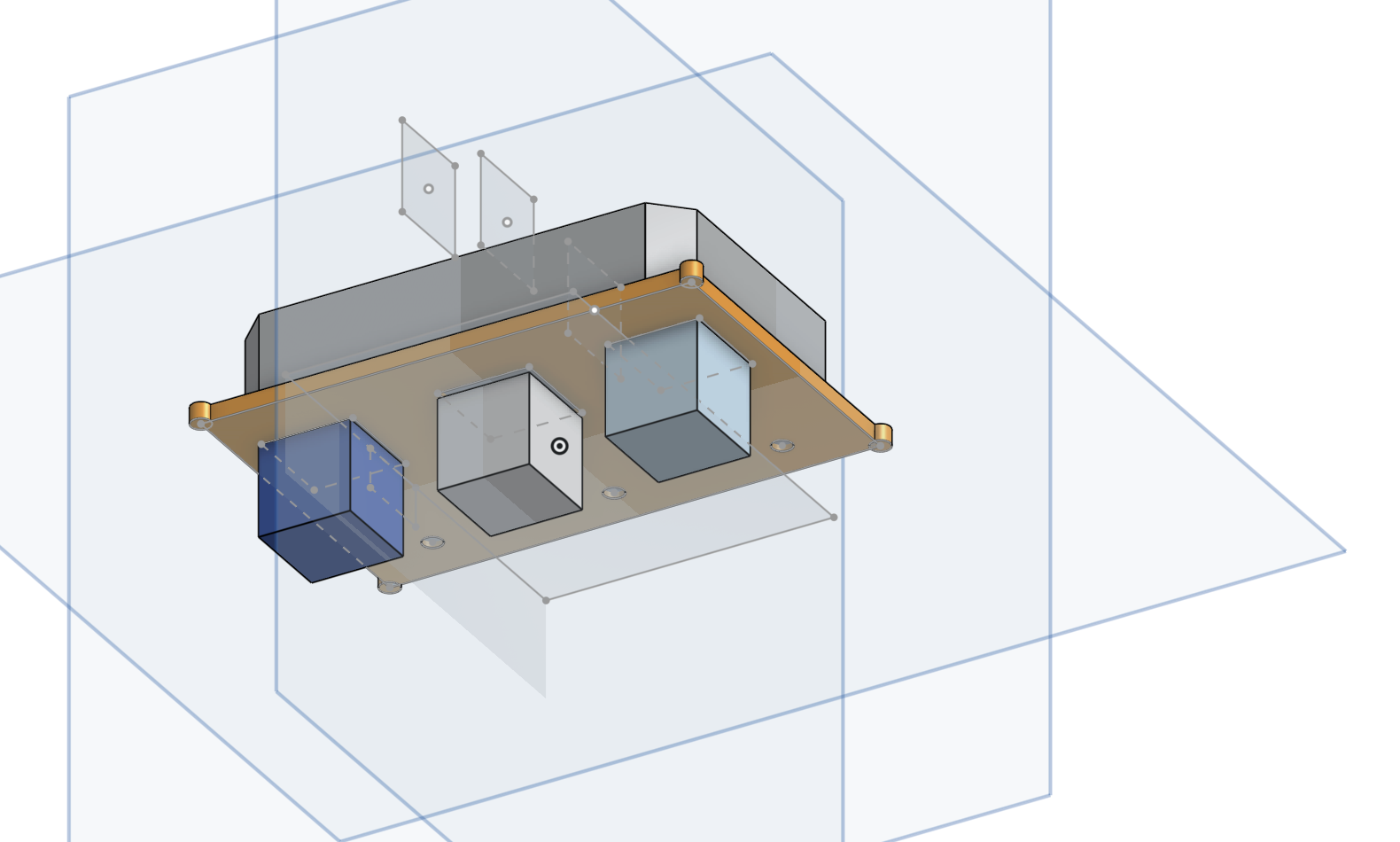

Fully designed in 3D CAD using Onshape. Features accurate 14mm x 14mm squares for mechanical switch snapping. 1.5mm top plate thickness** to ensure proper hardware locking.

My hackpad, from the project README
From the project README

Main components on the My hackpad

My hackpad bill of materials (BOM)

4 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
3
SW_Push
SW1, SW2, SW3

My hackpad design files

The KiCad project lives in the yesbro-lab/my_hackpad repository on GitHub; these links point at the commit this page was built from.

My hackpad: common questions

How big is the My hackpad PCB?

The My hackpad measures 19.5 × 57.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the My hackpad?

4 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the My hackpad design files?

From the yesbro-lab/my_hackpad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the My hackpad design in my own project?

The repository has no license, so all rights stay with yesbro-lab. Use it as a reference, and ask the author before reusing the design.
