Neige PCB layout, top view — open source STM32 board by ymkn

About the Neige PCB

Neige is an open source STM32 PCB design by ymkn, published on GitHub under the MIT license. It is a 2-layer board measuring 257 × 57.2 mm, with 92 components from 18 distinct parts.

Its main chip is the STM32F072CBU6, from the STM32 family. Other key parts include the USBLC6-2SC6 and XC6206P332MR-G. By type, the board carries 36 switches, 36 diodes, 11 capacitors, 3 ICs, 3 resistors and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

3 rows x 12 columns row-staggered low profile keyboard

A compact 3-rows 30% keyboard with 12-column row staggered layout in 12.75u width.

You can also customize the layout using Vial.

This project is licensed under the MIT License, see the LICENSE file for details.

However, this does not apply to logo data (image files, KiCAD footprints, etc.) included in the resources of this project.

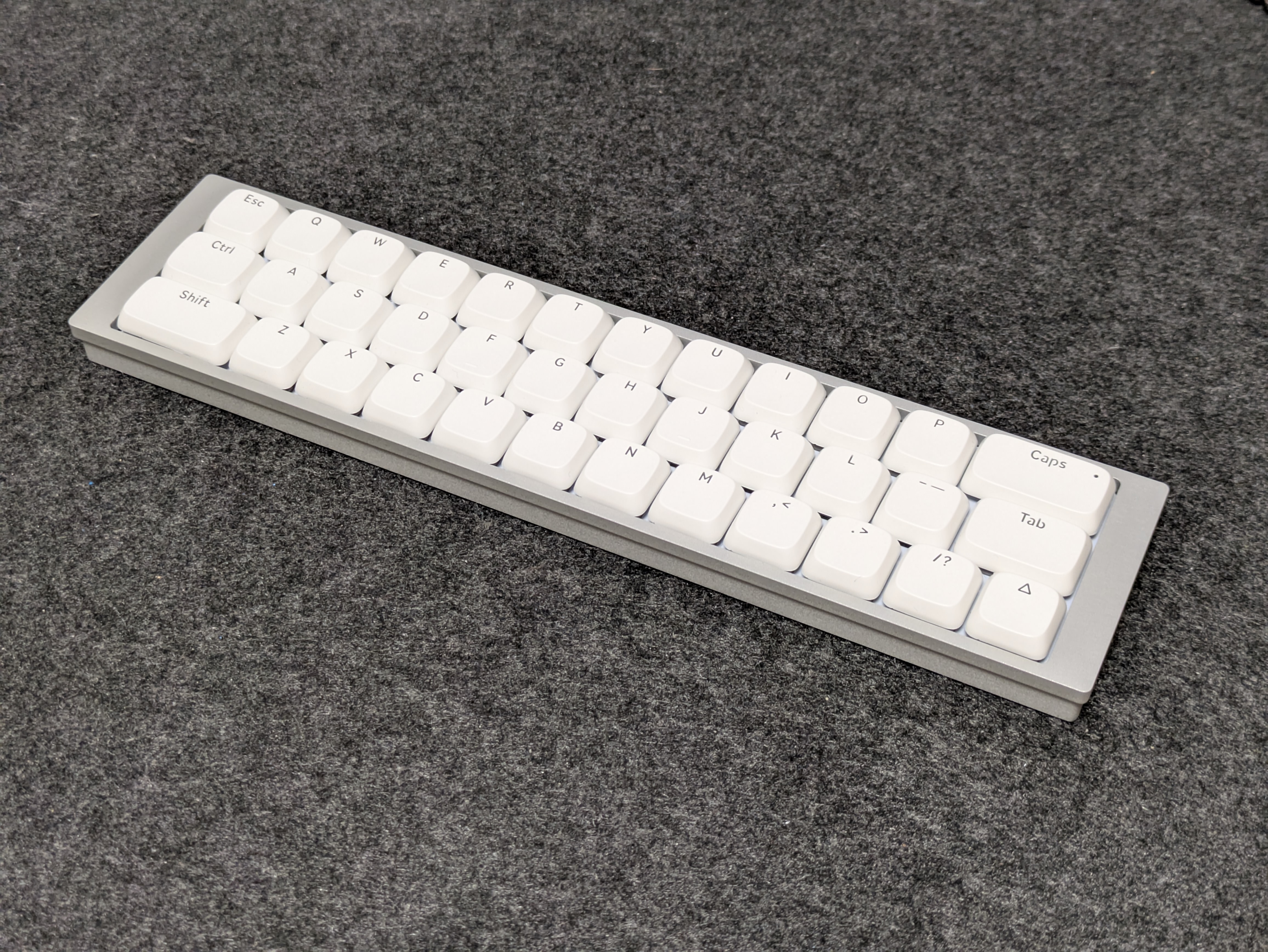

Neige, from the project README
From the project README

Main components on the Neige

USBLC6-2SC6XC6206P332MR-GSTM32F072CBU6

Neige bill of materials (BOM)

92 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
XC6206P332MR-G
XC6206P332MR
U2
1
STM32F072CBU6
U3
1
TYPE-C 16PIN 2MD(073)
J1
1
SW_Push
BTN_BOOT1
32
CPG135001S30
SW_Push
SW1, SW4, SW5, SW6, SW7, SW8, SW9, SW10 +24
1
CPG135001S30
SW_Push
SW2
2
CPG135001S30
SW_Push
SW3, SW34
1
CPG135001S30
SW_Push
SW35
36
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +28
1
CBM160808U600T
FerriteBead
FB1
2
CL10A106KP8NNNC
10uF
C3, C4
5
CL05B104KO5NNNC
100nF
C5, C6, C7, C8, C10
1
CL05B103KB5NNNC
10nF
C9
2
CL05A475MP5NRNC
4.7uF
C11, C12
1
CL05A105KA5NQNC
1uF
C13
2
0402WGF5101TCE
5.1K
R2, R3
1
0402WGF1002TCE
10K
R4

Neige design files

The KiCad project lives in the ymkn/neige repository on GitHub; these links point at the commit this page was built from.

Neige: common questions

What microcontroller does the Neige use?

The Neige is built around the STM32F072CBU6, from the STM32 family.

How big is the Neige PCB?

The Neige measures 257 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Neige?

92 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Neige design files?

From the ymkn/neige repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Neige design in my own project?

Yes, under the terms of its MIT license, which ymkn chose for the repository.

Can I test firmware for the Neige without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
