00Key PCB layout, top view — open source NXP board by ZeroZeroOne-dev

About the 00Key PCB

00Key is an open source NXP PCB design by ZeroZeroOne-dev, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 304.8 × 170.8 mm, with 256 components from 13 distinct parts.

Its main chip is the Teensy4.1, from the NXP family. By type, the board carries 1 IC, 1 transistor and 1 LED.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

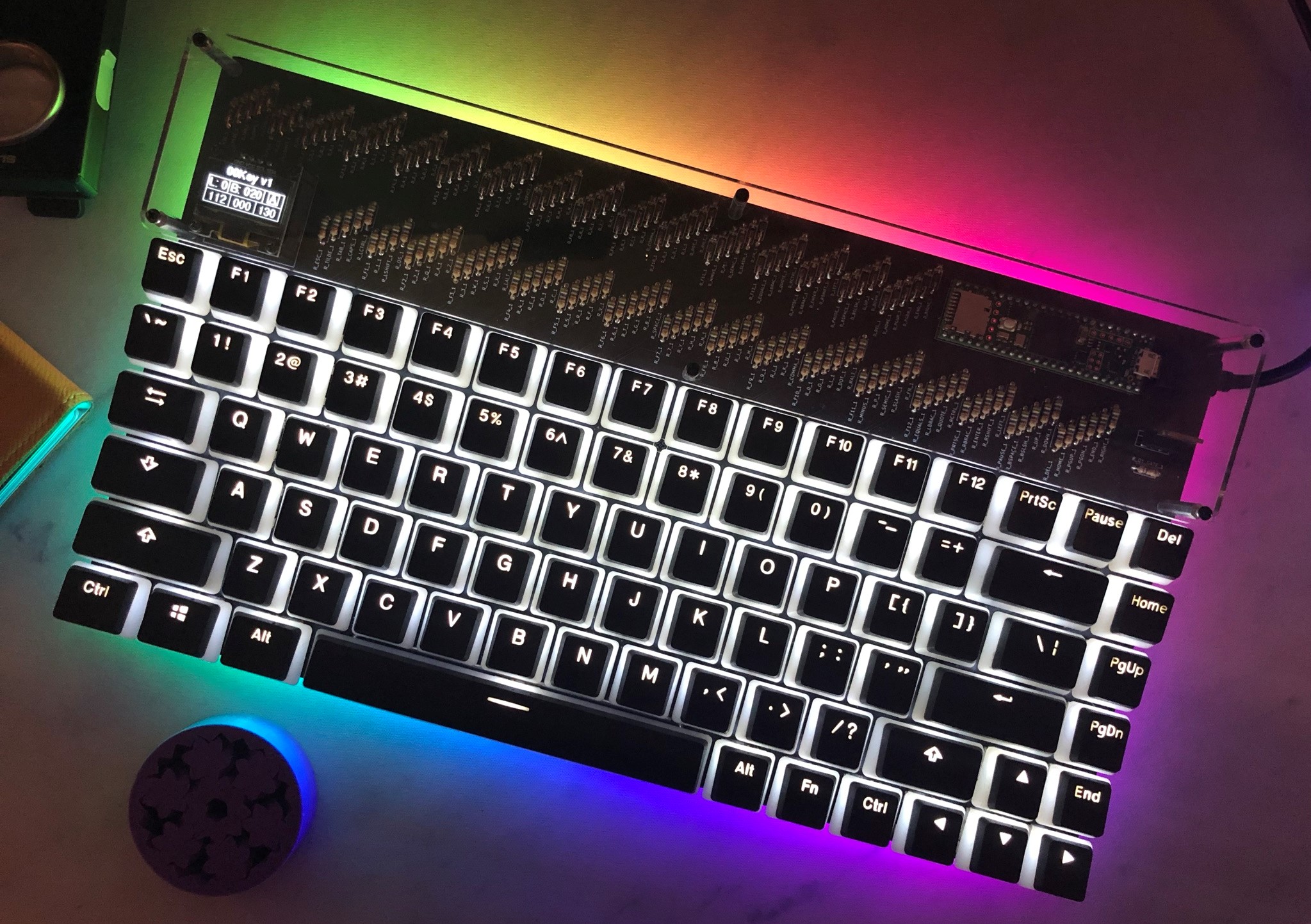

00Key a 75% keyboard

- Teensy 4.1 development board - SSD1306 0.96 Inch OLED Display - MX & Alps switch support - Backlight (single color) support - RGB Underglow support

Custom firmware, has layer, OLED, Backlight, Underglow support

- capslock status - Selected layer - backlight intensity - Underglow collor selection (RGB Values)

3 Effects - Solid color - Rotating rainbow - Off

- Designed in kicad - Used freerouting for traces

00Key, from the project README
From the project README

Main components on the 00Key

Teensy4.1

00Key bill of materials (BOM)

256 components, 13 distinct parts.

QtyPartRefs
1
Teensy4.1
U1
1
IRLZ44N
Q1
84
D
D_0_1, D_1_1, D_2_1, D_3_1, D_4_1, D_5_1, D_6_1, D_7_1 +76
73
MX-LED
MX_0_1, MX_1_1, MX_2_1, MX_3_1, MX_4_1, MX_5_1, MX_6_1, MX_7_1 +65
2
MX-LED
MX_BSLSH_1, MX_TAB_1
1
MX-LED
MX_BSPACE_1
2
MX-LED
MX_CAPS_1, MX_RSHIFT_1
2
MX-LED
MX_ENTER_1, MX_LSHIFT_1
3
MX-LED
MX_LALT_1, MX_LCTRL_1, MX_OS_1
1
MX-LED
MX_SPACE_1
84
470
R_0_1, R_1_1, R_2_1, R_3_1, R_4_1, R_5_1, R_6_1, R_7_1 +76
1
10K
R_Q1_GATE_1
1
SSD1306
OLED1

00Key design files

The KiCad project lives in the ZeroZeroOne-dev/00Key repository on GitHub; these links point at the commit this page was built from.

00Key: common questions

What microcontroller does the 00Key use?

The 00Key is built around the Teensy4.1, from the NXP family.

How big is the 00Key PCB?

The 00Key measures 304.8 × 170.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 00Key?

256 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the 00Key design files?

From the ZeroZeroOne-dev/00Key repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 00Key design in my own project?

Yes, under the terms of its GPL-3.0 license, which ZeroZeroOne-dev chose for the repository.

Can I test firmware for the 00Key without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
