Kakave
About the Kakave PCB
Kakave is an open source PCB design by ZPilot, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 80 × 96.2 mm, with 20 components from 14 distinct parts.
Other key parts include the 27C512, 7400 and BlackPill_F401. By type, the board carries 7 resistors, 4 connectors, 4 capacitors, 3 ICs and 2 diodes.

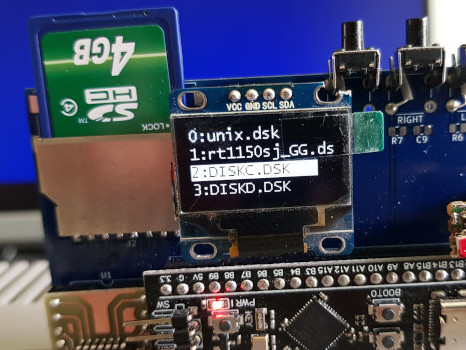

From the project
v1.1.0 Правки - исправлена ошибка загрузки игр с ITO дисков - добавлена поддержка больших экранов на чипе CH1116 - добавлен CE build
Main components on the Kakave
Kakave bill of materials (BOM)
20 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 27C512 | DIP-28_W15.24mm | U1 |
| 1 | 7400 | DIP-14_W7.62mm | U2 |
| 1 | BlackPill_F401 | BlackPill_F401 | U3 |
| 1 | con_snp_15 | snp15 | J1 |
| 1 | SD_Card | SD_TE_2041021 | J2 |
| 1 | SSD_1306 | PinSocket_1x04_P2.54mm_Vertical | J3 |
| 1 | UART | PinHeader_1x03_P2.54mm_Vertical | J4 |
| 2 | k580va87 | DIP-20_W7.62mm | D1, D2 |
| 1 | 300pF | C_Disc_D7.5mm_W2.5mm_P5.00mm | C1 |
| 3 | 100nF | C_0805_2012Metric | C7, C8, C9 |
| 2 | 3.3k | R_0805_2012Metric | R1, R2 |
| 3 | 100 | R_0805_2012Metric | R5, R6, R7 |
| 1 | R_Network08 | R_Array_SIP10 | RN1 |
| 1 | R_Network08 | R_Array_SIP9 | RN2 |
Kakave design files
The KiCad project lives in the ZPilot/kakave repository on GitHub; these links point at the commit this page was built from.
- Layoutcad/control.kicad_pcb
Kakave: common questions
How big is the Kakave PCB?
The Kakave measures 80 × 96.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kakave?
20 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kakave design files?
From the ZPilot/kakave repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Kakave design in my own project?
Yes, under the terms of its GPL-3.0 license, which ZPilot chose for the repository.
