Power Board with Switches and LEDs
About the Power Board with Switches and LEDs
Power Board with Switches and LEDs is an open source PCB design by 01binary, published on GitHub. It is a 2-layer board measuring 58.4 × 46.5 mm, with 14 components from 3 distinct parts.
By type, the board carries 5 connectors, 5 LEDs and 4 switches.
It belongs with the robotics & motion designs in this gallery.
From the project

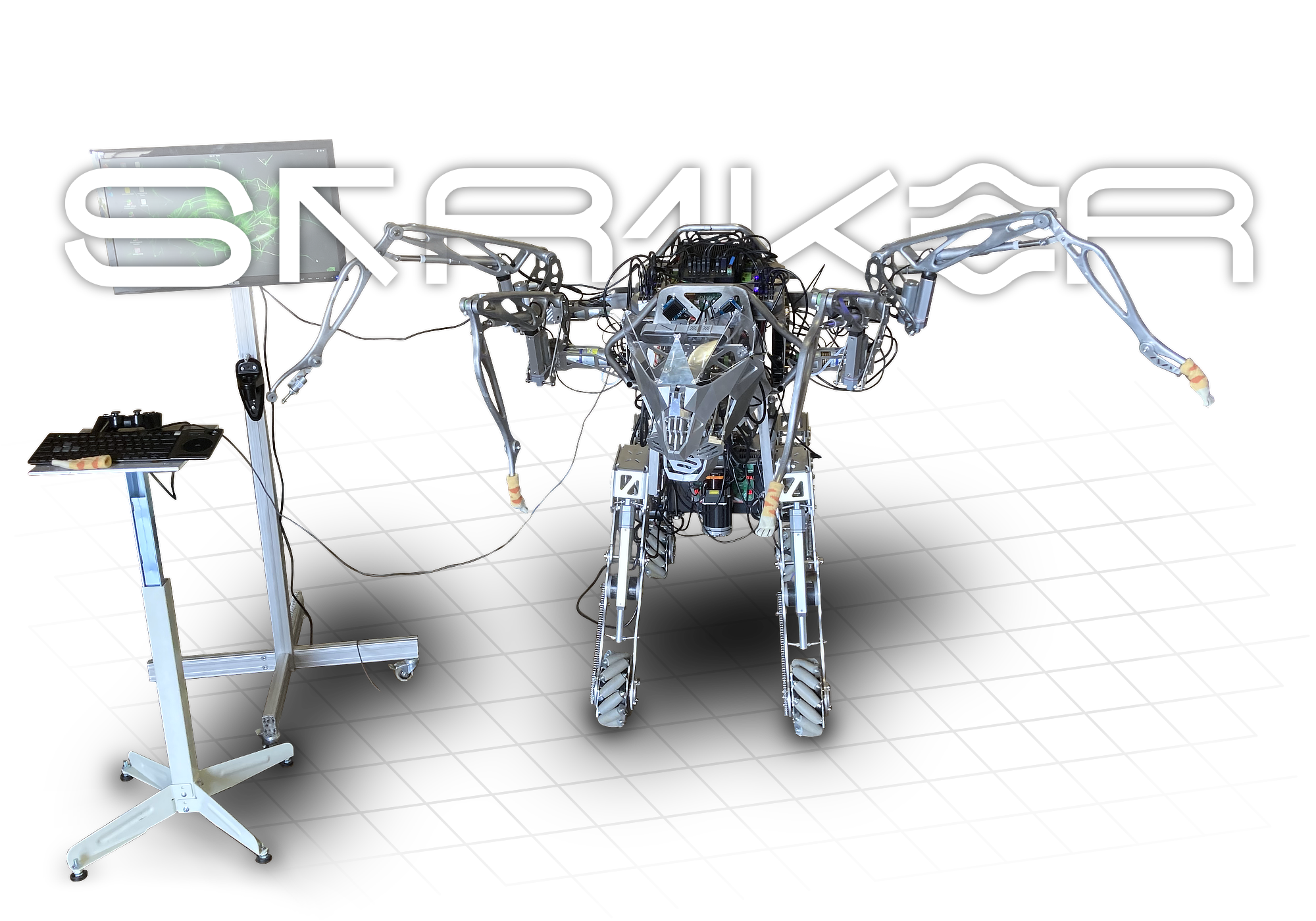

A human-scale mech integrated with Robot Operating System
Striker is a human-scale teleoperated mech built with metal casting, CNC machining, 3D printing, sheet metal parts, tube frame chassis, and pre-made components.
This open-source educational project features custom electronics and Robot Operating System integration, demonstrating how to design and build a large robot that combines mobility, sensing, and manipulation.
Power Board with Switches and LEDs bill of materials (BOM)
14 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | XT60PW-F | XT-60-Measured | J1, J2, J3, J4, J5 |
| 4 | ExternalSwitch | ExternalSwitch | SW1, SW2, SW3, SW4 |
| 5 | 3V 20mA | LED_D3.0mm | LED1, LED2, LED3, LED4, LED5 |
Power Board with Switches and LEDs design files
The KiCad project lives in the 01binary/str1ker repository on GitHub; these links point at the commit this page was built from.
Power Board with Switches and LEDs: common questions
How big is the Power Board with Switches and LEDs?
The Power Board with Switches and LEDs measures 58.4 × 46.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Power Board with Switches and LEDs?
14 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Power Board with Switches and LEDs design files?
From the 01binary/str1ker repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Power Board with Switches and LEDs design in my own project?
The repository has no license, so all rights stay with 01binary. Use it as a reference, and ask the author before reusing the design.
