About the Static AD PCB

Static AD is an open source AVR/Arduino PCB design by 0xCB-dev, published on GitHub under the Custom license license. It is a 2-layer board measuring 223.8 × 108.2 mm, with 111 components from 22 distinct parts.

Its main chip is the ATMEGA328-P, from the AVR/Arduino family. By type, the board carries 50 diodes, 43 LEDs, 6 resistors, 4 capacitors, 2 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

40% Mechanical TH Keyboard

Licence | OSHWA :-------------------------:|:-------------------------: | [](https://certification.oshwa.org/de000114.html)

qmk clone cd qmkfirmware export LTO=Y To go to bootloader hold the ESC key while plugging in (or RESET switch, then hold the BOOT switch, release RESET, release BOOT). The board should now appear in lsusb (or device manager). make 0xcb/static:via:flash

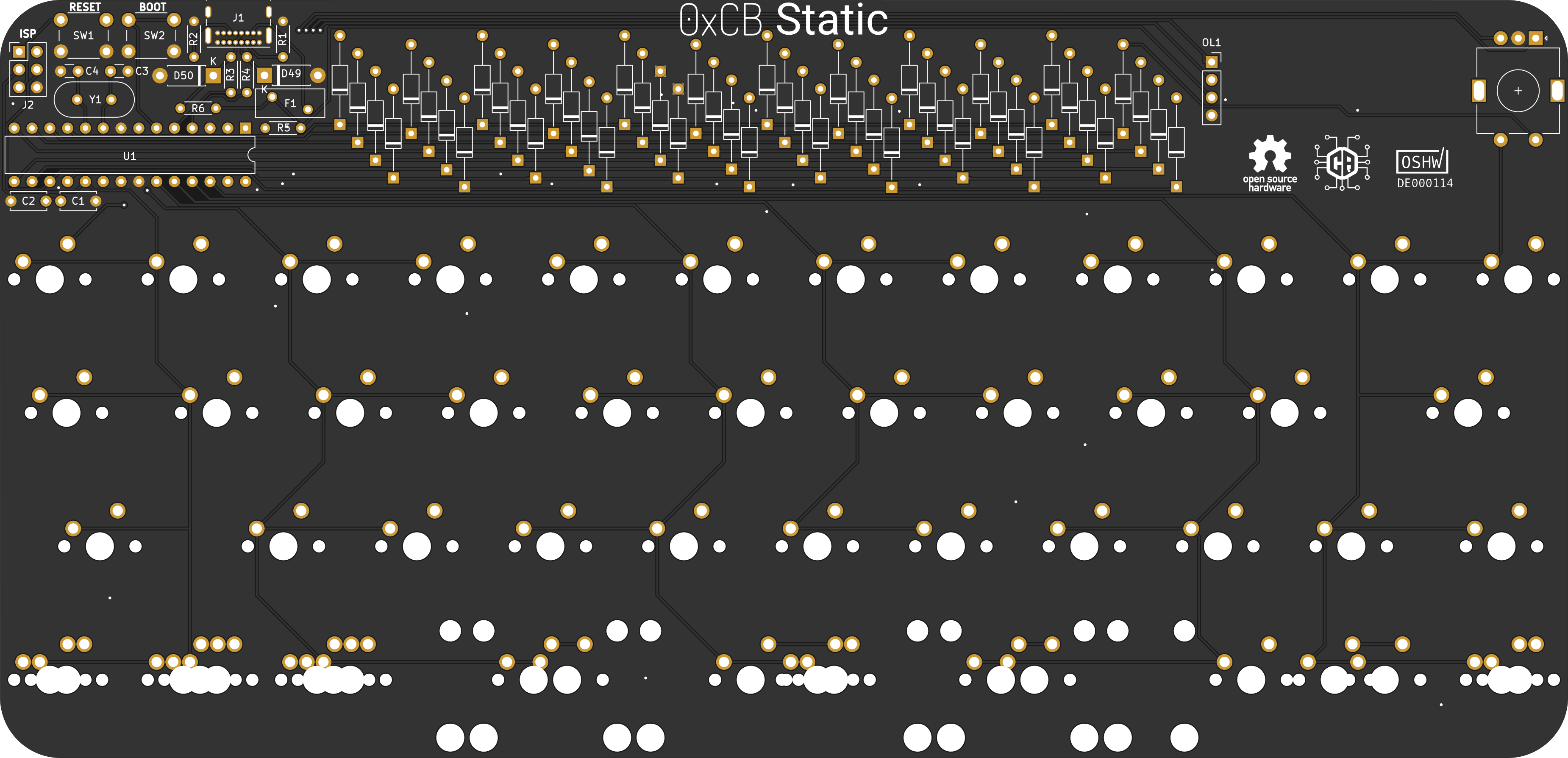

Static AD, from the project README
From the project README

Main components on the Static AD

ATMEGA328-P

Static AD bill of materials (BOM)

111 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328-P
ATmega328-P
U1
1
16MHZ
16MHz
Y1
1
USB_C_Receptacle_USB2.0
J1
1
500MA
500mA
F1
1
EC11
MX12
1
OLED
OL1
1
RESET
SW1
1
BOOT
SW2
37
MX-NoLED
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +29
2
MX-NoLED
MX13, MX35
2
MX-NoLED
MX23, MX25
1
MX-NoLED
MX39
1
MX-NoLED
MX41
2
1N4148
D1, D48
46
1N4148
D2, D3, D4, D5, D6, D7, D8, D9 +38
2
1N4729
D49, D50
2
0.1UF
0.1uF
C1, C2
2
20PF
20pF
C3, C4
2
5.1K
R1, R2
2
75
R3, R4
Show 2 more
QtyPartRefs
1
10K
10k
R5
1
1.5K
1.5k
R6

Static AD design files

The KiCad project lives in the 0xCB-dev/0xCB-Static repository on GitHub; these links point at the commit this page was built from.

Static AD: common questions

What microcontroller does the Static AD use?

The Static AD is built around the ATMEGA328-P, from the AVR/Arduino family.

How big is the Static AD PCB?

The Static AD measures 223.8 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Static AD?

111 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Static AD design files?

From the 0xCB-dev/0xCB-Static repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Static AD design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Static AD without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
