10x-Aero·ESC-Development-Board

ESC-Development-Board layout, top view — open source STM32 board by 10x-Aero

About the ESC-Development-Board

ESC-Development-Board is an open source STM32 PCB design by 10x-Aero, published on GitHub. It is a 4-layer board measuring 66 × 61.8 mm, with 82 components from 31 distinct parts.

Its main chip is the STM32F051K8Ux, from the STM32 family. Other key parts include the DRV8300DPWR, TPS62932 and INA180B2. By type, the board carries 34 capacitors, 29 resistors, 6 transistors, 5 ICs, 4 diodes and 3 inductors.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

A 6S AM32-compatible ESC built as a proof of concept for learning how to design an ESC from scratch

https://github.com/user-attachments/assets/5f652ef7-dc9c-4700-bebd-08a81333550c

A 6S AM32-compatible ESC built as a proof of concept for learning how to design an ESC from scratch. It gets a motor spinning — that's about the extent of what's guaranteed. Beyond that, expect rough edges.

The design is sloppy in places. If you spot schematic, layout, or component choices that actively work against basic ESC functionality, open an issue.

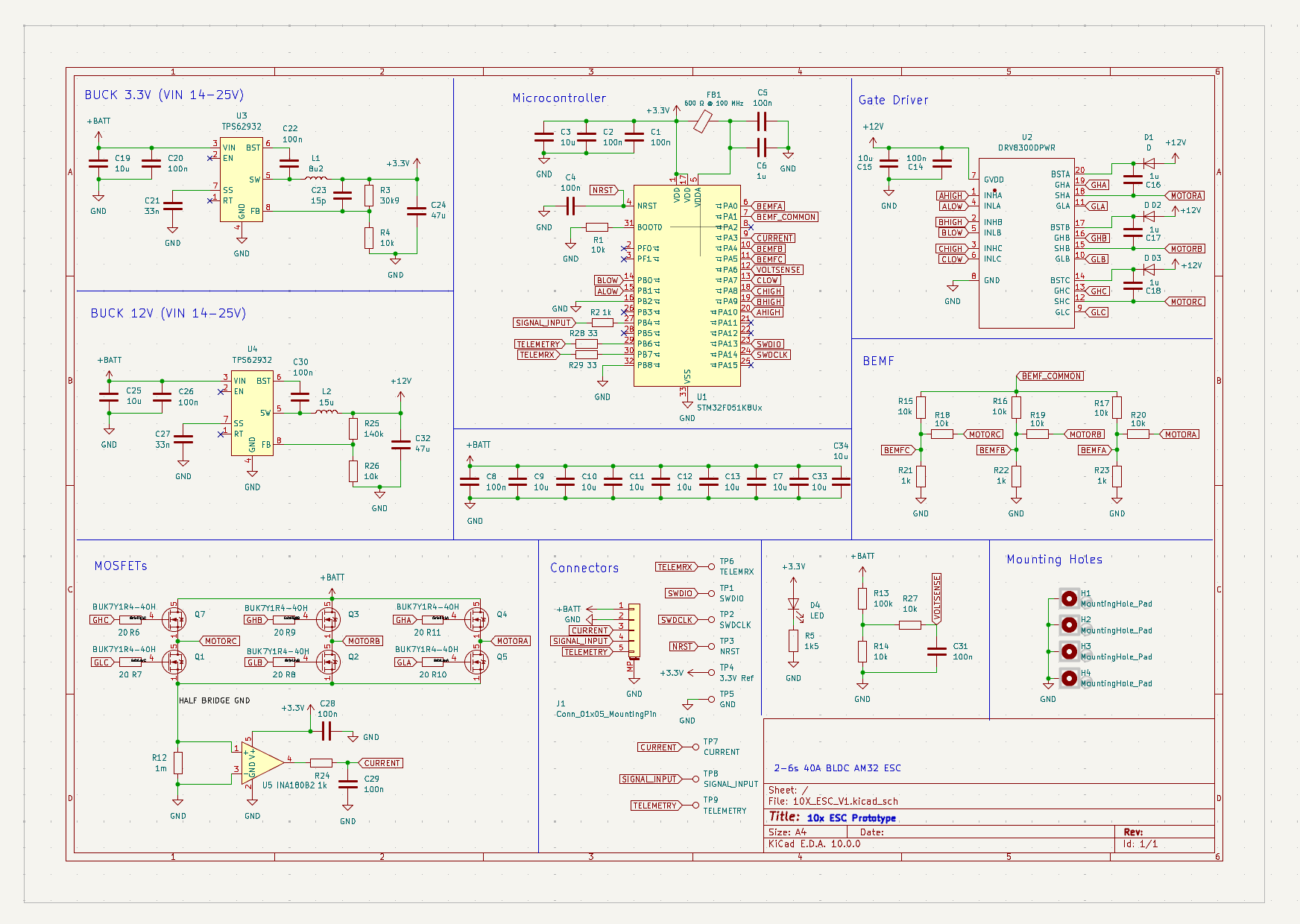

ESC-Development-Board, from the project README
From the project README

Main components on the ESC-Development-Board

STM32F051K8UxDRV8300DPWRTPS62932INA180B2

ESC-Development-Board bill of materials (BOM)

82 components, 31 distinct parts.

QtyPartRefs
1
STM32F051K8Ux
U1
1
DRV8300DPWR
U2
2
TPS62932
U3, U4
1
INA180B2
U5
6
BUK7Y1R4-40H
Q1, Q2, Q3, Q4, Q5, Q7
1
Conn_01x05_MountingPin
J1
3
D
D1, D2, D3
1
LED
D4
1
600 Ω @ 100 MHz
FB1
1
8u2
L1
1
15u
L2
10
CA0522618
100n
C1, C2, C4, C5, C14, C22, C28, C29 +2
2
10u
C3, C15
1
1u
C6
8
10u
C7, C9, C10, C11, C12, C13, C33, C34
1
100n
C8
3
1u
C16, C17, C18
2
10u
C19, C25
2
100n
C20, C26
2
33n
C21, C27
Show 11 more
QtyPartRefs
1
15p
C23
2
47u
C24, C32
11
10k
R1, R4, R14, R15, R16, R17, R18, R19 +3
5
1k
R2, R21, R22, R23, R24
1
30k9
R3
1
1k5
R5
6
20
R6, R7, R8, R9, R10, R11
1
1m
R12
1
100k
R13
1
140k
R25
2
33
R28, R29

ESC-Development-Board design files

The KiCad project lives in the 10x-Aero/ESC-Development-Board repository on GitHub; these links point at the commit this page was built from.

ESC-Development-Board: common questions

What microcontroller does the ESC-Development-Board use?

The ESC-Development-Board is built around the STM32F051K8Ux, from the STM32 family.

How big is the ESC-Development-Board?

The ESC-Development-Board measures 66 × 61.8 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ESC-Development-Board?

82 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESC-Development-Board design files?

From the 10x-Aero/ESC-Development-Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESC-Development-Board design in my own project?

The repository has no license, so all rights stay with 10x-Aero. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESC-Development-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
