UConsole Ext IO Breakout

57Bravo·uConsole_Ext_IO_Breakout·pcb/ext_pcb/ext_pcb.kicad_pcb

UConsole Ext IO Breakout layout, top view — open source board by 57Bravo

About the UConsole Ext IO Breakout

UConsole Ext IO Breakout is an open source PCB design by 57Bravo, published on GitHub. It is a 2-layer board measuring 78 × 37.5 mm, with 10 components from 6 distinct parts.

It belongs with the dev boards & breakouts and audio designs in this gallery.

From the project

uConsole External I/O Breakout

This is a generic breakout board for ClockWorkPI's uConsole. I didn't order the cellular module, and wanted to use the external I/O slot. Here's the "REV: A" SWAG based off of renderings of the PCB.

I have not verified this design. Once I get the boards back from OshPark, stuffed, and tested on the uConsole; I'll tag a release.

Also, I don't work for CPI, and this is not an official board from them. I just threw their logo on there, since the uConsole is their gear. Show CPI some love, and checkout their products! :)

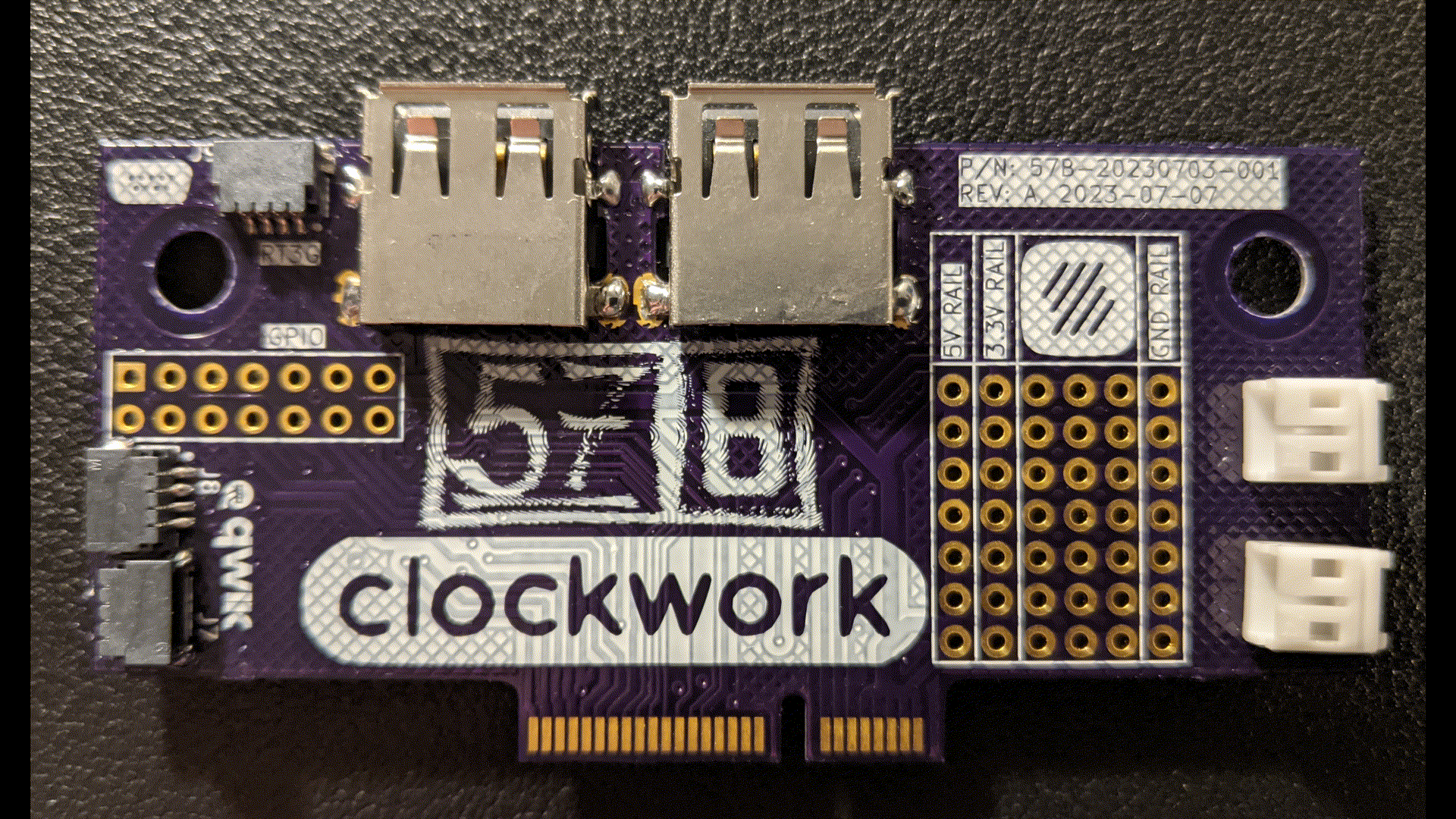

UConsole Ext IO Breakout, from the project README
From the project README

UConsole Ext IO Breakout bill of materials (BOM)

10 components, 6 distinct parts.

QtyPartRefs
1
SFW15R-2STE1LF
J1
2
GSB12J21C1EU
J2, J3
1
Conn_02x07_Counter_Clockwise
J4
2
S2B-XH-A(LF)(SN)
J5, J6
3
SM04B-SRSS-TB(LF)(SN)
J7, J8, J9
1
~
P1

UConsole Ext IO Breakout design files

The KiCad project lives in the 57Bravo/uConsole_Ext_IO_Breakout repository on GitHub; these links point at the commit this page was built from.

UConsole Ext IO Breakout: common questions

How big is the UConsole Ext IO Breakout?

The UConsole Ext IO Breakout measures 78 × 37.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the UConsole Ext IO Breakout?

10 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the UConsole Ext IO Breakout design files?

From the 57Bravo/uConsole_Ext_IO_Breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the UConsole Ext IO Breakout design in my own project?

The repository has no license, so all rights stay with 57Bravo. Use it as a reference, and ask the author before reusing the design.
