Grove Universal Board

74th·74th-oshw-projects·74TH-G050-grove_universal_board/grove_universal_board.kicad_pcb

Grove Universal Board layout, top view — open source board by 74th

Simulate this board

About the Grove Universal Board

Grove Universal Board is an open source PCB design by 74th, published on GitHub under the MIT license. It is a 2-layer board measuring 33 × 22.9 mm, with 31 components from 12 distinct parts.

Other key parts include the AMS1117. By type, the board carries 4 modules, 2 capacitors, 2 resistors, 1 IC, 1 connector and 1 jumper.

From the project

74th のPCBデータを公開しているプロジェクト

Shop: https://74th.booth.pm/items/5935664

- semantics: pdf kicanvas - pcb: kicanvas

- Grove コネクタを搭載 - 2、3 つのスルーホールが接続された状態になっており、ワイヤーを挿入してはんだ実装することができる（通常のユニバーサル基板はワイヤー実装面でスルーホールに挿入せず、スルーホール上のランドに接続して実装する） - 電源 5V 供給時に、3.3V を使用できるレギュレータを追加可能にする - ジャンパ JP1 を接続すると、ユニバーサル基板上の VCC に Grove の VCC を直結させることができる - I2C 用のプルアップ抵抗を接続可能

シルクでラインで繋がれたスルーホール同士は接続しています。ワイヤーを差し込んで配線することが可能です。一般的なユニバーサル基板とは異なることを留意してください。

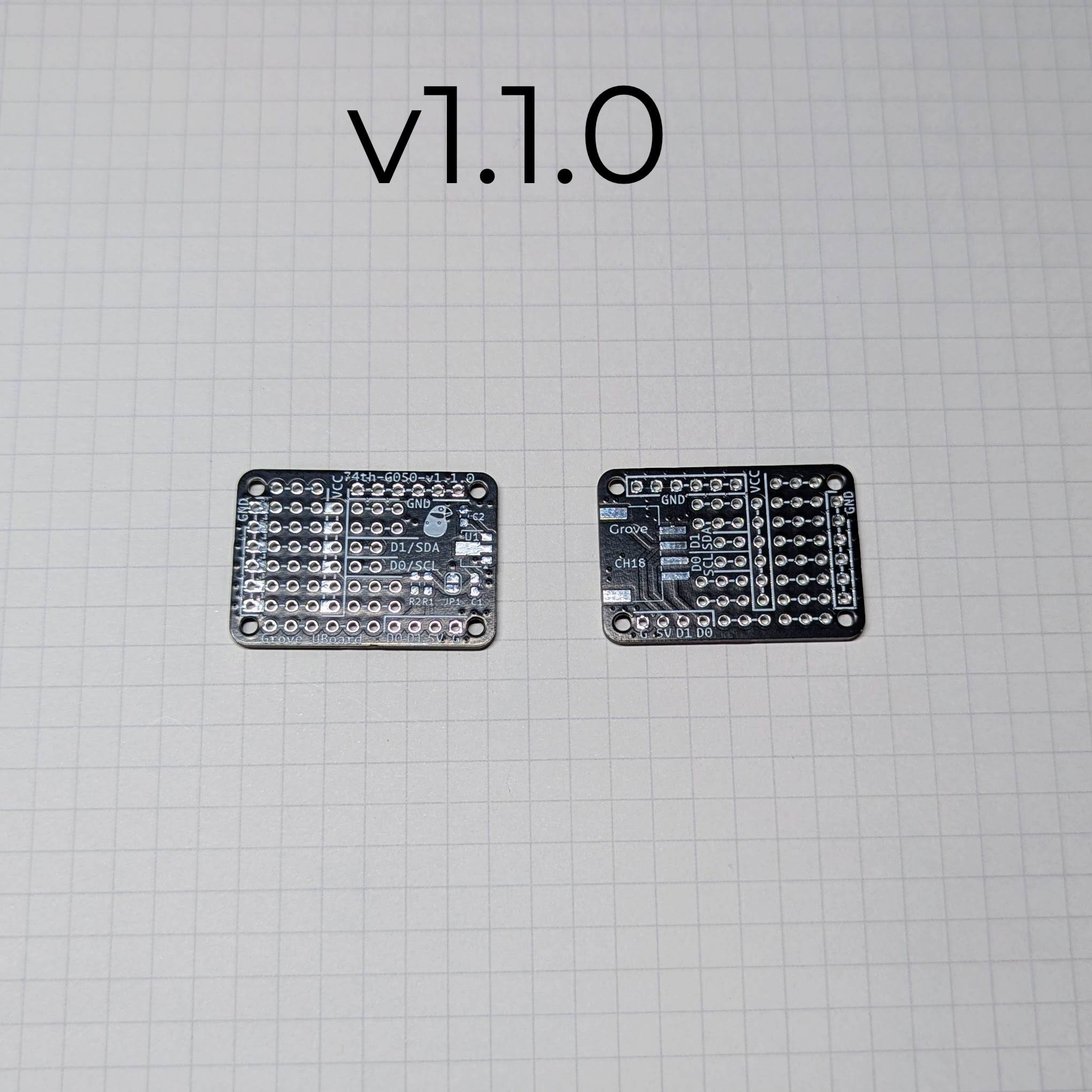

Grove Universal Board, from the project README — From the project README

Main components on the Grove Universal Board

Grove Universal Board bill of materials (BOM)

31 components, 12 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	AMS1117	SOT-89-3	U1
4	Hole_M2_2.0	Hole_M2_2.0	M1, M2, M3, M4
1	Grove	Connector_HY-2.0_SMD_4Pin	CH18
13	Pin_1	PinOut_Pin_3	CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8 +5
2	Pin_1	PinOut_Pin_2	CH10, CH11
1	Pin_1	PinOut_Pin_4_GND	CH12
2	Pin_1	PinOut_Pin_3_Square	CH17, CH19
1	Pin_1	PinOut_Universal-Board_bridge6_with-Jumper	CH20
1	Pin_1	PinOut_Universal-Board_bridge6_with-Jumper_Square	CH21
1	Jumper_2_Open	SolderJumper-2	JP1
2	10u	Capacitor_0603_1608	C1, C2
2	1k	Register_0603_1608	R1, R2

Grove Universal Board design files

The KiCad project lives in the 74th/74th-oshw-projects repository on GitHub; these links point at the commit this page was built from.

Grove Universal Board: common questions

How big is the Grove Universal Board?

The Grove Universal Board measures 33 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Grove Universal Board?

31 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Grove Universal Board design files?

From the 74th/74th-oshw-projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Grove Universal Board design in my own project?

Yes, under the terms of its MIT license, which 74th chose for the repository.
