About the WebShooter PCB

WebShooter is an open source ESP32 PCB design by 8aChristian, published on GitHub under the MIT license. It is a 2-layer board measuring 38 × 38 mm, with 6 components from 6 distinct parts.

Its main chip is the PINSOCKET_1X08_P2.54MM, from the ESP32 family. Other key parts include the AMS1117-3.3. By type, the board carries 2 connectors, 2 diodes, 1 IC and 1 transistor.

It belongs with the iot & wireless, sensors and wearables designs in this gallery.

From the project

PCB for a webshooter control by a force sensor, solenoid valve and a brushless motor.

WebShooter is a compact, high-reliability wearable controller PCB designed for rapid biosignal/force acquisition, low-latency electronic valve actuation, and external brushless motor ESC control.

Built around the ESP32-C3 SuperMini (RISC-V 32-bit architecture), the system is engineered to withstand intense inductive transients and severe electromagnetic interference (EMI) from high-power loads while providing precision analog readings from a Force Sensing Resistor (FSR).

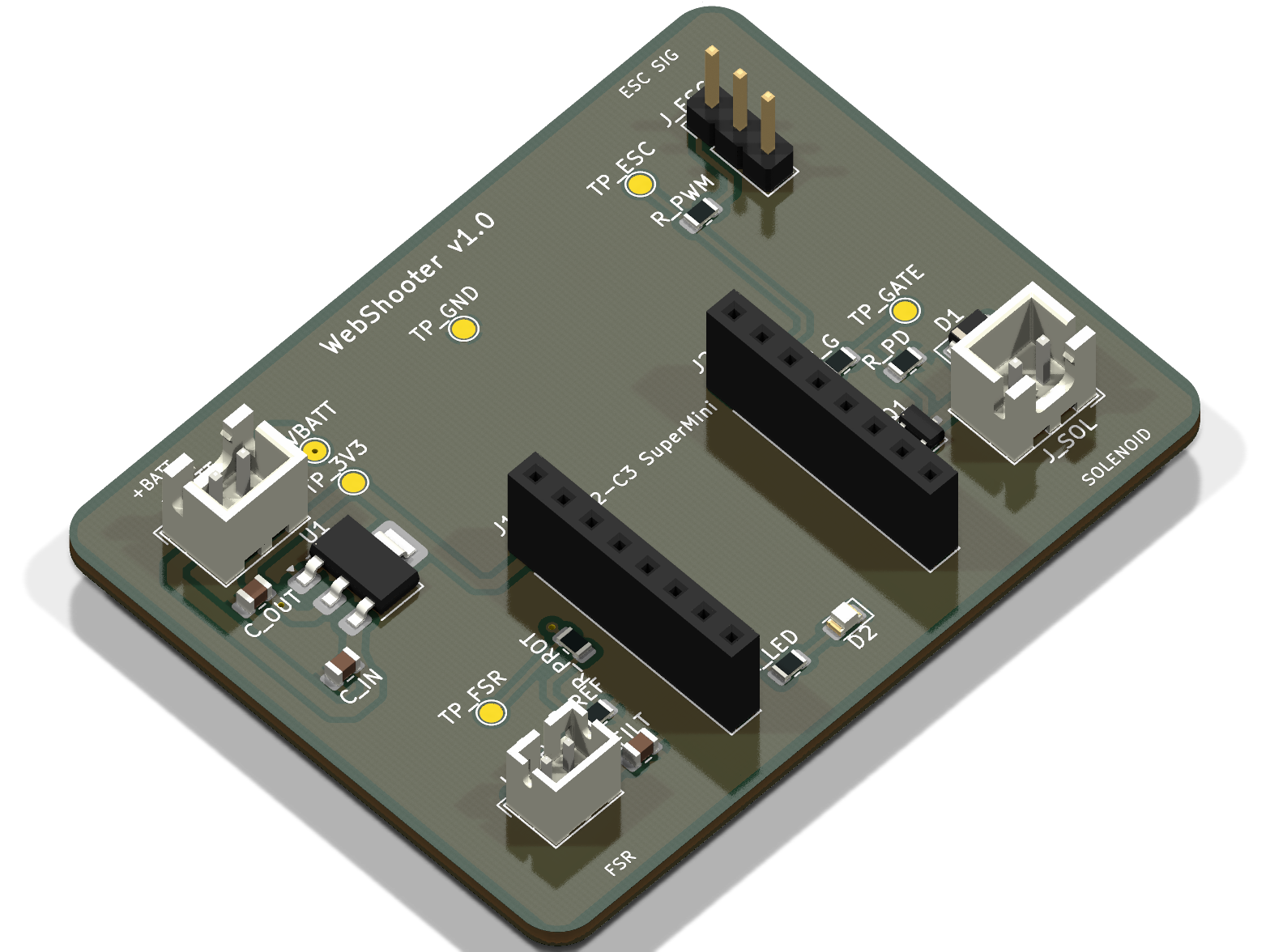

WebShooter, from the project README
From the project README

Main components on the WebShooter

AMS1117-3.3

WebShooter bill of materials (BOM)

6 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
AO3400A
Q1
1
PINSOCKET_1X08_P2.54MM
ESP32_LEFT
J1
1
PINSOCKET_1X08_P2.54MM
ESP32_RIGHT
J2
1
SS14
D1
1
LED_0805_BLUE
LED_STAT
D2

WebShooter design files

The KiCad project lives in the 8aChristian/WebShooterPcb repository on GitHub; these links point at the commit this page was built from.

WebShooter: common questions

What microcontroller does the WebShooter use?

The WebShooter is built around the PINSOCKET_1X08_P2.54MM, from the ESP32 family.

How big is the WebShooter PCB?

The WebShooter measures 38 × 38 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WebShooter?

6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WebShooter design files?

From the 8aChristian/WebShooterPcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the WebShooter design in my own project?

Yes, under the terms of its MIT license, which 8aChristian chose for the repository.

Can I test firmware for the WebShooter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
