ATinyStompbox
About the ATinyStompbox PCB
ATinyStompbox is an open source AVR/Arduino PCB design by 8BitMixtape, published on GitHub. It is a 2-layer board measuring 33.3 × 120 mm, with 50 components from 31 distinct parts.
Its main chip is the ATTINY85-20SU, from the AVR/Arduino family. Other key parts include the 7805. By type, the board carries 19 connectors, 16 resistors, 5 diodes, 4 capacitors, 2 ICs and 1 switch.

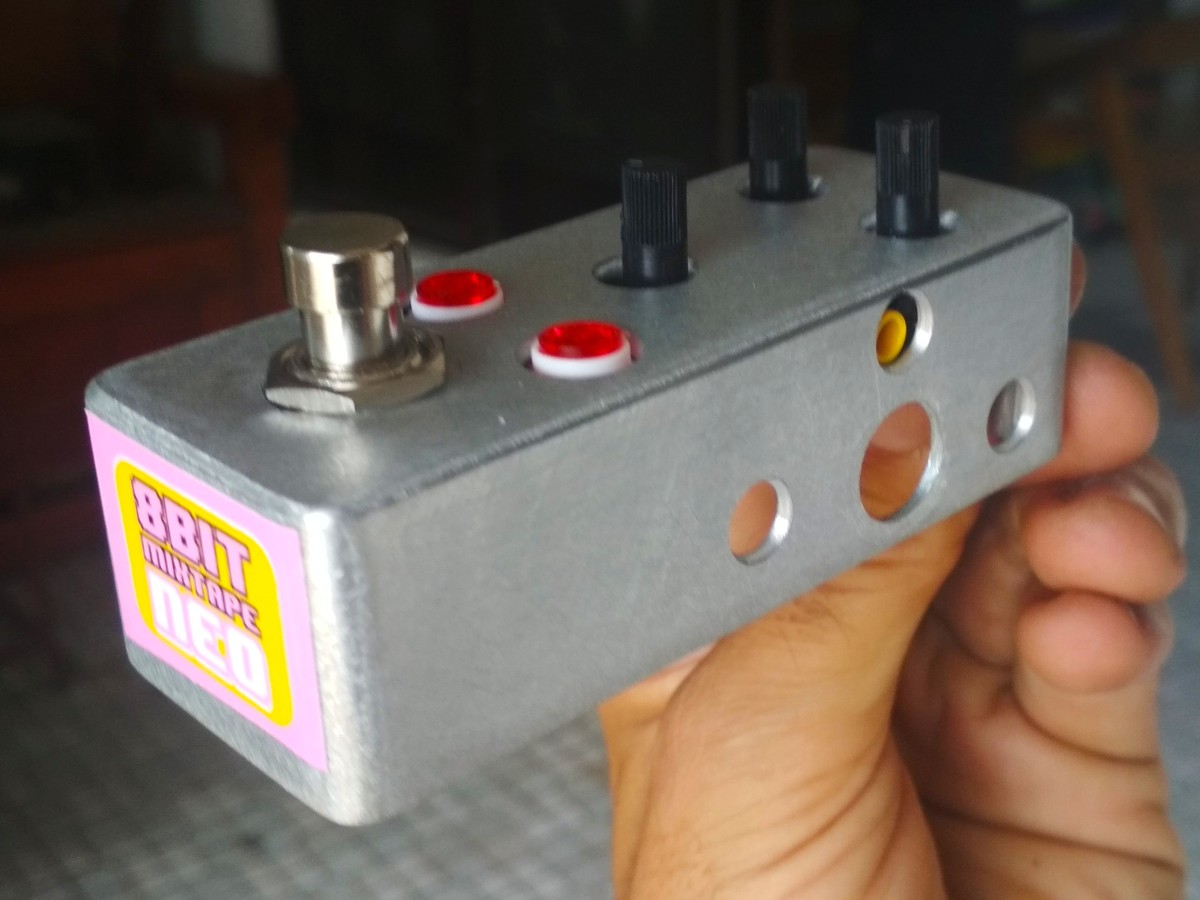

From the project
See folder ATinyStompbox. And a dedicated custom footprint library "8BitMixtape_Stomp.pretty"
Main components on the ATinyStompbox
ATinyStompbox bill of materials (BOM)
50 components, 31 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATTINY85-20SU | SOIC-8_3.9x4.9mm_Pitch1.27mm | U1 |
| 1 | 7805 | TO-252-3_TabPin2 | U2 |
| 2 | CONN_01X05 | Socket_Strip_Angled_1x05_Pitch2.54mm | J1, J6 |
| 2 | JACK_TRS_6PINS | AUDIO-JACK-TRS-SMD | J2, J4 |
| 2 | CONN_01X02_MALE | R_0612 | J5, J19 |
| 1 | USB_OTG | USB_Micro-B | J7 |
| 1 | CONN_02X03 | Socket_Strip_Straight_2x03_Pitch2.54mm | J8 |
| 1 | BARREL_JACK | 9V_BARREL_JACK | J9 |
| 2 | CONN_01X04 | Socket_Strip_Straight_1x04_Pitch2.54mm | J11, J14 |
| 1 | Con_JackIN | Socket_Strip_Straight_1x02_Pitch2.54mm | J12 |
| 1 | Con_JackOUT | Socket_Strip_Straight_1x03_Pitch2.54mm | J13 |
| 1 | Con_DC | Socket_Strip_Straight_1x02_Pitch2.54mm | J15 |
| 1 | Con_BAT | Bat_connector | J16 |
| 1 | StompDrillHole | StompLoch | J17 |
| 1 | Con_3-5V | Bat_connector | J18 |
| 1 | BoardDimension | CaseDim | J20 |
| 1 | FullDimension | StompCase_Full | J21 |
| 1 | POT 10K lin | Mixtape_Pot_Alps_RK09K_Horizontal | POT1-CV1 |
| 1 | POT 10K lin Sleeve | Mixtape_Pot_Alps_RK09L_Sleve_Single_Horizontal | POT2-Main1 |
| 1 | POT 10k | Mixtape_Pot_Alps_RK09K_Horizontal | POT3-Vol1 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW_Push | SW_SPST_FSMSM | SW6 |
| 1 | LED | LED_PLCC_2835_Handsoldering | D1 |
| 1 | LED_Dual_CCA | Stomp_LED-Ring_DUAL | D2 |
| 1 | LED_NEO | Mixtape_NEO_WS2812B | D3 |
| 2 | LED | LED_D3.0mm | D-NEO1, D-OUT1 |
| 3 | 100nF | C_1206_HandSoldering | C1, C2, C3 |
| 1 | 10uF | C_1206_HandSoldering | C4 |
| 7 | 22K | R_1206_HandSoldering | R1, R2, R3, R4, R5, R6, R7 |
| 3 | 330 | R_1206_HandSoldering | R8, R13, R16 |
| 3 | 4.7K | R_1206_HandSoldering | R9, R10, R12 |
| 3 | 1K | R_1206_HandSoldering | R11, R14, R15 |
ATinyStompbox design files
The KiCad project lives in the 8BitMixtape/ATinyStomp repository on GitHub; these links point at the commit this page was built from.
ATinyStompbox: common questions
What microcontroller does the ATinyStompbox use?
The ATinyStompbox is built around the ATTINY85-20SU, from the AVR/Arduino family.
How big is the ATinyStompbox PCB?
The ATinyStompbox measures 33.3 × 120 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ATinyStompbox?
50 components, from 31 distinct parts. The full bill of materials is listed on this page.
Where can I download the ATinyStompbox design files?
From the 8BitMixtape/ATinyStomp repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ATinyStompbox design in my own project?
The repository has no license, so all rights stay with 8BitMixtape. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ATinyStompbox without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
