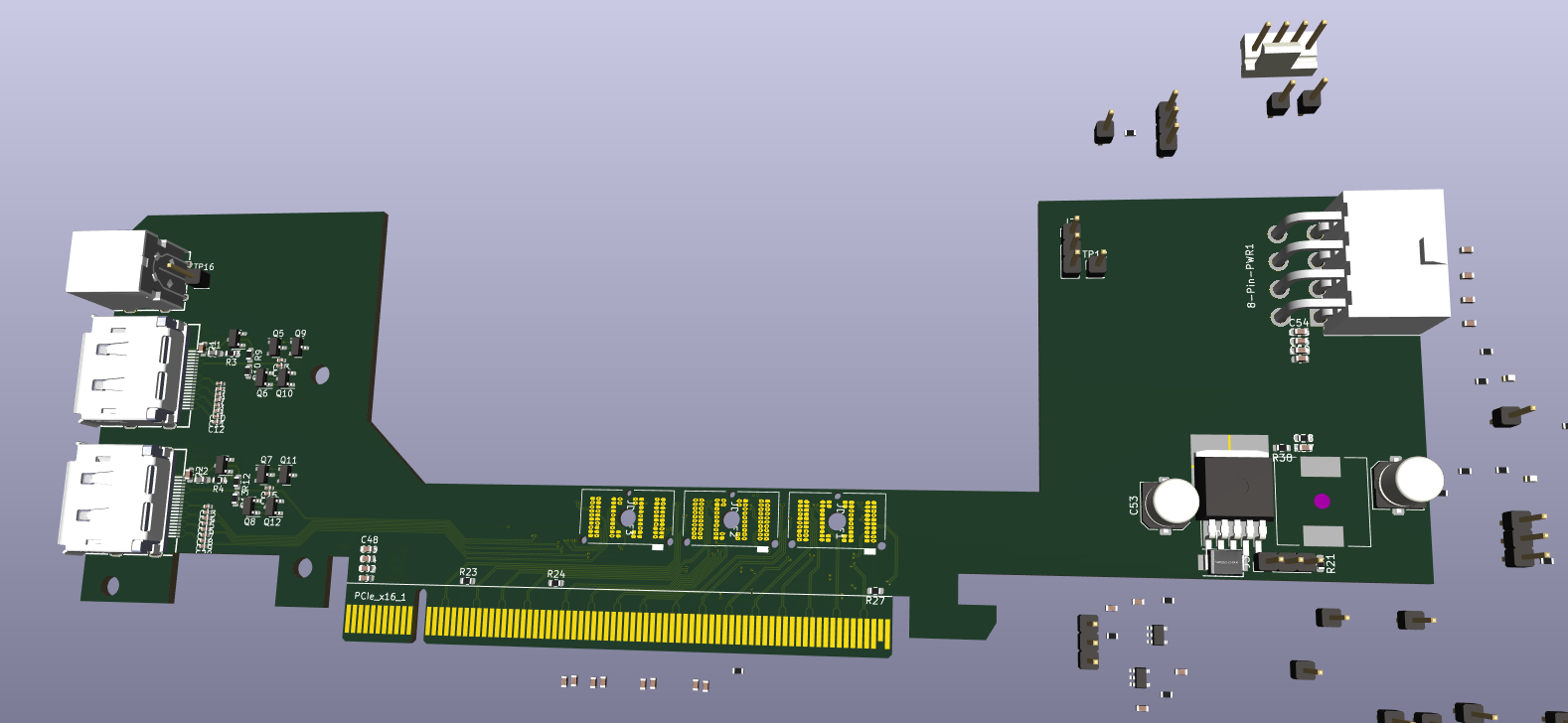

Dgff immobilizer
About the Dgff immobilizer PCB
Dgff immobilizer is an open source PCB design by a-little-wifi, published on GitHub. It is a 6-layer board measuring 203.7 × 69 mm, with 159 components from 57 distinct parts.
Other key parts include the sy6280, LM2596S-5 and 74LVC1G373. By type, the board carries 59 capacitors, 38 resistors, 16 test points, 12 transistors, 7 diodes and 6 connectors.
From the project
PCIe adapter for Dell DGFF laptop GPUs
A DGFF to PCIe adapter, based on my work on MXM Immobilizer (DGFF is just funny MXM)
Still extremely experimental and not anywhere near ready for use or testing DGFF pinouts taken from Dell Precision 7740 LA-H281P and Area51M LA-G881P boards The DGFF footprint's dimensions are unlikely to be accurate, it has been recreated from pixel measurements of a high-resolution image of a DGFF card. In any case they do not match the likely more accurate Framework Laptop 16"'s FXBeam footprint available elsewhere. This adapter is designed so far to work with Dell Precision and Alienware cards, their…
Main components on the Dgff immobilizer
Dgff immobilizer bill of materials (BOM)
159 components, 57 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | sy6280 | SOT-23-5 | U1, U2 |
| 1 | LM2596S-5 | TO-263-5_TabPin3 | U3 |
| 1 | 74LVC1G373 | SOT-23-6 | U4 |
| 1 | Fan_Tacho_PWM | FanPinHeader_1x04_P2.54mm_Vertical | M1 |
| 12 | 2N7002 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +4 |
| 1 | 3V3_SWITCH | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | VGA_DISABLE#_SWITCH | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | 5V_SWITCH | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | PWR_EN_SWITCH | PinHeader_2x03_P2.54mm_Vertical | J4 |
| 1 | PWR_LEVEL_SWITCH | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | TH_ALERT#_SWITCH | PinHeader_1x03_P2.54mm_Vertical | J6 |
| 1 | HC-5557-2*4AW HCTL(华灿天禄) | CONN-TH_8P-P4.20_5557-2X4AW | 8-Pin-PWR1 |
| 1 | DC-042E XKB Connectivity(中国星坤) | DC-IN-TH_DC-042E | DC1 |
| 2 | HYC16-DP20-178 HOAUC | DP-SMD_HYC16-DP20-178 | DP_1, DP_2 |
| 2 | Polyfuse | Fuse_0805_2012Metric | F1, F2 |
| 3 | DGFF | DGFF | JDGFF1, JDGFF2, JDGFF3 |
| 2 | DGFF_flipped | DGFF | JDGFF_flip_1, JDGFF_flip_2 |
| 1 | Bus_PCI_Express_x16 | BUS_PCIexpress_x16 | PCIe_x16_1 |
| 1 | TH_OVERT#_RESET | SW_SPST_EVQPE1 | SW1 |
| 1 | PEX_CLK_REQ# | PinHeader_1x01_P2.54mm_Vertical | TP1 |
Show 37 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PNL_PWR_EN | PinHeader_1x01_P2.54mm_Vertical | TP2 |
| 1 | PNL_BL_EN | PinHeader_1x01_P2.54mm_Vertical | TP3 |
| 1 | DGFF_ALERT# | PinHeader_1x01_P2.54mm_Vertical | TP4 |
| 1 | DGFF_IFP_HPD | PinHeader_1x01_P2.54mm_Vertical | TP5 |
| 1 | DGPU_TYPE# | PinHeader_1x01_P2.54mm_Vertical | TP6 |
| 1 | VGA_IDENTIFY | PinHeader_1x01_P2.54mm_Vertical | TP7 |
| 1 | MACO_EN | PinHeader_1x01_P2.54mm_Vertical | TP8 |
| 1 | GPU_GC6_FB_EN | PinHeader_1x01_P2.54mm_Vertical | TP9 |
| 1 | PNL_BL_PWM | PinHeader_1x01_P2.54mm_Vertical | TP10 |
| 1 | GPU_EVENT# | PinHeader_1x01_P2.54mm_Vertical | TP11 |
| 1 | VGA_DISABLE#_POS2 | PinHeader_1x01_P2.54mm_Vertical | TP12 |
| 1 | Fan_Taco | PinHeader_1x01_P2.54mm_Vertical | TP13 |
| 1 | Fan_PWM | PinHeader_1x01_P2.54mm_Vertical | TP14 |
| 1 | TH_ALERT#_POS2 | PinHeader_1x01_P2.54mm_Vertical | TP15 |
| 1 | PSU_ID | PinHeader_1x01_P2.54mm_Vertical | TP16 |
| 2 | D | D_SMA | D1, D2 |
| 2 | D_Dual_Series_CAK_Parallel | SOT-23 | D3, D4 |
| 2 | LED | LED_0603_1608Metric | D5, D6 |
| 1 | SS52-C51497 MDD | SMB_L4.6-W3.6-LS5.3-RD | D7 |
| 2 | 10UH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L1, L2 |
| 1 | 33uH | L_12x12mm_H8mm | L3 |
| 18 | 10U | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C3, C30, C34, C35, C36, C39, C40 +10 |
| 14 | 100n | C_0603_1608Metric | C2, C4, C29, C31, C32, C33, C37, C38 +6 |
| 20 | 0.1U | C_0402_1005Metric | C5, C6, C7, C8, C9, C10, C11, C12 +12 |
| 2 | 220P | C_0603_1608Metric | C21, C22 |
| 2 | 0.1U | C_0603_1608Metric | C27, C28 |
| 1 | 100U | C_Elec_6.3x7.7 | C53 |
| 1 | 220U | C_Elec_6.3x7.7 | C57 |
| 1 | 5nF | C_0603_1608Metric | C58 |
| 2 | 5.1M | R_0603_1608Metric | R1, R2 |
| 12 | 10K | R_0603_1608Metric | R3, R4, R7, R8, R11, R14, R20, R26 +4 |
| 2 | 1M | R_0603_1608Metric | R5, R6 |
| 7 | 100K | R_0603_1608Metric | R9, R10, R12, R13, R16, R21, R29 |
| 9 | 0R | R_0603_1608Metric | R15, R19, R23, R24, R25, R27, R32, R35 +1 |
| 2 | 3.4K | R_0603_1608Metric | R17, R18 |
| 3 | 1K | R_0603_1608Metric | R22, R33, R38 |
| 1 | 3.1K | R_0603_1608Metric | R37 |
Dgff immobilizer design files
The KiCad project lives in the a-little-wifi/dgff-immobilizer repository on GitHub; these links point at the commit this page was built from.
Dgff immobilizer: common questions
How big is the Dgff immobilizer PCB?
The Dgff immobilizer measures 203.7 × 69 mm, has 6 copper layers and is 1.5584 mm thick.
How many components are on the Dgff immobilizer?
159 components, from 57 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dgff immobilizer design files?
From the a-little-wifi/dgff-immobilizer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dgff immobilizer design in my own project?
The repository has no license, so all rights stay with a-little-wifi. Use it as a reference, and ask the author before reusing the design.
