About the OddPCIe PCB
OddPCIe is an open source PCB design by a-little-wifi, published on GitHub. It is a 4-layer board measuring 30.5 × 45.5 mm, with 15 components from 8 distinct parts.
Other key parts include the AP1117-33. By type, the board carries 7 capacitors, 3 connectors, 2 diodes, 2 resistors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCIe breakout for Dell Latitude laptop optical drive modular bay

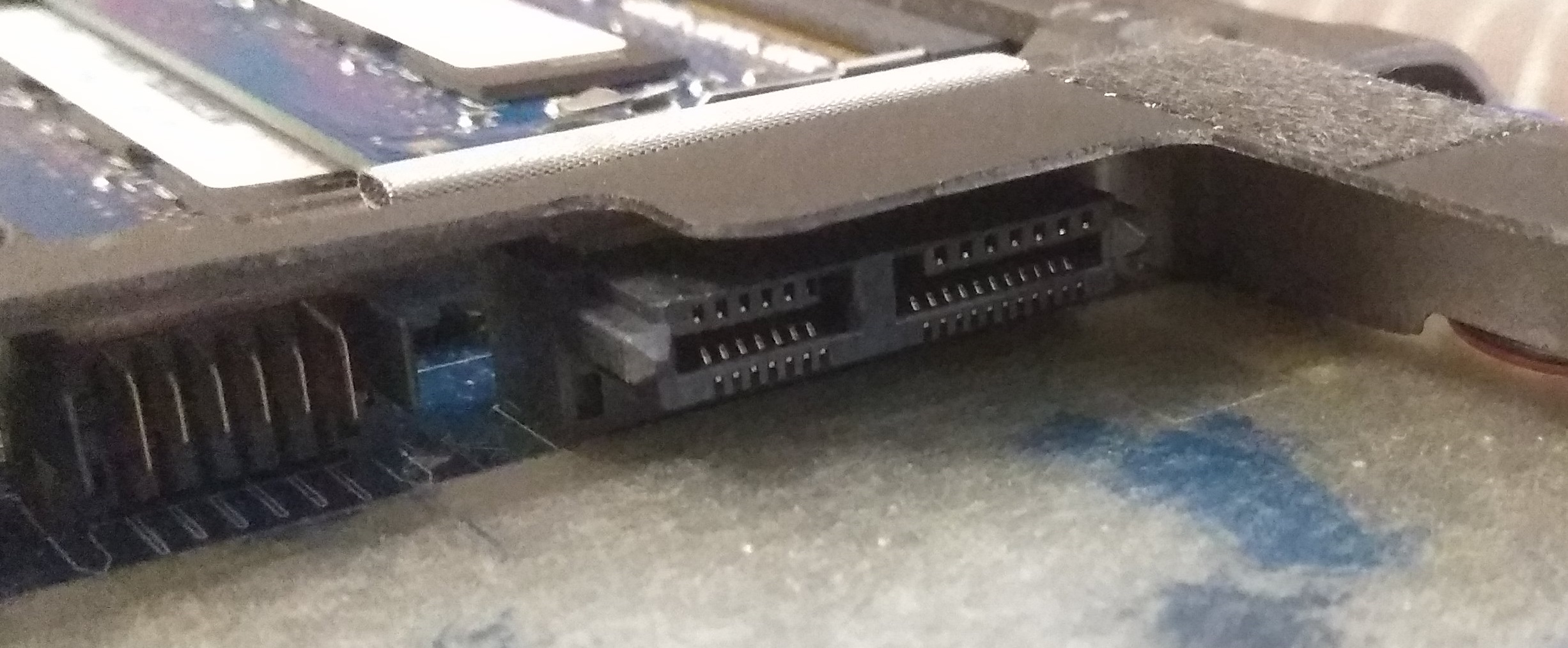

The optical drive (odd) SATA ports on a number of Dell Latitude laptops from 2011-2013 have a PCIe x1 lane hidden in them, meant for use with the AE3USB01 (DP/N P5MKF) USB 3.0 expansion module:
Note: The E6440, E6540 and M2800 don't seem to support hot-plug on this PCIe port, as they never actually shipped with anything using this port (the AE3USB01's bezel doesn't even line up with the case)
Main components on the OddPCIe
OddPCIe bill of materials (BOM)
15 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP1117-33 | SOT-223-3_TabPin2 | U1 |
| 1 | Bus_M.2_Socket_M | m-key | J1 |
| 1 | OddPCIe | OddPCIe | J2 |
| 1 | USB3_A | susb3 | J3 |
| 2 | LED | D_0805_2012Metric | D1, D2 |
| 2 | 100uF | C_0805_2012Metric | C1, C2 |
| 5 | 100nF | C_0805_2012Metric | C3, C4, C5, C6, C7 |
| 2 | 5K1 | R_0603_1608Metric | R1, R2 |
OddPCIe design files
The KiCad project lives in the a-little-wifi/oddPCIe repository on GitHub; these links point at the commit this page was built from.
OddPCIe: common questions
How big is the OddPCIe PCB?
The OddPCIe measures 30.5 × 45.5 mm, has 4 copper layers and is 4.69 mm thick.
How many components are on the OddPCIe?
15 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the OddPCIe design files?
From the a-little-wifi/oddPCIe repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the OddPCIe design in my own project?
The repository has no license, so all rights stay with a-little-wifi. Use it as a reference, and ask the author before reusing the design.
