70- keyboard

aaravs-s·70-_keyboard·pcb/75% keyboard.kicad_pcb

70- keyboard PCB layout, top view — open source RP2040/RP2350 board by aaravs-s

About the 70- keyboard PCB

70- keyboard is an open source RP2040/RP2350 PCB design by aaravs-s, published on GitHub. It is a 2-layer board measuring 310.5 × 118.4 mm, with 236 components from 8 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the 3.3V 5V Level Shifter. By type, the board carries 79 diodes, 78 switches, 74 inductors, 2 ICs and 1 module.

It belongs with the keyboards designs in this gallery.

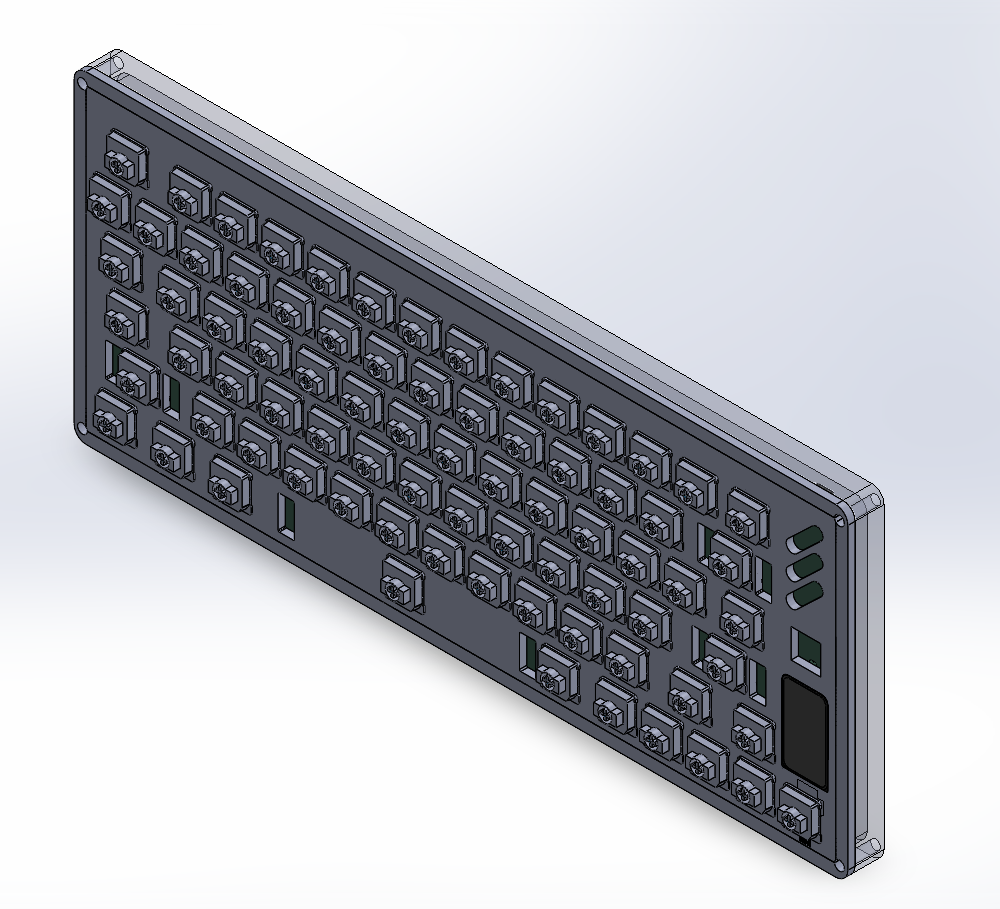

70- keyboard, from the project README
From the project README

Main components on the 70- keyboard

3.3V 5V Level ShifterRaspberryPi_Pico

70- keyboard bill of materials (BOM)

236 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
1
3.3V 5V Level Shifter
U2
1
RaspberryPi_Pico
A1
1
RotaryEncoder_Switch_MP
RE1
1
R_Potentiometer
RV1
78
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +70
79
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +71
74
WS2812B
L1, L5, L7, L8, L9, L10, L11, L12 +66

70- keyboard design files

The KiCad project lives in the aaravs-s/70-_keyboard repository on GitHub; these links point at the commit this page was built from.

70- keyboard: common questions

What microcontroller does the 70- keyboard use?

The 70- keyboard is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the 70- keyboard PCB?

The 70- keyboard measures 310.5 × 118.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 70- keyboard?

236 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 70- keyboard design files?

From the aaravs-s/70-_keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 70- keyboard design in my own project?

The repository has no license, so all rights stay with aaravs-s. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 70- keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
