Speaker
About the Speaker PCB
Speaker is an open source PCB design by AbdullahHendy, published on GitHub. It is a 2-layer board measuring 73.8 × 60.1 mm, with 28 components from 21 distinct parts.
Other key parts include the LM317_TO-220 and LM384. By type, the board carries 8 capacitors, 4 test points, 4 diodes, 4 resistors, 3 connectors and 2 ICs.
It belongs with the audio and power & battery designs in this gallery.
From the project

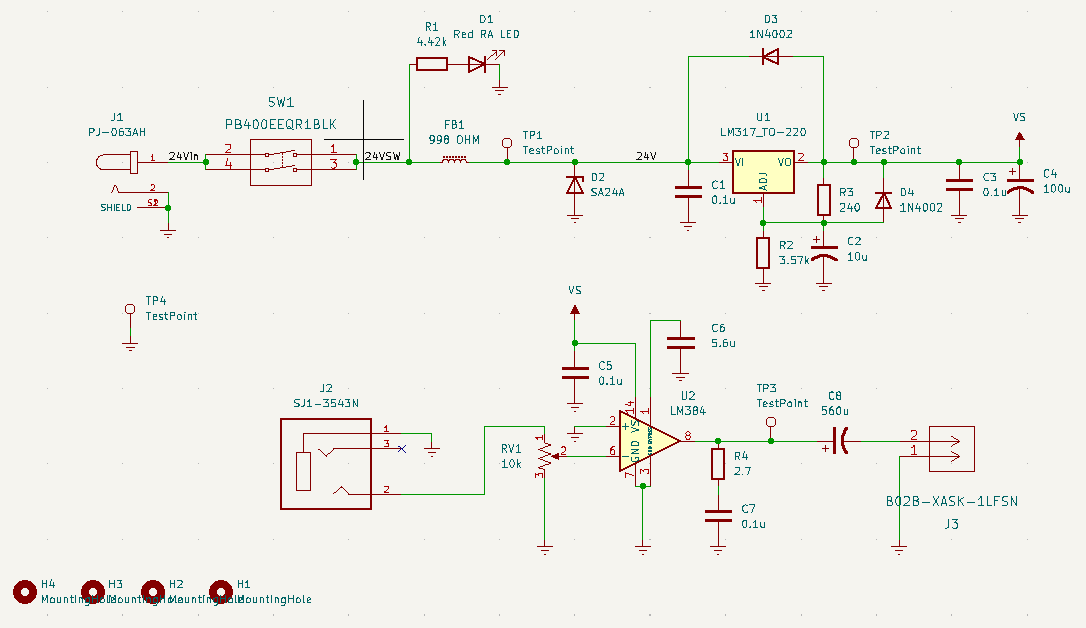

A complete design of a 5W class AB audio amplifier with a power supply circuit and a speaker. The repository includes documentation for the design and fabrication files.
Class AB Amplifier Based Speakers With a Power Supply Circuit
A complete design of a 5W class AB audio amplifier with a power supply circuit and a speaker. The repository includes documentation for the design and fabrication files.
The project was developed on Windows 10 using KiCad 6.0 The libraries for the footprints and 3D models are included under the "KiCAD Libraries" directory. Might need to import them to the project. Add symbol libraries to KiCad project Add footprint libraries to KiCad project * Add 3D models to KiCad
Main components on the Speaker
Speaker bill of materials (BOM)
28 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM317_TO-220 | TO-220-3_Vertical | U1 |
| 1 | LM384 | DIP-14_W7.62mm | U2 |
| 1 | PJ-063AH | CUI_PJ-063AH | J1 |
| 1 | SJ1-3543N | CUI_SJ1-3543N | J2 |
| 1 | B02B-XASK-1-A(LF)(SN) | B02B-XASK-1LFSN | J3 |
| 1 | 10k | PTV09A2020FA104 | RV1 |
| 1 | PB400EEQR1BLK | PB400EEQR1BLK | SW1 |
| 4 | TestPoint | TestPoint_Keystone_5000-5004_Miniature_01 | TP1, TP2, TP3, TP4 |
| 1 | Red RA LED | LED_D3.0mm_Horizontal_O1.27mm_Z6.0mm | D1 |
| 1 | SA24A | D_DO-15_P12.70mm_Horizontal | D2 |
| 2 | 1N4002 | D_DO-41_SOD81_P10.16mm_Horizontal | D3, D4 |
| 1 | 998 OHM | FB_28C0236-0EW-10 | FB1 |
| 4 | 0.1u | C_Rect_L4.0mm_W2.5mm_P2.50mm | C1, C3, C5, C7 |
| 1 | 10u | CP_Radial_D5.0mm_P2.00mm | C2 |
| 1 | 100u | CP_Radial_D6.3mm_P2.50mm | C4 |
| 1 | 5.6u | CP_Radial_D5.0mm_P2.00mm | C6 |
| 1 | 560u | CP_Radial_D10.0mm_P5.00mm | C8 |
| 1 | 4.42k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 3.57k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | 240 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2.7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
Speaker design files
The KiCad project lives in the AbdullahHendy/Speaker-PCB repository on GitHub; these links point at the commit this page was built from.
Speaker: common questions
How big is the Speaker PCB?
The Speaker measures 73.8 × 60.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Speaker?
28 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Speaker design files?
From the AbdullahHendy/Speaker-PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Speaker design in my own project?
The repository has no license, so all rights stay with AbdullahHendy. Use it as a reference, and ask the author before reusing the design.
