Alex-Harris-Capstone

achihuahua22·Alex-Harris-Capstone·capstone_cad_rev2/Senior Capstone.kicad_pcb

Alex-Harris-Capstone PCB layout, top view — open source board by achihuahua22

About the Alex-Harris-Capstone PCB

Alex-Harris-Capstone is an open source PCB design by achihuahua22, published on GitHub under the MIT license. It is a 2-layer board measuring 65.5 × 56.4 mm, with 49 components from 18 distinct parts.

Other key parts include the MAX3232CDR, 568-4016-5, SN75161BDW and SC16IS752IBS. By type, the board carries 19 resistors, 12 capacitors, 9 diodes, 5 connectors and 4 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This project builds on an-ven’s graspib project by adding more RS232 support and a UART breakout pin.

This project builds on an-ven’s graspib project by adding more RS232 support and a UART breakout pin.

Currently, this device supports UART, RS232, and GPIB.

If you want to make one yourself, the files are here

1. RS232 2. CAN (CAN-FD, etc.) 3. GPIB 4. USB 5. UART 6. HPIB 7. Ethernet

Obviously, it is not possible to develop a device to encompass every existing communication protocol, so I chose three that were most necessary to our SDL and were most feasible with the constraint of a Raspberry Pi powered device. The three protocols I chose were RS232, UART, and GPIB. I chose each of these…

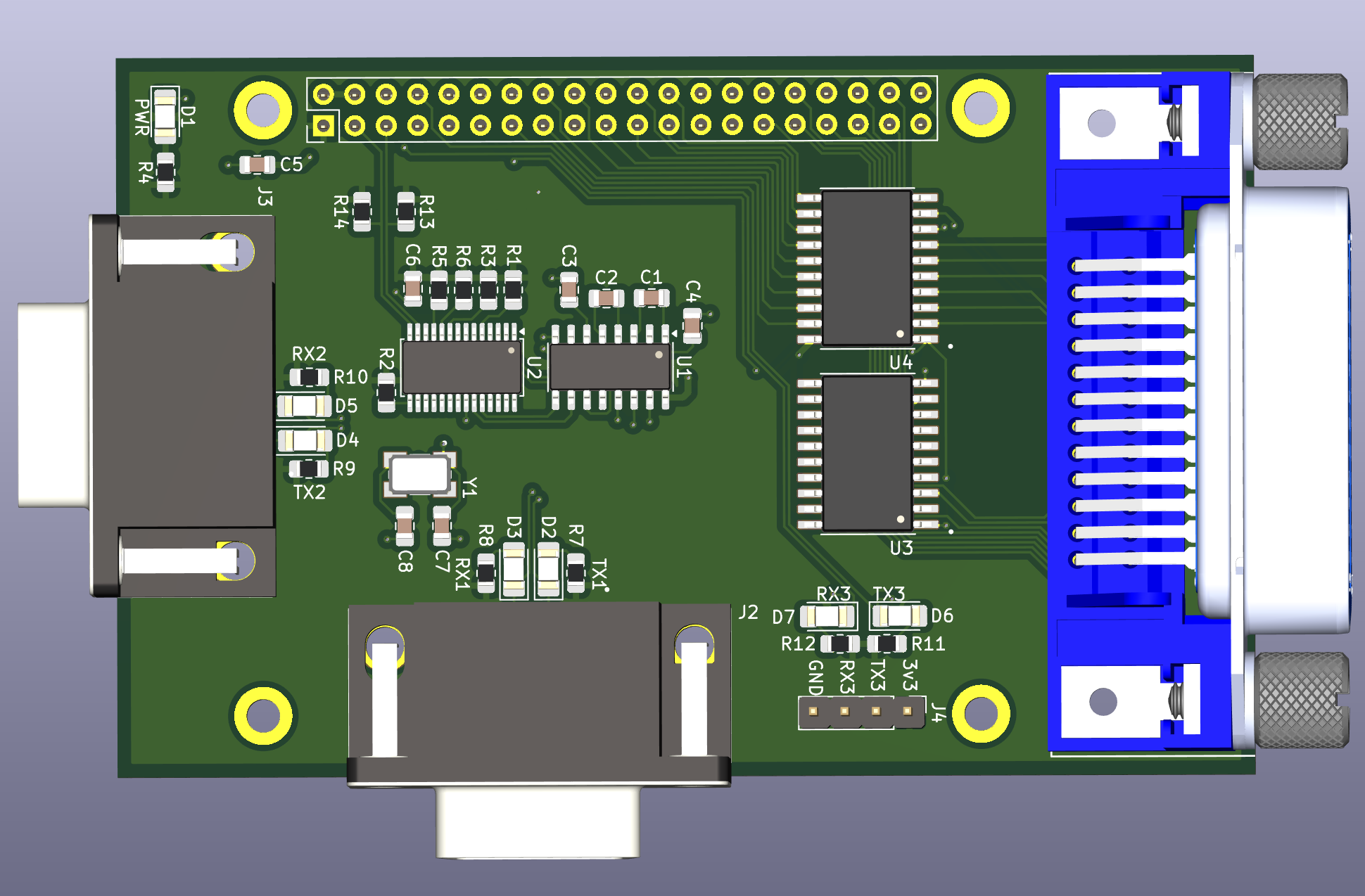

Alex-Harris-Capstone, from the project README
From the project README

Main components on the Alex-Harris-Capstone

MAX3232CDR568-4016-5SN75161BDWSC16IS752IBS

Alex-Harris-Capstone bill of materials (BOM)

49 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MAX3232CDR
SC16IS752IBS
U1
1
568-4016-5
MAX232
U2
1
SN75161BDW
MAX232
U4
1
SC16IS752IBS
U5
1
PRT-16764
GPIO
J1
2
LD09P13A4GX00LF
L77SDE09SA4CH3FC309
J2, J3
1
22284040
Conn_01x04_Pin
J4
1
CIB24SRA
Conn_01x04_Pin
J5
1
LTST-C150KRKT
PWR_LED
D1
6
LTST-C150GKT
WL-SMCW_0603
D2, D3, D4, D5, D6, D7
2
WL-SMCW_0603
D8, D9
6
08055C104J4T2A
100n
C1, C2, C3, C4, C5, C6
2
CC0805JRNPO9BN360
100n
C7, C8
4
100n
C9, C10, C11, C12
2
RMCF0805FT10K0
10k
R1, R13
11
RC0805FR-071KL
1k
R2, R3, R4, R5, R6, R7, R8, R9 +3
1
RMCF0805FT10K0
1k
R14
5
1k
R15, R16, R17, R18, R19

Alex-Harris-Capstone design files

The KiCad project lives in the achihuahua22/Alex-Harris-Capstone repository on GitHub; these links point at the commit this page was built from.

Alex-Harris-Capstone: common questions

How big is the Alex-Harris-Capstone PCB?

The Alex-Harris-Capstone measures 65.5 × 56.4 mm, has 2 copper layers and is 1.93 mm thick.

How many components are on the Alex-Harris-Capstone?

49 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Alex-Harris-Capstone design files?

From the achihuahua22/Alex-Harris-Capstone repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Alex-Harris-Capstone design in my own project?

Yes, under the terms of its MIT license, which achihuahua22 chose for the repository.
