HighSpeedUSBHub
About the HighSpeedUSBHub PCB
HighSpeedUSBHub is an open source PCB design by Acidicts, published on GitHub. It is a 4-layer board measuring 80.6 × 57 mm, with 86 components from 28 distinct parts.
Other key parts include the TUSB8041IRGCR, TPS2561DRCR, SY8089A1AAC and XC6206P332MR. By type, the board carries 50 capacitors, 18 resistors, 7 inductors, 5 ICs and 1 crystal.
From the project
I looked at an old USB 2.0 hub I made and though what if I could make a faster one? So I did(whether it works or not is another story). This started right after I discovered the texas instruments site via the guide for making a flight controller by @notaroomba.
I looked at an old USB 2.0 hub I made and though what if I could make a faster one? So I did(whether it works or not is another story). This started right after I discovered the texas instruments site via the guide for making a flight controller by @notaroomba.

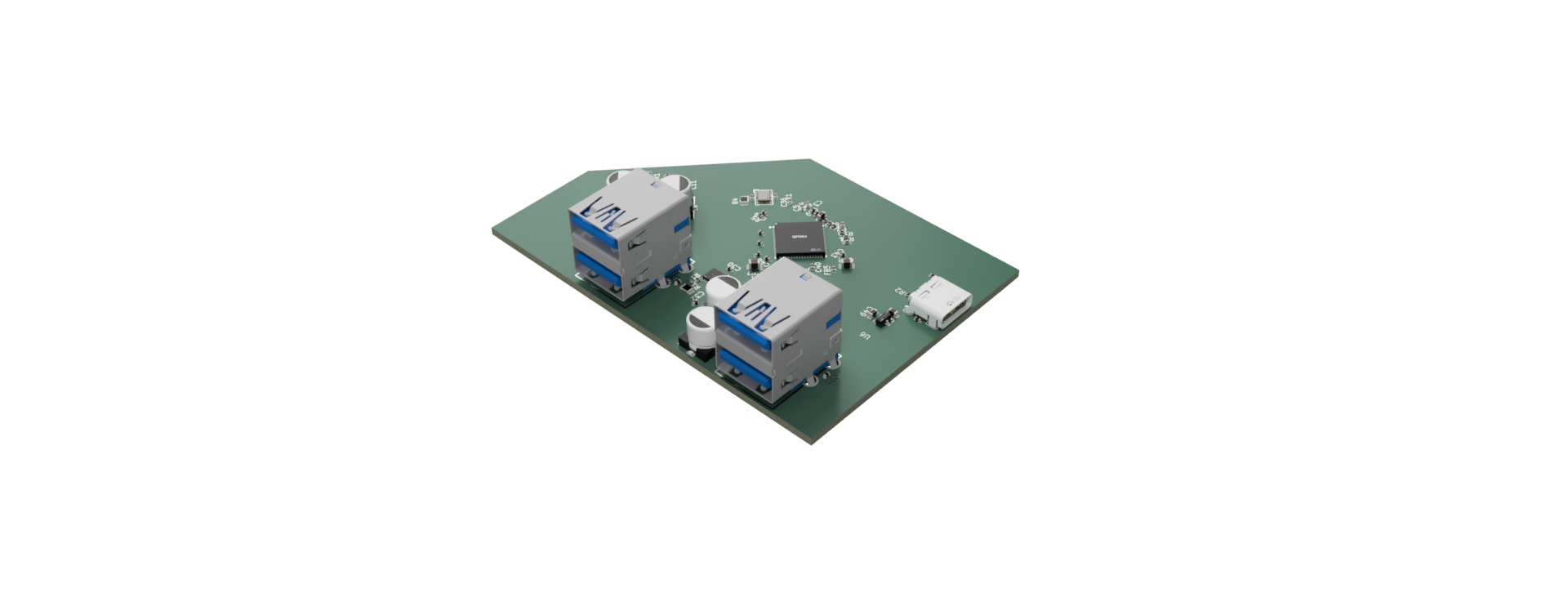

This is a USB 3.1 hub which uses a usb 3.1 gen 2 upstream port to 4 usb 3.0 downstream ports via a TUSB8041. Each USB stack (I used x2 stacked usb 3.0 ports as they were more compact, and they reminded me of the raspberry pi 4) is powered by a TPS2051B which is a power switch that has a power limit of around 1A per controller as I…
Main components on the HighSpeedUSBHub
HighSpeedUSBHub bill of materials (BOM)
86 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TUSB8041IRGCR TI(德州仪器) | QFN-64_L9.0-W9.0-P0.50-BL-EP7.2 | U1 |
| 2 | TPS2561DRCR TI(德州仪器) | VSON-10_L3.0-W3.0-P0.50-TL-EP_TPS62410DRCR | U2, U4 |
| 1 | SY8089A1AAC Silergy(矽力杰) | TSOT-23-5_L2.9-W1.6-P0.95-LS2.8-BR | U5 |
| 1 | XC6206P332MR XC6206P332MR_C5148692 HXY MOSFET(华轩阳电子) | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | U6 |
| 1 | X322524MRB4SI YXC(扬兴晶振) | CRYSTAL-SMD_4P-L3.2-W2.5-BL-2 | X1 |
| 2 | UCM1V151MCL1GS Nichicon(尼吉康) | CAP-SMD_L6.6-W6.6 | UC33, UC34 |
| 2 | HC-USB3.0-L175-2X1-P HC(虹成电子) | USB-A-TH_H181-AF2R06-12ALCR | USB1, USB2 |
| 1 | 1054500101 105450-0101 MOLEX | USB-C-SMD_TYPE-C-USB-18 | USBC1 |
| 6 | 220 @ 100MHZ | C_0402_1005Metric | FB1, FB2, FB3, FB4, FB5, FB6 |
| 1 | 2.2uH | L_Coilcraft_0403HQ_1008Metric | L1 |
| 2 | 18pF | C_0402_1005Metric | C1, C2 |
| 3 | 1uF | C_0603_1608Metric | C3, C48, C49 |
| 34 | 0.1uF | C_0402_1005Metric | C4, C5, C7, C9, C10, C11, C12, C13 +26 |
| 1 | 10uF | C_0402_1005Metric | C6 |
| 3 | 0.001uF | C_0402_1005Metric | C8, C21, C25 |
| 3 | 10uF | C_0805_2012Metric | C42, C47, C50 |
| 1 | 22pF | C_0402_1005Metric | C51 |
| 1 | 10uF/10V | C_0402_1005Metric | C52 |
| 2 | UCM1V151MCL1GS Nichicon(尼吉康) | CAP-SMD_L6.6-W6.6 | C53, C54 |
| 2 | 61.9k | R_0805_2012Metric | R1, R12 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 5.1k | R_0402_1005Metric | R2, R3 |
| 1 | 1M | R_0805_2012Metric | R4 |
| 1 | 9.53k | R_0402_1005Metric | R5 |
| 4 | 4.7k | R_0402_1005Metric | R6, R7, R10, R11 |
| 1 | 90.9k | R_0402_1005Metric | R8 |
| 5 | 10k | R_0402_1005Metric | R9, R13, R14, R15, R16 |
| 1 | 41.2k | R_0402_1005Metric | R17 |
| 1 | 49.9k | R_0603_1608Metric | R18 |
HighSpeedUSBHub design files
The KiCad project lives in the Acidicts/HighSpeedUSBHub repository on GitHub; these links point at the commit this page was built from.
HighSpeedUSBHub: common questions
How big is the HighSpeedUSBHub PCB?
The HighSpeedUSBHub measures 80.6 × 57 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the HighSpeedUSBHub?
86 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the HighSpeedUSBHub design files?
From the Acidicts/HighSpeedUSBHub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the HighSpeedUSBHub design in my own project?
The repository has no license, so all rights stay with Acidicts. Use it as a reference, and ask the author before reusing the design.
