Stm32f407VGTx dev board-PCB-

Adamos-khalilos·stm32f407VGTx-dev-board-PCB-

Stm32f407VGTx dev board-PCB- layout, top view — open source STM32 board by Adamos-khalilos

About the Stm32f407VGTx dev board-PCB-

Stm32f407VGTx dev board-PCB- is an open source STM32 PCB design by Adamos-khalilos, published on GitHub under the MIT license. It is a 2-layer board measuring 80 × 100 mm, with 56 components from 31 distinct parts.

Its main chip is the STM32F407VGTx, from the STM32 family. Other key parts include the USBLC6-2P6 and LP5907MFX-3.3. By type, the board carries 22 capacitors, 16 resistors, 5 diodes, 4 connectors, 3 ICs and 2 switches.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

A custom STM32F407VGTx development board featuring a microSD card slot, SWD debug header, wake-up button, RGB status LEDs, and a clean decoupled power supply. Designed entirely in KiCad.

A custom STM32F407VGTx development board featuring USB-C power/data, a microSD card slot, SWD debugging, a wake-up button, RGB status LEDs, and a clean regulated power supply. Designed entirely in KiCad.

- MCU: STM32F407VGTx (ARM Cortex-M4, up to 168 MHz) - USB: USB-C receptacle (USB 2.0) with ESD protection (USBLC6-2P6) and BOOT0 select button - Power: 5V → 3.3V regulation via LP5907MFX-3.3 LDO, decoupled with a full capacitor array on VDD/VDDA - Storage: microSD card socket with dedicated pull-ups on DAT0–3/CMD/CLK and card-detect pins - Debug: SWD header (Tag-Connect TC2030-NL footprint)…

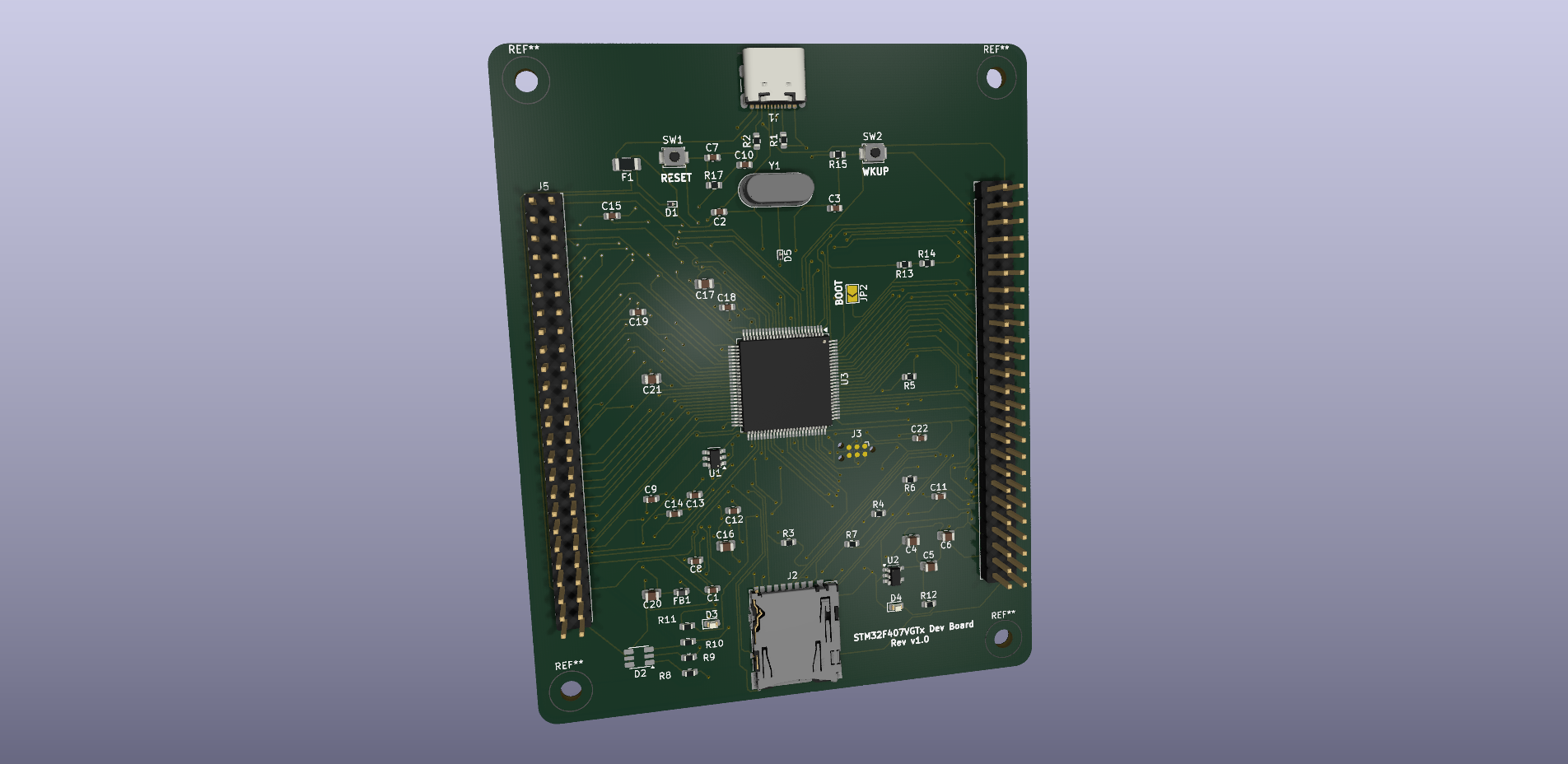

Stm32f407VGTx dev board-PCB-, from the project README
From the project README

Main components on the Stm32f407VGTx dev board-PCB-

USBLC6-2P6LP5907MFX-3.3STM32F407VGTx

Stm32f407VGTx dev board-PCB- bill of materials (BOM)

56 components, 31 distinct parts.

QtyPartRefs
1
USBLC6-2P6
U1
1
LP5907MFX-3.3
U2
1
STM32F407VGTx
U3
1
8MHz
Y1
1
USB_C_Receptacle_USB2.0_14P
J1
1
Micro_SD_Card_Det2
J2
2
Conn_02x25_Odd_Even
J4, J5
1
Polyfuse
F1
1
Jumper_2_Open
JP2
2
SW_Push
SW1, SW2
1
SM5059
D1
1
SMLVN6RGB
D2
1
D
D3
1
LED
D4
1
SZESD9B5.0ST5G
D5
1
120R
FB1
8
100nF
C1, C8, C9, C10, C11, C12, C14, C15
2
27pF
C2, C3
2
10uF
C4, C6
1
22uF
C5
Show 11 more
QtyPartRefs
1
10nF
C7
2
2.2uF
C13, C22
1
4.7uF
C16
3
4.7 u
C17, C20, C21
2
100 P
C18, C19
2
5k1
R1, R2
6
10k
R3, R4, R5, R6, R7, R14
4
330
R8, R9, R10, R11
1
550
R12
1
510
R13
2
10 K
R15, R17

Stm32f407VGTx dev board-PCB- design files

The KiCad project lives in the Adamos-khalilos/stm32f407VGTx-dev-board-PCB- repository on GitHub; these links point at the commit this page was built from.

Stm32f407VGTx dev board-PCB-: common questions

What microcontroller does the Stm32f407VGTx dev board-PCB- use?

The Stm32f407VGTx dev board-PCB- is built around the STM32F407VGTx, from the STM32 family.

How big is the Stm32f407VGTx dev board-PCB-?

The Stm32f407VGTx dev board-PCB- measures 80 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32f407VGTx dev board-PCB-?

56 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32f407VGTx dev board-PCB- design files?

From the Adamos-khalilos/stm32f407VGTx-dev-board-PCB- repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stm32f407VGTx dev board-PCB- design in my own project?

Yes, under the terms of its MIT license, which Adamos-khalilos chose for the repository.

Can I test firmware for the Stm32f407VGTx dev board-PCB- without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
