About the Torrent-LED-Light-Bar-Controller PCB

Torrent-LED-Light-Bar-Controller is an open source PCB design by adessein, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 68.6 × 63.5 mm, with 22 components from 14 distinct parts.

Other key parts include the WeMos_mini, 74HC595, ULN2803A, LM7805_TO220 and LD1117S33TR_SOT223. By type, the board carries 8 capacitors, 7 ICs, 3 connectors, 3 resistors and 1 diode.

It belongs with the iot & wireless designs in this gallery.

From the project

Wifi module to control Torrent LED Light Bar

The purpose of this project is to create a system for the user to be able to control the light bar wirelessly, using his smartphone.

According to the manual the bar is controlled by 15 wires. The voltage at these wires should either be 0 or 12V, respectively low and high level. Some wires should be hold at high level continuously of activating functions, more advanced ones requires mode selection by tapping several times on the wire (sending 12V pulses).

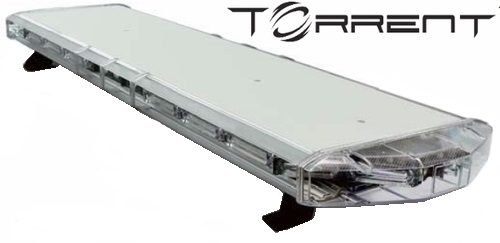

Torrent-LED-Light-Bar-Controller, from the project README
From the project README

Main components on the Torrent-LED-Light-Bar-Controller

WeMos_mini74HC595ULN2803ALM7805_TO220LD1117S33TR_SOT223

Torrent-LED-Light-Bar-Controller bill of materials (BOM)

22 components, 14 distinct parts.

QtyPartRefs
1
WeMos_mini
U1
2
74HC595
U2, U3
2
ULN2803A
U4, U5
1
LM7805_TO220
U6
1
LD1117S33TR_SOT223
U7
2
Screw_Terminal_01x08
J1, J2
1
Screw_Terminal_01x02
J3
1
LED
D1
2
0.1u
C1, C2
3
100n
C3, C4, C5
1
10u
C6
2
100u
C7, C8
1
68
R1
2
10k
RN1, RN2

Torrent-LED-Light-Bar-Controller design files

The KiCad project lives in the adessein/Torrent-LED-Light-Bar-Controller repository on GitHub; these links point at the commit this page was built from.

Torrent-LED-Light-Bar-Controller: common questions

How big is the Torrent-LED-Light-Bar-Controller PCB?

The Torrent-LED-Light-Bar-Controller measures 68.6 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Torrent-LED-Light-Bar-Controller?

22 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Torrent-LED-Light-Bar-Controller design files?

From the adessein/Torrent-LED-Light-Bar-Controller repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Torrent-LED-Light-Bar-Controller design in my own project?

Yes, under the terms of its GPL-3.0 license, which adessein chose for the repository.
