Rp2350b minimal board

Adidez·rp2350b-minimal-board·design/RP2350_80QFN_minimal.kicad_pcb

Rp2350b minimal board layout, top view — open source RP2040/RP2350 board by Adidez
Simulate this board

About the Rp2350b minimal board

Rp2350b minimal board is an open source RP2040/RP2350 PCB design by Adidez, published on GitHub. It is a 2-layer board measuring 52 × 71.5 mm, with 45 components from 21 distinct parts.

Its main chip is the RP2350B A4, from the RP2040/RP2350 family. Other key parts include the NCP1117ST33T3G and W25Q128JVSIQ. By type, the board carries 22 capacitors, 11 resistors, 4 ICs, 4 connectors, 2 switches and 1 crystal.

From the project

A Raspberry Pi RP2350B (QFN-80) minimal development board, taken from the official reference design to a fab-ready, evidence-verified state by a gated, evidence-first hardware pipeline with a human decision at every gate.

A Raspberry Pi RP2350B (QFN-80) minimal development board, taken from the official reference design to a fab-ready, evidence-verified state by a gated, evidence-first hardware pipeline with a human decision at every gate.

Top view — checks/pcbtop.png · Bottom — checks/pcbbottom.png · Schematic PDF — checks/schematic_review.pdf

Two ways: 1. No git needed: download RP2350Bminimalkicadproject.zip (or the repo ZIP via Code ▾ → Download ZIP), unzip, then double-click design/RP235080QFNminimal.kicadpro. 2. git clone https://github.com/Adidez/rp2350b-minimal-board && open…

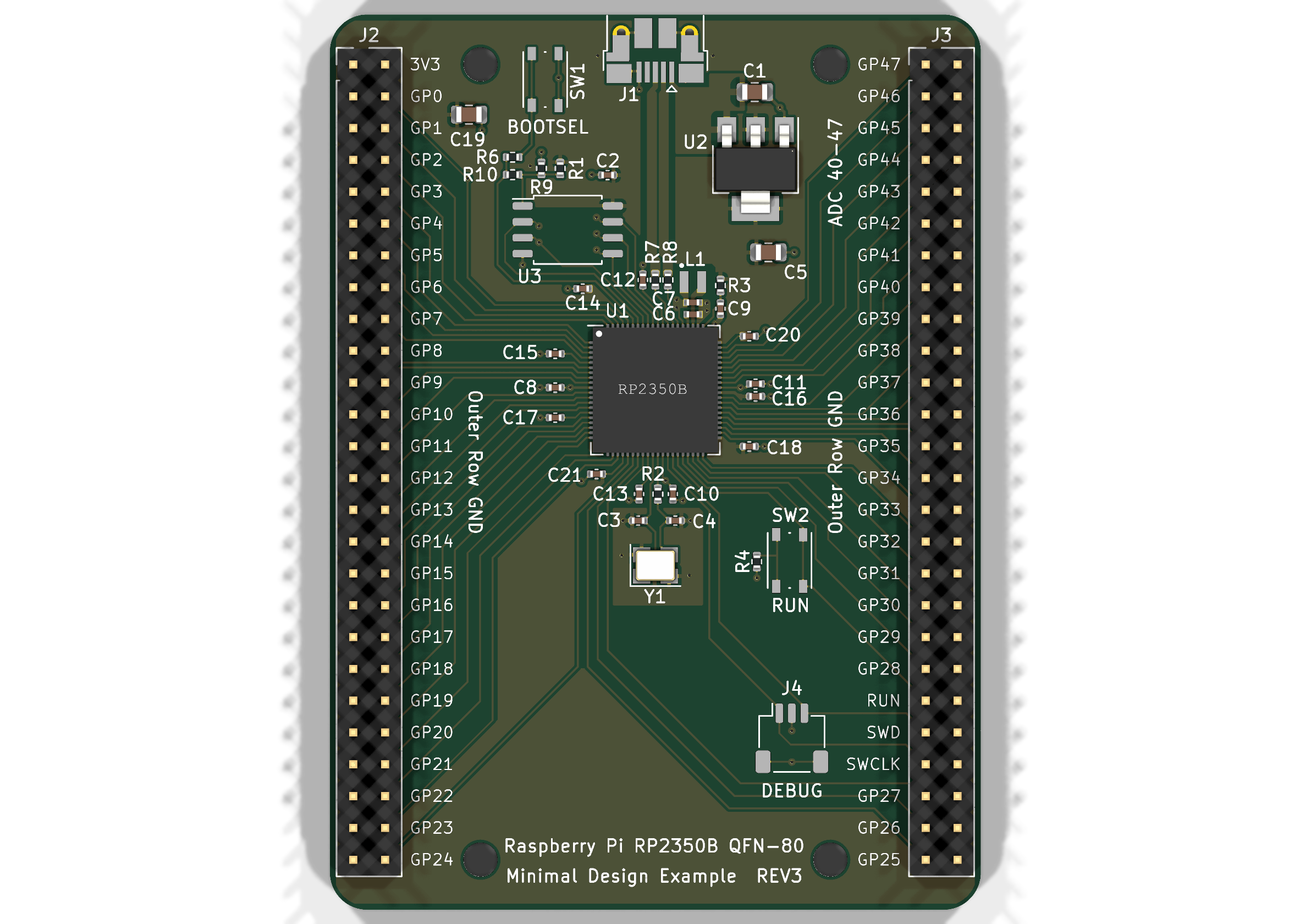

Rp2350b minimal board, from the project README
From the project README

Main components on the Rp2350b minimal board

RP2350B A4NCP1117ST33T3GW25Q128JVSIQ

Rp2350b minimal board bill of materials (BOM)

45 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2350B A4
RP2350_80QFN
U1
1
NCP1117ST33T3G
NCP1117-3.3_SOT223
U2
1
W25Q128JVSIQ
W25Q128JVS
U3
1
DNF
U4
1
ABM8-272-T3
Y1
1
10103594-0001LF
USB_B_Micro
J1
2
X6521WV-2x26H-C60D30
Conn_02x26_Odd_Even
J2, J3
1
SM03B-SRSS-TB(LF)(SN)
SM03B-SRSS-TB
J4
2
SKRPACE010
SW_Push
SW1, SW2
1
AOTA-B201610S3R3-101-T
3.3u
L1
3
CL21A106KAYNNNE
10u
C1, C5, C19
12
CL05B104KO5NNNC
100n
C2, C8, C11, C12, C13, C14, C15, C16 +4
2
0402CG150J500NT
15p
C3, C4
2
CL05A475MP5NRNC
4.7u
C6, C7
2
CL05A475MP5NRNC
4.7u
C9, C10
1
DNF
C22
4
DNF
R1, R9, R11, R13
3
0402WGF1001TCE
1k
R2, R4, R6
1
0402WGF330JTCE
33
R3
2
0402WGF270JTCE
27
R7, R8
Show 1 more
QtyPartRefs
1
0402WGF0000TCE
0
R10

Rp2350b minimal board design files

The KiCad project lives in the Adidez/rp2350b-minimal-board repository on GitHub; these links point at the commit this page was built from.

Rp2350b minimal board: common questions

What microcontroller does the Rp2350b minimal board use?

The Rp2350b minimal board is built around the RP2350B A4, from the RP2040/RP2350 family.

How big is the Rp2350b minimal board?

The Rp2350b minimal board measures 52 × 71.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rp2350b minimal board?

45 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rp2350b minimal board design files?

From the Adidez/rp2350b-minimal-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rp2350b minimal board design in my own project?

The repository has no license, so all rights stay with Adidez. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rp2350b minimal board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
