AethelVeritas·Quaero·PCB/Quaero.kicad_pcb

Quaero PCB layout, top view — open source RP2040/RP2350 board by AethelVeritas

About the Quaero PCB

Quaero is an open source RP2040/RP2350 PCB design by AethelVeritas, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 312.5 × 136 mm, with 119 components from 9 distinct parts.

Its main chip is the RP2040_Zero, from the RP2040/RP2350 family. By type, the board carries 56 switches, 56 diodes, 3 inductors and 3 resistors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

A sleek, budget friendly ergonomic low profile keyboard with potential trackpad and OLED support.

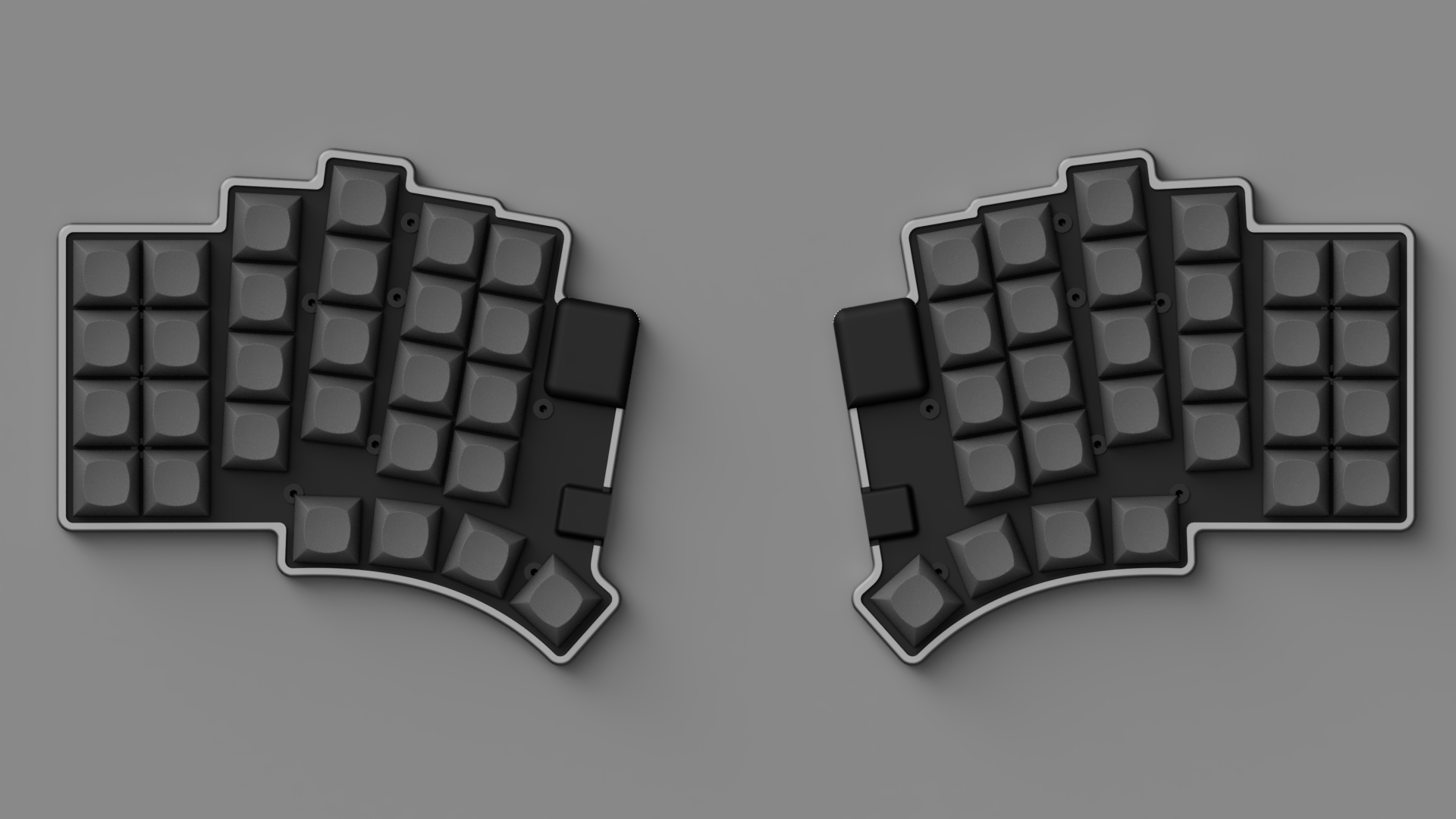

Quaero, from the project README
From the project README

Quaero bill of materials (BOM)

119 components, 9 distinct parts.

QtyPartRefs
56
Keyswitch
S1, S2, S3, S4, S5, S6, S7, S8 +48
1
VAL**
mouse-bite-5mm-slot
56
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +48
1
RP2040_Zero
L-MCU1
1
OLED_128x32
L-OLED1
1
USB_C_Receptacle_USB2.0_16P
L-USB1
1
RP2040_Zero
R-MCU1
1
OLED_128x32
R-OLED1
1
USB_C_Receptacle_USB2.0_16P
R-USB1

Quaero design files

The KiCad project lives in the AethelVeritas/Quaero repository on GitHub; these links point at the commit this page was built from.

Quaero: common questions

What microcontroller does the Quaero use?

The Quaero is built around the RP2040_Zero, from the RP2040/RP2350 family.

How big is the Quaero PCB?

The Quaero measures 312.5 × 136 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Quaero?

119 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Quaero design files?

From the AethelVeritas/Quaero repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Quaero design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which AethelVeritas chose for the repository.

Can I test firmware for the Quaero without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
