Diyosc

agkaminski·hw_projects·DIYosc/diyosc.kicad_pcb

Diyosc PCB layout, top view — open source board by agkaminski

About the Diyosc PCB

Diyosc is an open source PCB design by agkaminski, published on GitHub. It is a 2-layer board measuring 12.7 × 20.3 mm, with 7 components from 5 distinct parts.

Other key parts include the 74HC00. By type, the board carries 3 resistors, 2 capacitors, 1 IC and 1 crystal.

From the project

Various hardware projects that do not deserve their own repository.

I thought I had integrated 8 MHz DIP-14 oscillator, turned out I did not. It also proved not that easy to buy. But I had 8 MHZ HC49-SD crystals, so I decided to design a replacement. This PCB should allow usage of pretty much whichever crystal, but R1, R2, C1 and C2 should be picked accordingly.

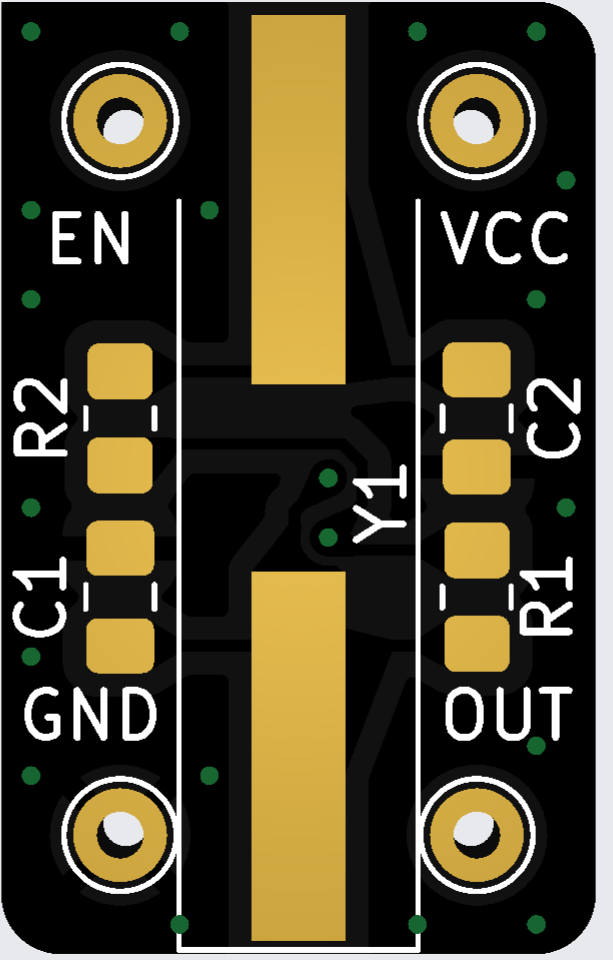

Diyosc, from the project README
From the project README

Main components on the Diyosc

74HC00

Diyosc bill of materials (BOM)

7 components, 5 distinct parts.

QtyPartRefs
1
74HC00
U1
1
Crystal
Y1
2
22p
C1, C2
1
1M
R1
2
100K
R2, R3

Diyosc design files

The KiCad project lives in the agkaminski/hw_projects repository on GitHub; these links point at the commit this page was built from.

Diyosc: common questions

How big is the Diyosc PCB?

The Diyosc measures 12.7 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Diyosc?

7 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Diyosc design files?

From the agkaminski/hw_projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Diyosc design in my own project?

The repository has no license, so all rights stay with agkaminski. Use it as a reference, and ask the author before reusing the design.
